Key Features

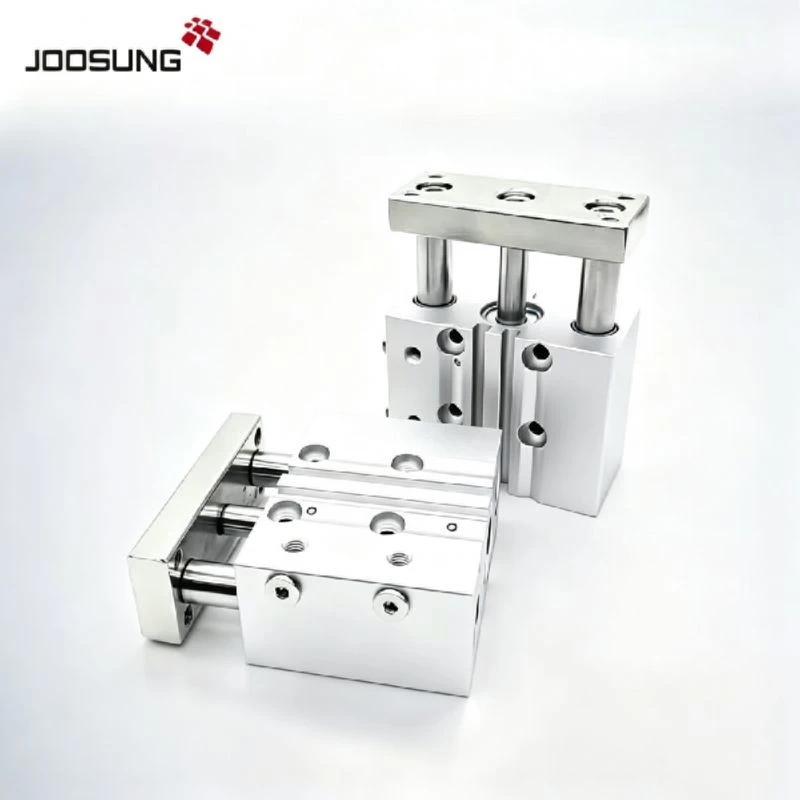

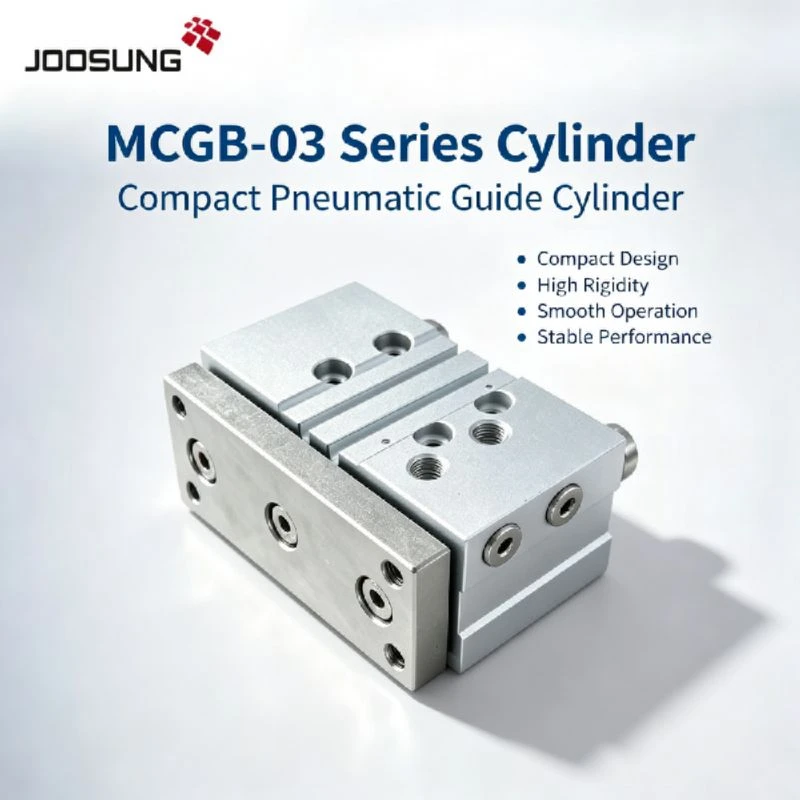

• MCGB-03-20-20 20 mm bore, 20 mm stroke, double acting with NBR cushioning
• The 20 mm stroke and 20 mm bore of this MCGB model suit automated work cells where lowering and raising of light fixtures needs holds repeatable position accuracy.

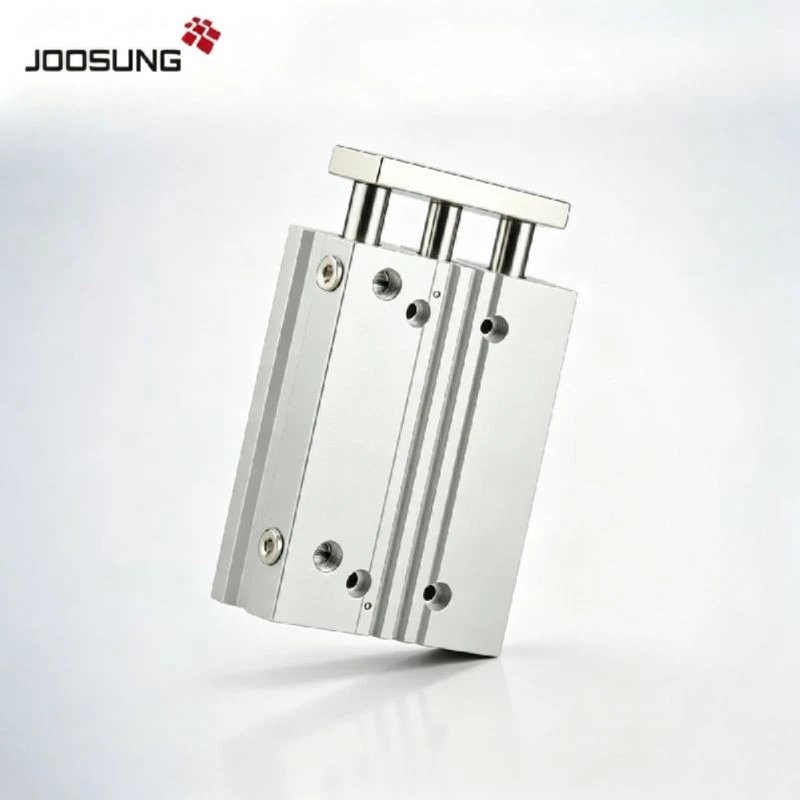

• Guide rods and piston move as one unit for stable travel
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Produced on demand with OEM/ODM and wholesale packaging available
Wide Application Scenarios
• Cosmetic filling lines
• Laboratory automation instruments
• Battery manufacturing stations
Common Inquiries
Q: Do you provide samples before bulk orders?
A: Yes, samples are available first; sample cost is refundable against the bulk order.
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Q: Are these direct replacements for standard MCGB-03 parts?
A: Yes, identical mounting dimensions and port layout for direct replacement.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-20-20 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
20 mm |
|
Stroke |
20 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
