Key Features
• MCGB-03-16-30 16 mm bore, 30 mm stroke, double acting with NBR cushioning
• The 30 mm stroke and 16 mm bore of this MCGB model suit test rigs where lowering and raising of light fixtures needs keeps the plate square under side load.

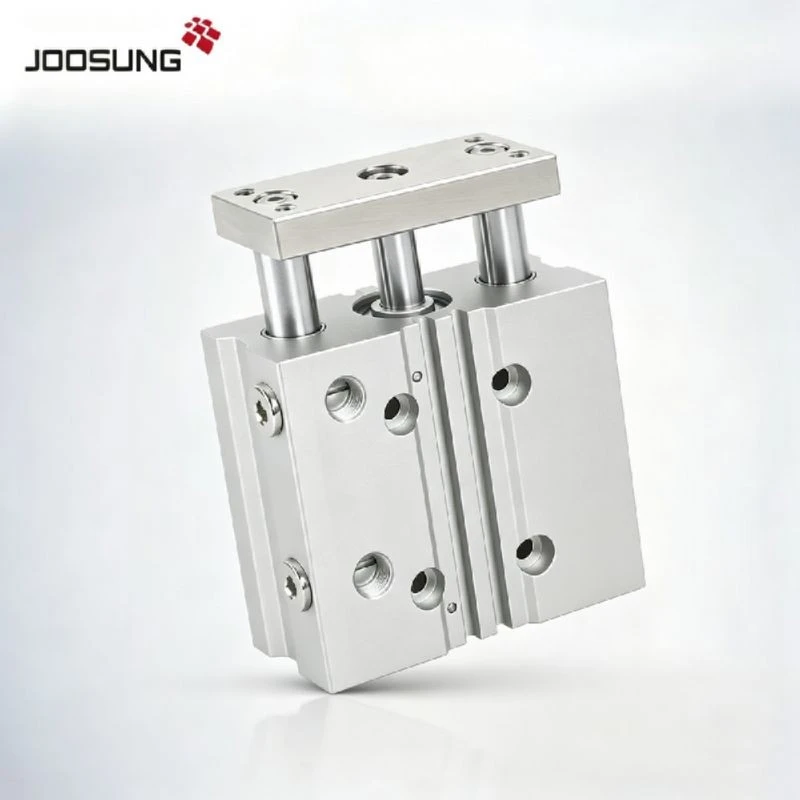

• Guide rods and piston move as one unit for stable travel
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Bulk production available with OEM/ODM terms for distributors
Wide Application Scenarios
• Printing and converting equipment
• Pharmaceutical packaging equipment
• Semiconductor handling equipment
Common Inquiries
Q: Do you provide samples before bulk orders?
A: Yes, samples are available first; sample cost is refundable against the bulk order.
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Q: Are these direct replacements for standard MCGB-03 parts?
A: Yes, identical mounting dimensions and port layout for direct replacement.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-16-30 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
16 mm |
|
Stroke |
30 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
