Key Features

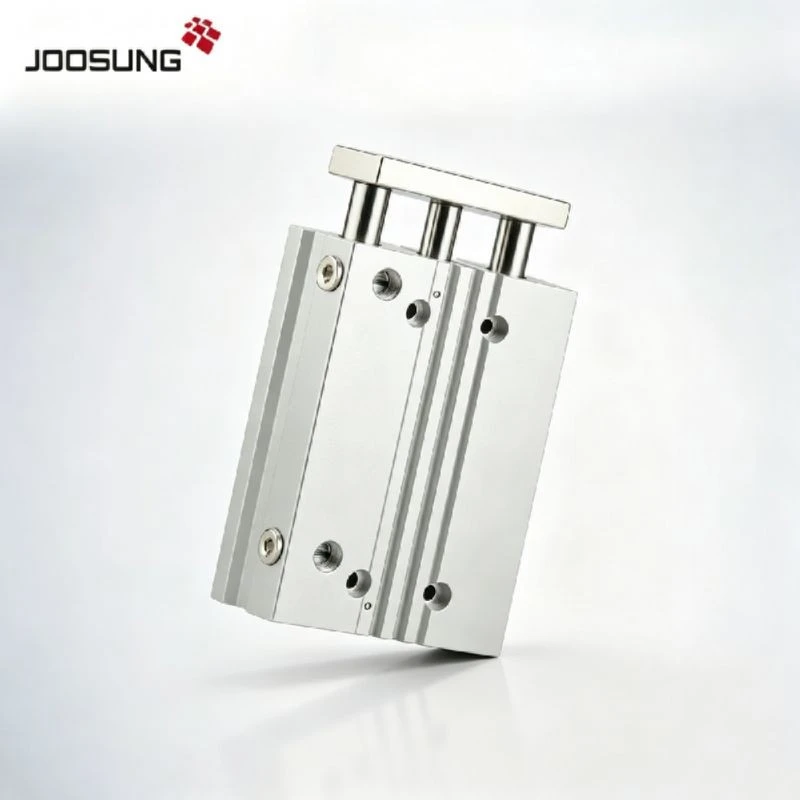

• MCGB-03-12-75 12 mm bore, 75 mm stroke, double acting with NBR cushioning
• Used mainly for pusher and ejector tasks in benchtop machines, the 12 mm bore, 75 mm stroke MCGB-03 moves without stick-slip at low speeds.

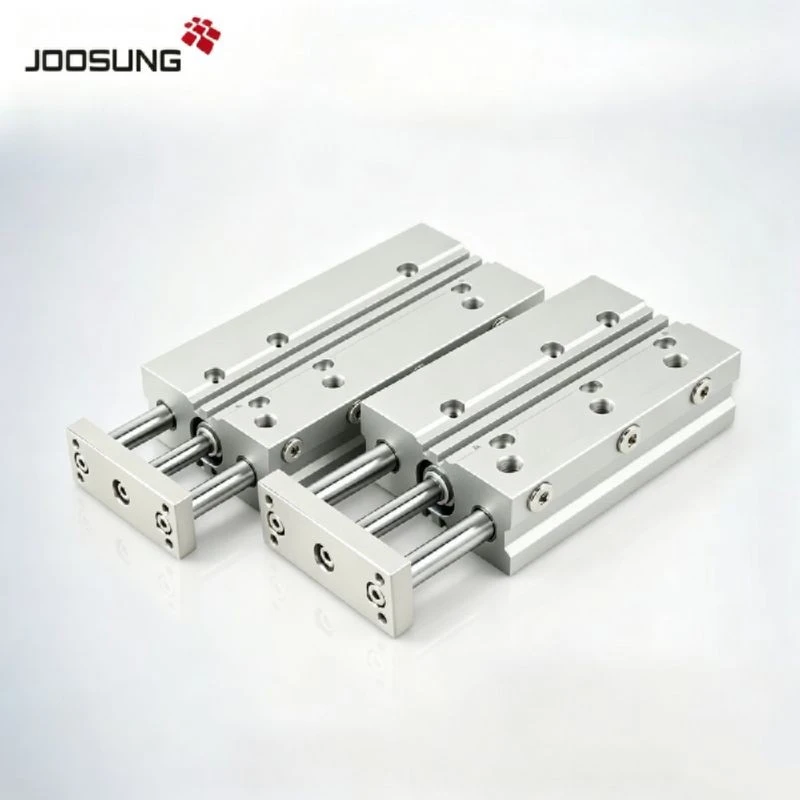

• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Four grooves accept embedded reed or solid state switches; magnetic piston included
• Manufactured on demand with wholesale and OEM/ODM support
Wide Application Scenarios
• Textile machinery
• Electronics assembly lines
• Medical device assembly
Common Inquiries
Q: Do you have a full series catalog?
A: The complete MCGB series catalog with drawings is available on request.
Q: Do you provide samples before bulk orders?
A: Yes, samples are available first; sample cost is refundable against the bulk order.
Q: How do you ship orders?
A: By sea, air or express (DHL/UPS/FedEx), freight prepaid or collect.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-12-75 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
12 mm |
|
Stroke |
75 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
