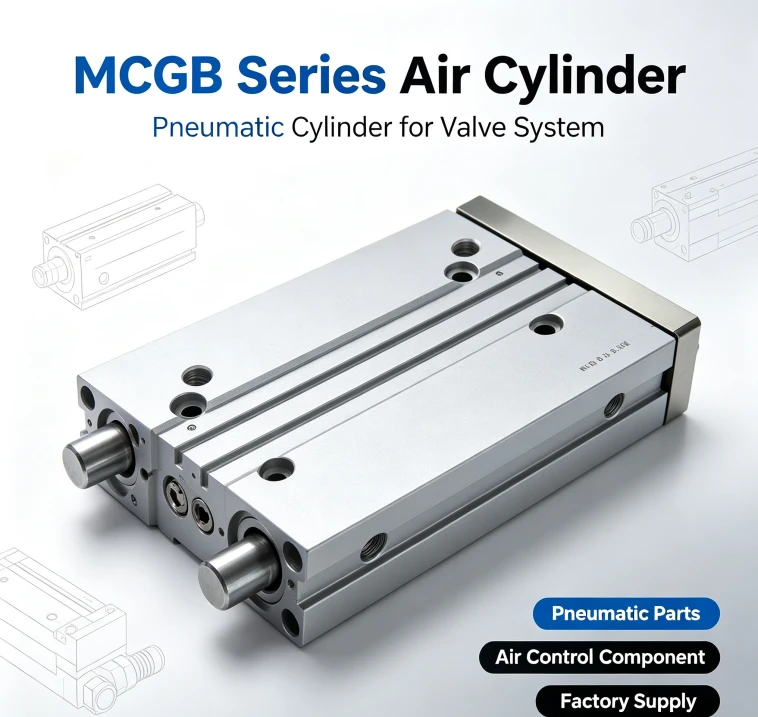

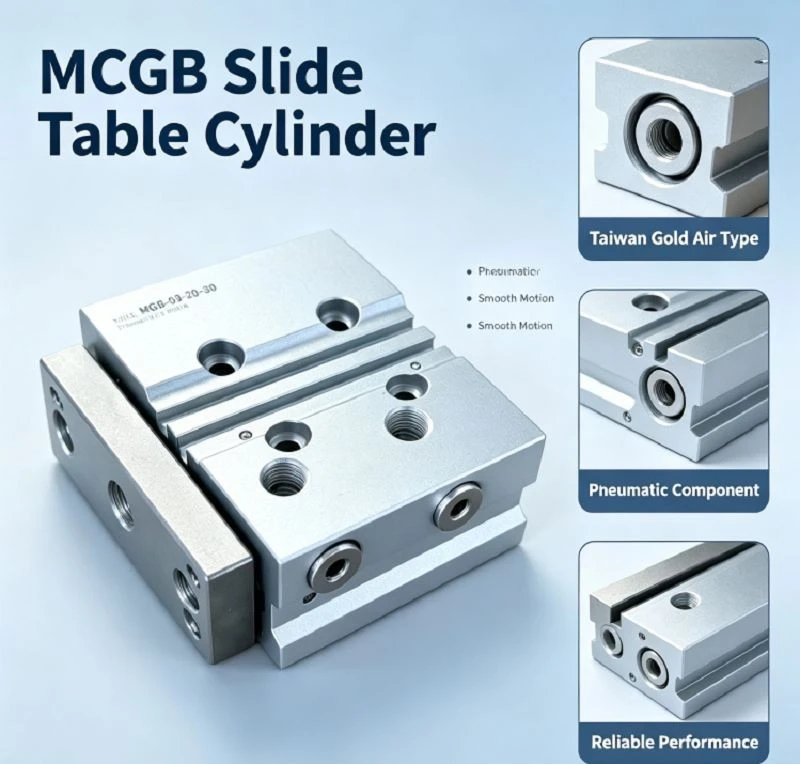

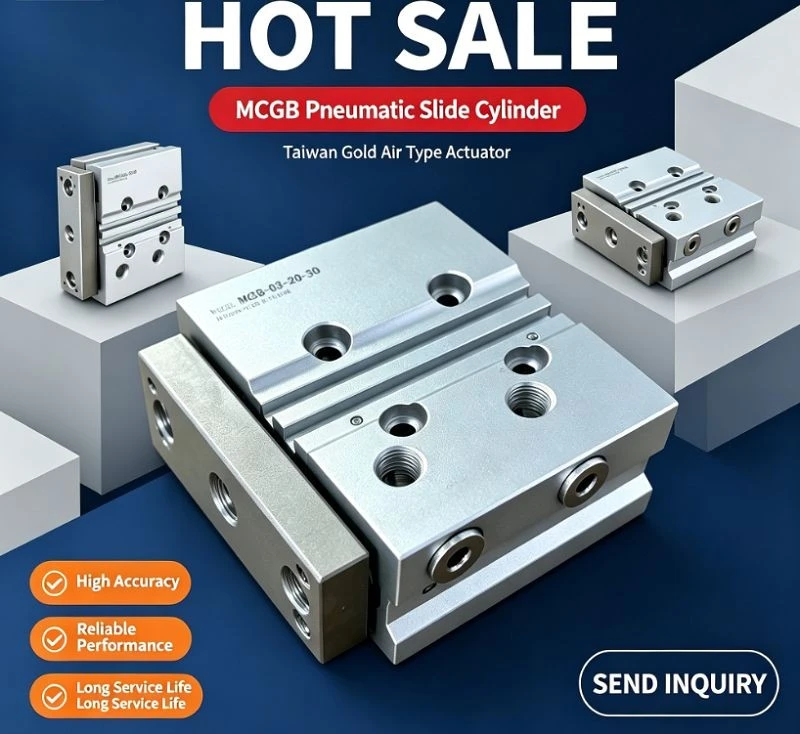

Key Features
• MCGB-03-20-25 20 mm bore, 25 mm stroke, double acting with NBR cushioning
• Typical installations include inspection equipment at pharmaceutical packaging plants, where the 20 mm bore provides light pick-and-place duties over the 25 mm stroke with moves without stick-slip at low speeds.
• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Bulk production available with OEM/ODM terms for distributors
Wide Application Scenarios
• Food processing machinery
• Semiconductor handling equipment
• Laboratory automation instruments
Common Inquiries
Q: How do you ship orders?
A: By sea, air or express (DHL/UPS/FedEx), freight prepaid or collect.
Q: Are these direct replacements for standard MCGB-03 parts?
A: Yes, identical mounting dimensions and port layout for direct replacement.
Q: Can the stroke or model be customized?
A: Custom strokes and OEM/ODM versions are available on request.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-20-25 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
20 mm |
|
Stroke |
25 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
