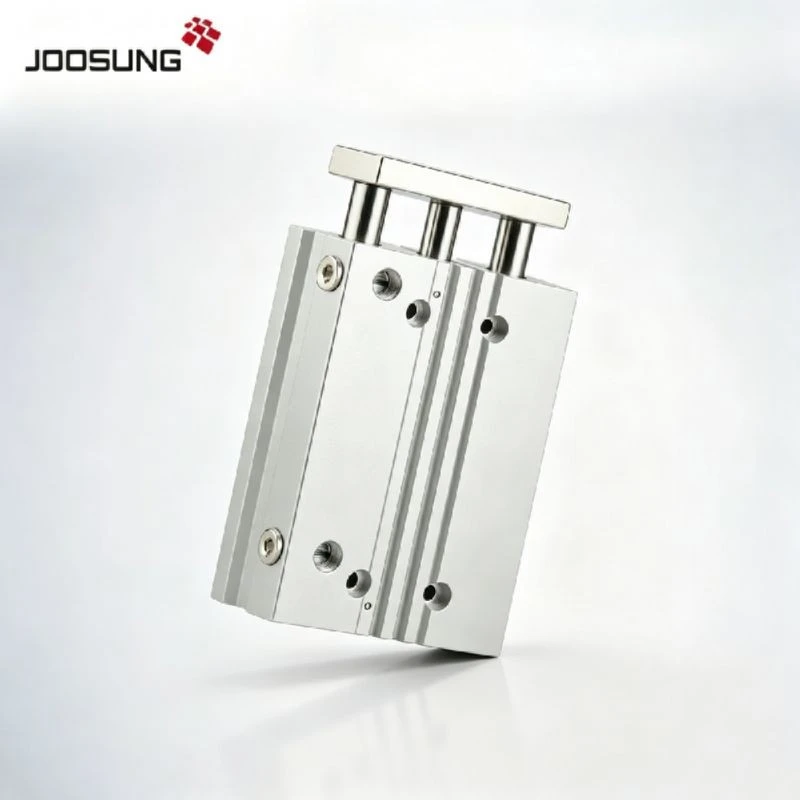

Key Features
• MCGB-03-12-30 12 mm bore, 30 mm stroke, double acting with NBR cushioning
• Used mainly for guided transfer of small parts in test rigs, the 12 mm bore, 30 mm stroke MCGB-03 keeps the plate square under side load.
• Guide rods and piston move as one unit for stable travel
• Four grooves accept embedded reed or solid state switches; magnetic piston included
• Produced on demand with OEM/ODM and wholesale packaging available
Wide Application Scenarios
• Printing and converting equipment
• Pharmaceutical packaging equipment
• Semiconductor handling equipment
Common Inquiries
Q: Can the stroke or model be customized?
A: Custom strokes and OEM/ODM versions are available on request.
Q: How are the cylinders packed?
A: Export cartons with foam protection; custom packaging available.
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-12-30 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
12 mm |
|
Stroke |
30 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
