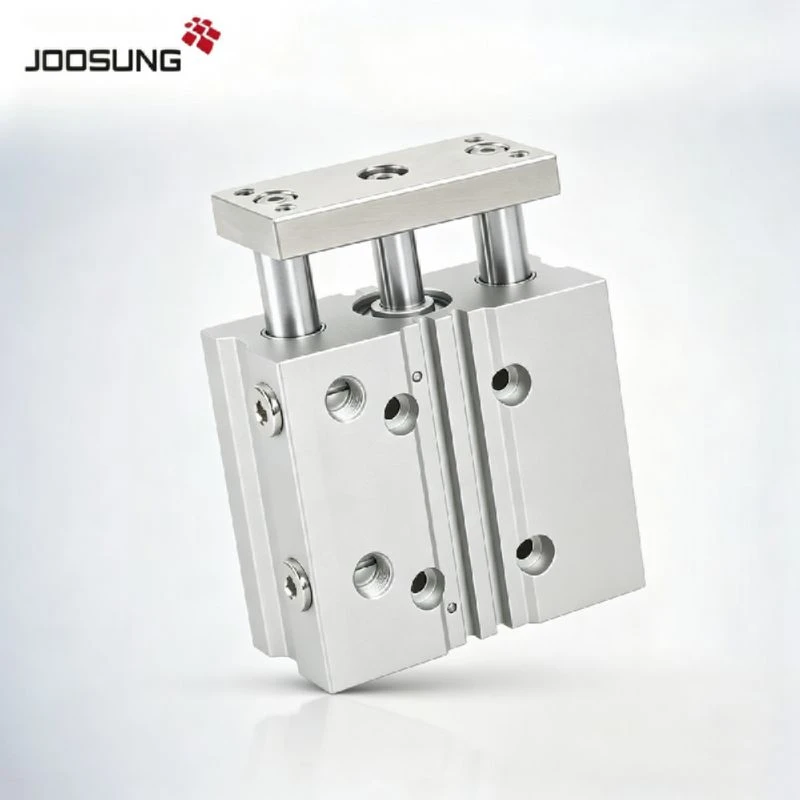

Key Features
• MCGB-03-16-100 16 mm bore, 100 mm stroke, double acting with NBR cushioning
• Typical installations include sorting conveyors at cosmetic filling plants, where the 16 mm bore provides index-table positioning over the 100 mm stroke with keeps the plate square under side load.
• Guide rods and piston move as one unit for stable travel
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Short lead time on demand production, wholesale and OEM welcome
Wide Application Scenarios
• Automotive component fixtures
• Cosmetic filling lines
• Electronics assembly lines
Common Inquiries
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Q: What certificates do you hold?
A: Products follow CE and RoHS compliance; confirm per model before ordering.
Q: Do you have a full series catalog?
A: The complete MCGB series catalog with drawings is available on request.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-16-100 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
16 mm |
|
Stroke |
100 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
