Product Introduction

The MGPM40-50 is a 40 mm bore, 50 mm stroke compact guide pneumatic cylinder from the MGPM series, built around dual guide rods for non-rotating, high-rigidity linear motion. Its slim body makes it a common choice wherever short-stroke movement must stay straight and repeatable.

Dual guide rods carried in slide bearings prevent the tooling plate from rotating and resist lateral loads better than a plain cylinder of the same bore, keeping motion straight and repeatable over the full stroke.

Typical duties include heavier pick-and-place on packaging lines, pressing stations and larger fixtures where stable, non-rotating motion under load matters.

The MGPM40-50 is manufactured on demand together with other MGPM series models, with factory-direct wholesale pricing and OEM/ODM support.

Key Features

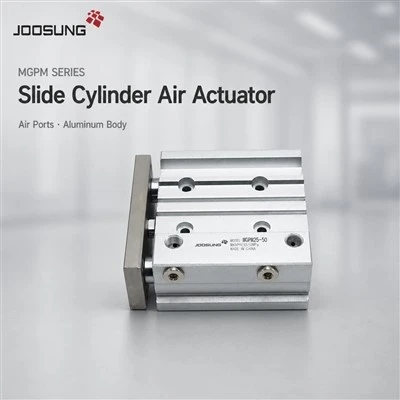

MGPM40-50 compact guide cylinder with 40 mm bore and 50 mm stroke
Dual guide rods with slide bearings prevent rotation and resist lateral loads
Thin, space-saving profile reduces the mounting envelope inside machines
Port with Rc threaded connection and double-acting operation
Four mounting styles and two-direction piping for flexible layouts
Higher rigidity for heavier payloads and cantilevered tooling
Manufactured on demand with wholesale and OEM/ODM support

Applications

Heavier workpiece transfer on packaging lines
Press assist and pressing stations
Larger fixtures with cantilevered tooling plates

FAQ

Q: What is the MGPM40-50?

A: The MGPM40-50 is a 40 mm bore, 50 mm stroke compact guide pneumatic cylinder with dual guide rods, suitable for short-stroke non-rotating linear motion.

Q: What port size does the MGPM40-50 use?

A: The port uses an Rc threaded connection sized for the 40 mm bore, following the standard of the MGPM series.

Q: What kind of loads suit a 32-40 mm bore guide cylinder?

A: Larger bore models provide the rigidity for heavier workpieces, press assists and cantilevered tooling. Confirm the required load against the product spec sheet.

Q: Can you manufacture the MGPM40-50 for our order?

A: Yes. The MGPM40-50 and other MGPM series models are produced on demand with factory-direct pricing, OEM/ODM support and wholesale packaging available.

Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.

Technical Specification

Parameter	Value
Model	MGPM40-50
Type	Compact guide cylinder (dual guide rod, slide bearing)
Bore size	40 mm
Stroke	50 mm
Action	Double acting
Working medium	Filtered air
Working pressure	0.15 - 1.0 MPa
Proof pressure	1.5 MPa
Operating temperature	-10 to 60 ℃
Port size	Rc threaded port (sized per bore)
Guide bearing	Slide bearing
Magnetic switch	Not included (standard)
Mounting	4 styles
Piping	2 directions
