Product Introduction

The MGPM12-10 is a 12 mm bore, 10 mm stroke compact guide pneumatic cylinder from the MGPM series, built around dual guide rods for non-rotating, high-rigidity linear motion. Its slim body makes it a common choice wherever short-stroke movement must stay straight and repeatable.

Dual guide rods carried in slide bearings prevent the tooling plate from rotating and resist lateral loads better than a plain cylinder of the same bore, keeping motion straight and repeatable over the full stroke.

At this bore size the cylinder suits electronics assembly fixtures, small pick-and-place heads and light positioning mechanisms where space is tight and travel is short.

The MGPM12-10 is manufactured on demand together with other MGPM series models, with factory-direct wholesale pricing and OEM/ODM support.

Key Features

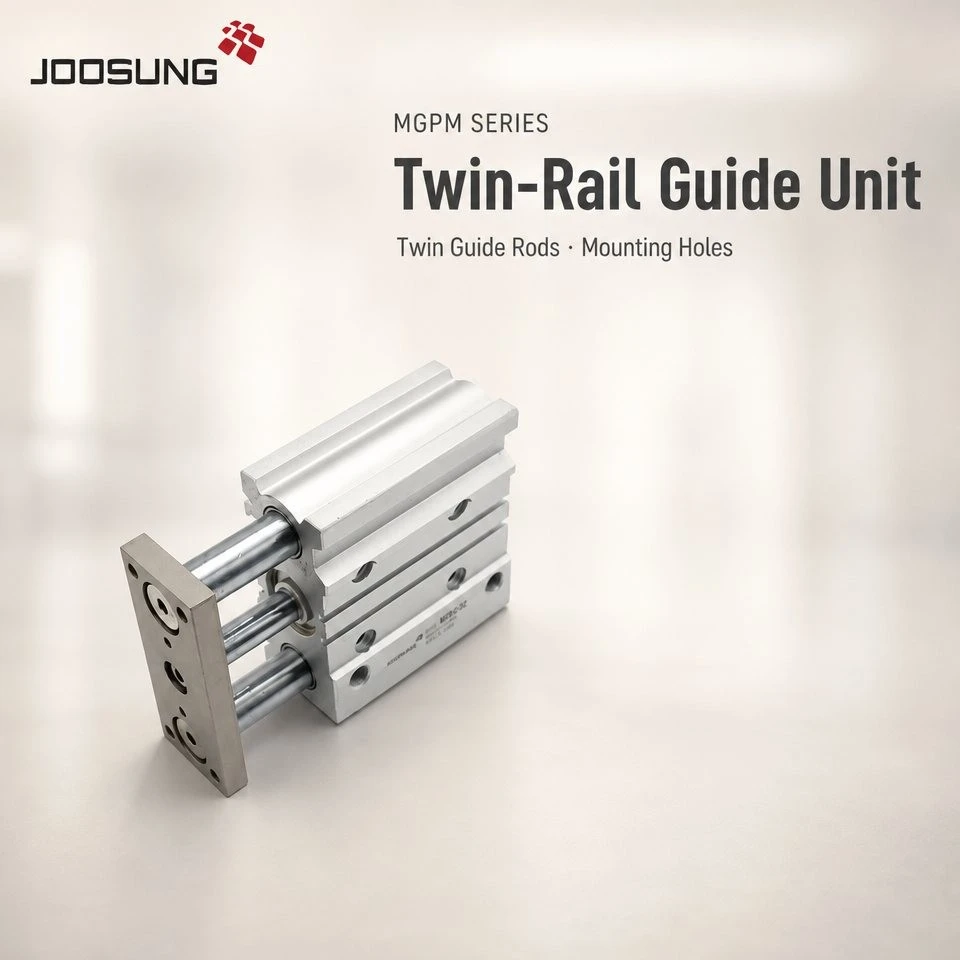

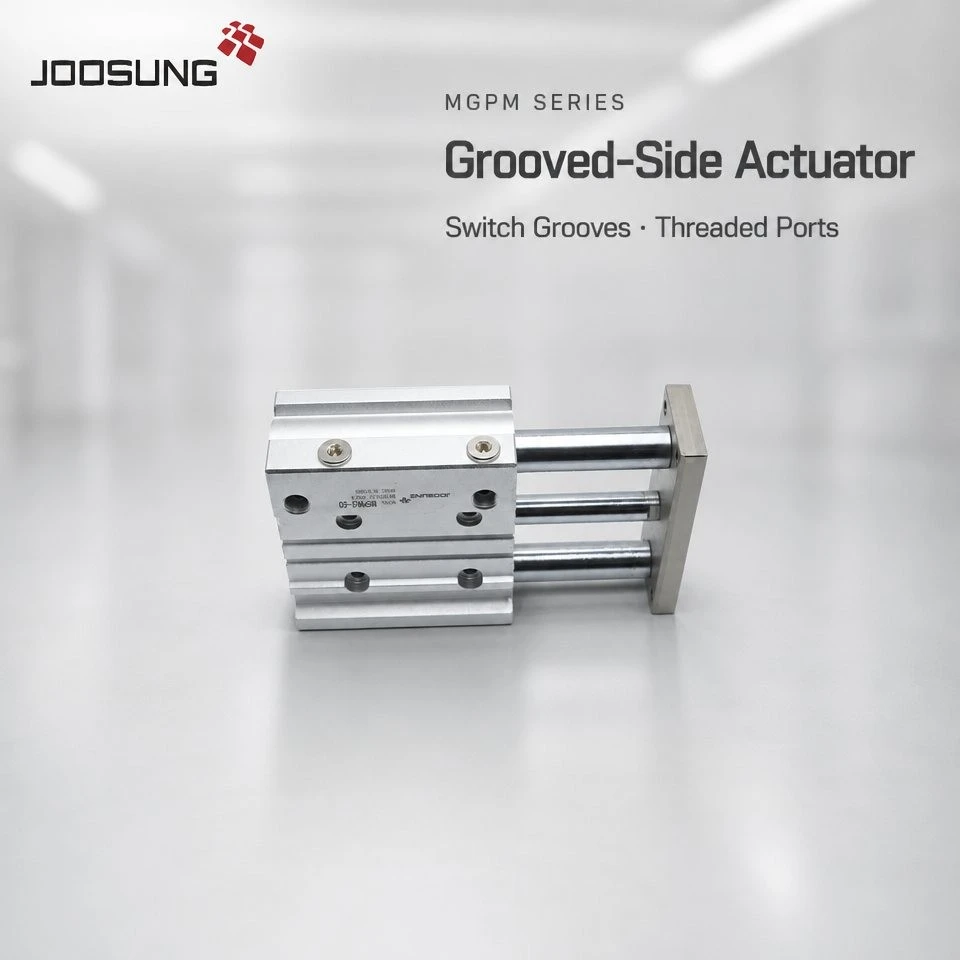

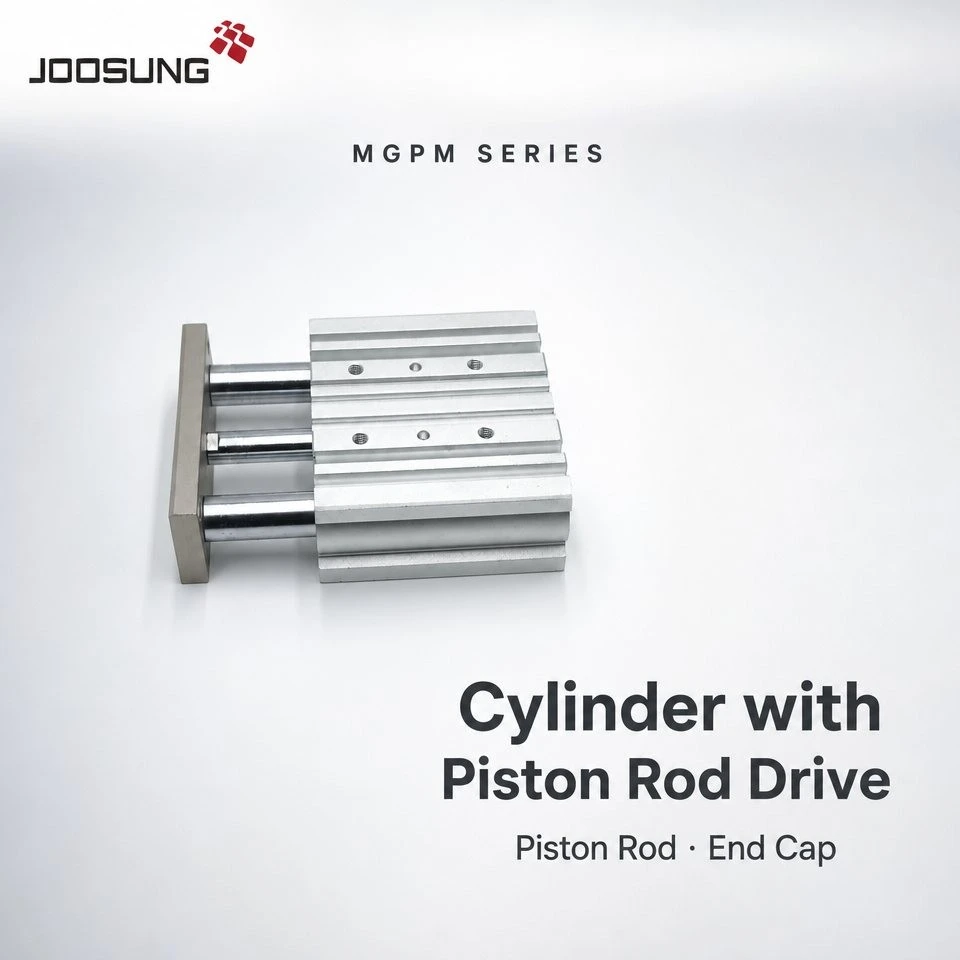

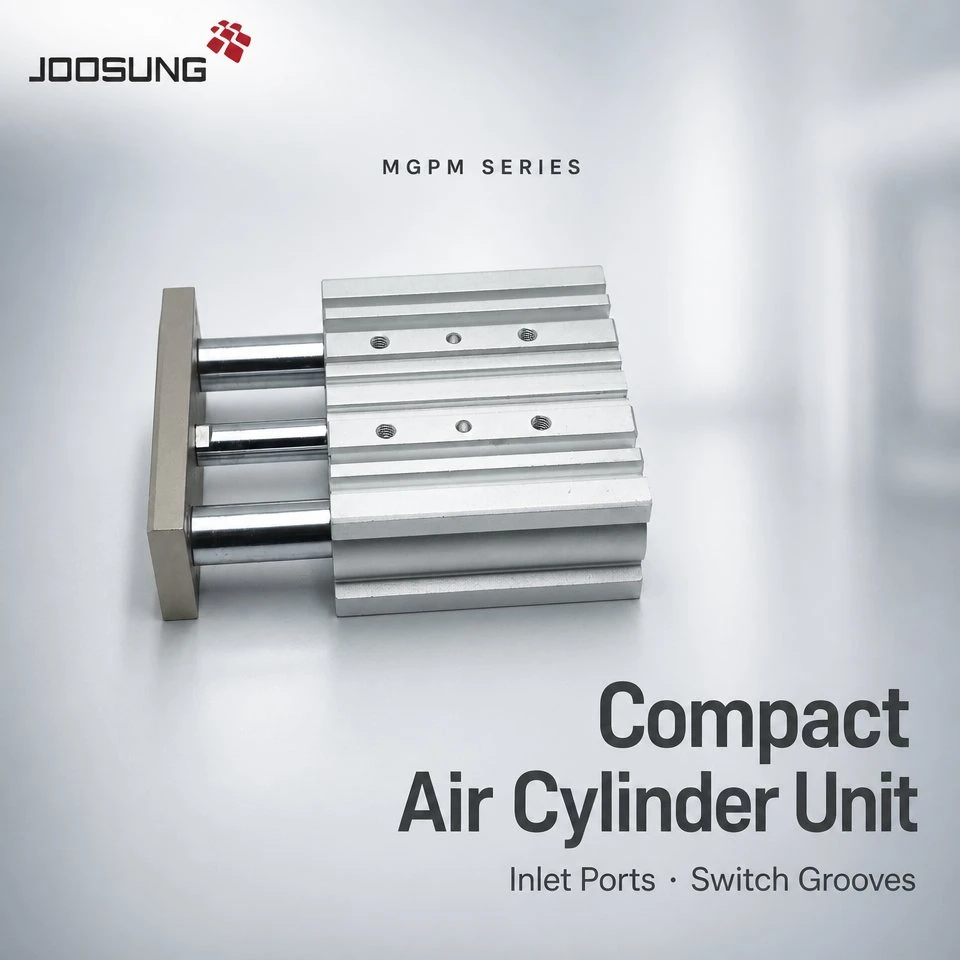

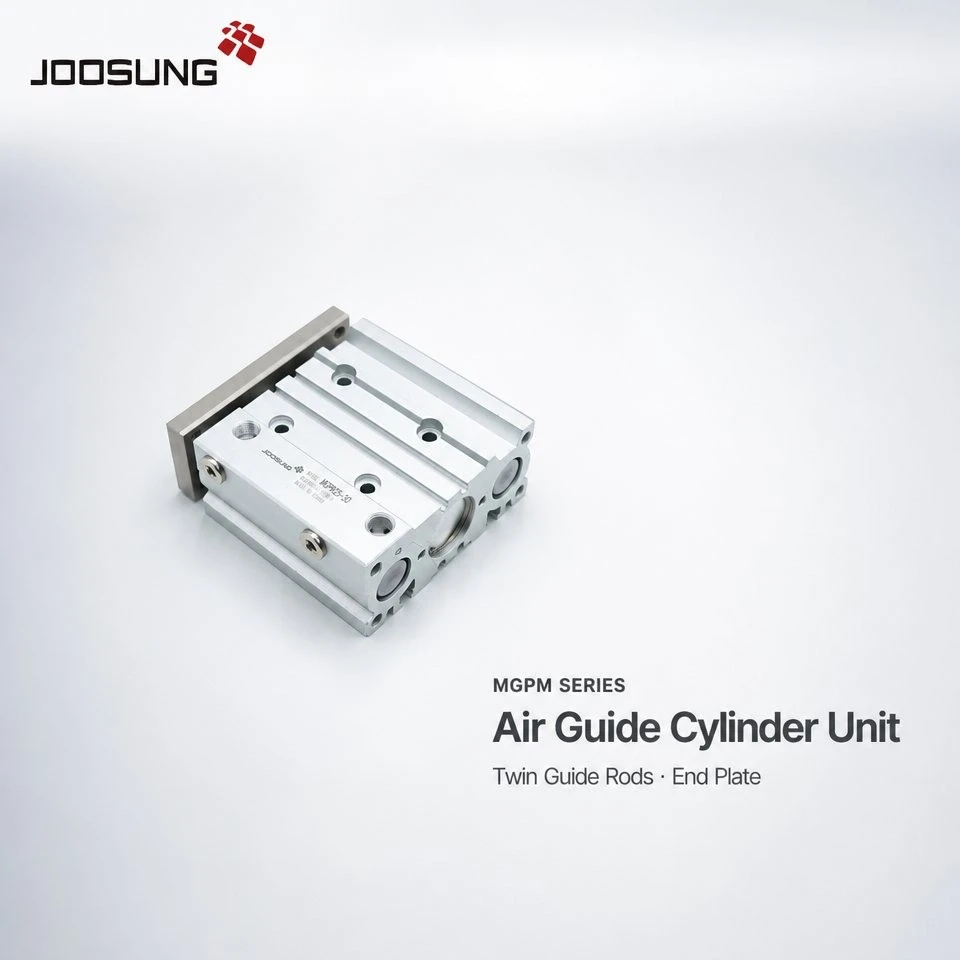

MGPM12-10 compact guide cylinder with 12 mm bore and 10 mm stroke
Dual guide rods with slide bearings prevent rotation and resist lateral loads
Thin, space-saving profile reduces the mounting envelope inside machines
Port M5 x 0.8 and double-acting operation
Four mounting styles and two-direction piping for flexible layouts
Compact footprint suited to tight fixtures and small machines
Manufactured on demand with wholesale and OEM/ODM support

Applications

Electronics assembly fixtures and small pick-and-place heads
Light parts feeding and positioning mechanisms
Compact work cells needing rotation-free short strokes

FAQ

Q: What is the MGPM12-10?

A: The MGPM12-10 is a 12 mm bore, 10 mm stroke compact guide pneumatic cylinder with dual guide rods, suitable for short-stroke non-rotating linear motion.

Q: What port size does the MGPM12-10 use?

A: The port size is M5 x 0.8, standard for 12 mm bore guide cylinders.

Q: What applications fit a 12-16 mm bore guide cylinder?

A: Guide cylinders in this size range are commonly used in electronics assembly, small pick-and-place heads and light positioning fixtures where space is limited.

Q: Can you manufacture the MGPM12-10 for our order?

A: Yes. The MGPM12-10 and other MGPM series models are produced on demand with factory-direct pricing, OEM/ODM support and wholesale packaging available.

Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.

TECHNICAL SPECIFICATION

Parameter	Value
Model	MGPM12-10
Type	Compact guide cylinder (dual guide rod, slide bearing)
Bore size	12 mm
Stroke	10 mm
Action	Double acting
Working medium	Filtered air
Working pressure	0.15 - 1.0 MPa
Proof pressure	1.5 MPa
Operating temperature	-10 to 60 ℃
Port size	M5 x 0.8
Guide bearing	Slide bearing
Magnetic switch	Not included (standard)
Mounting	4 styles
Piping	2 directions
