Product Introduction

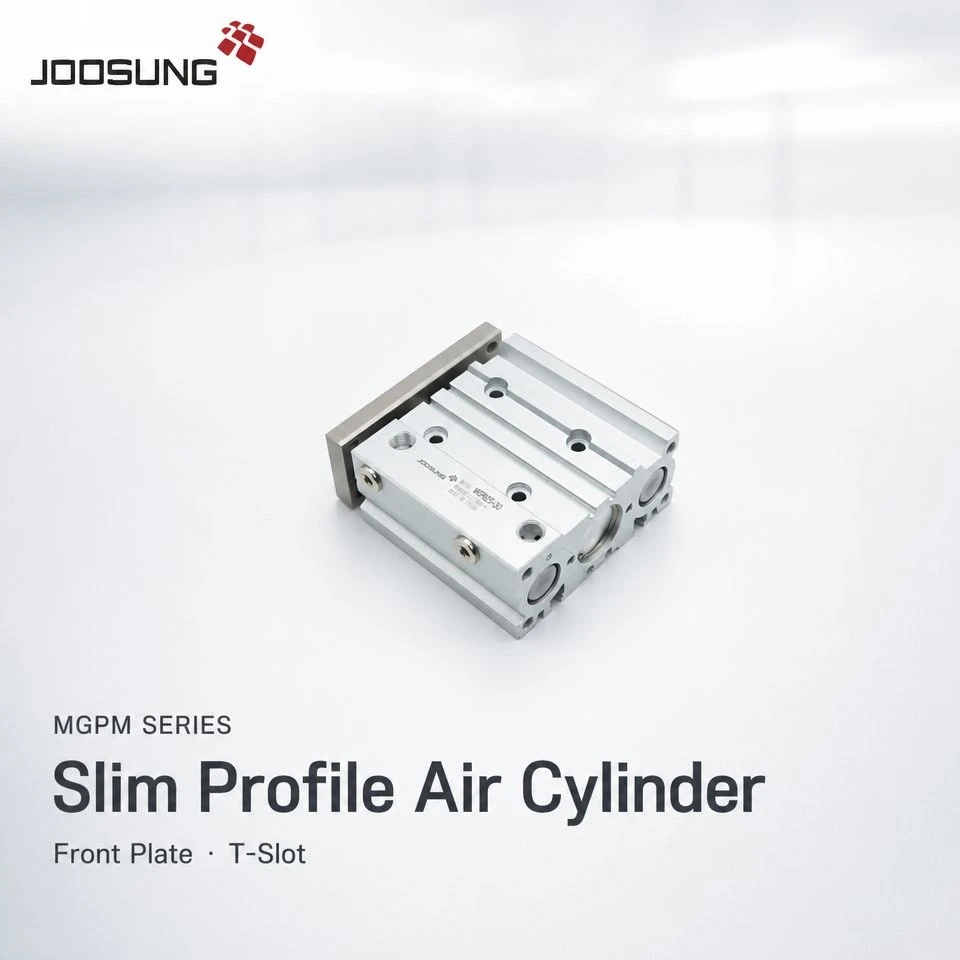

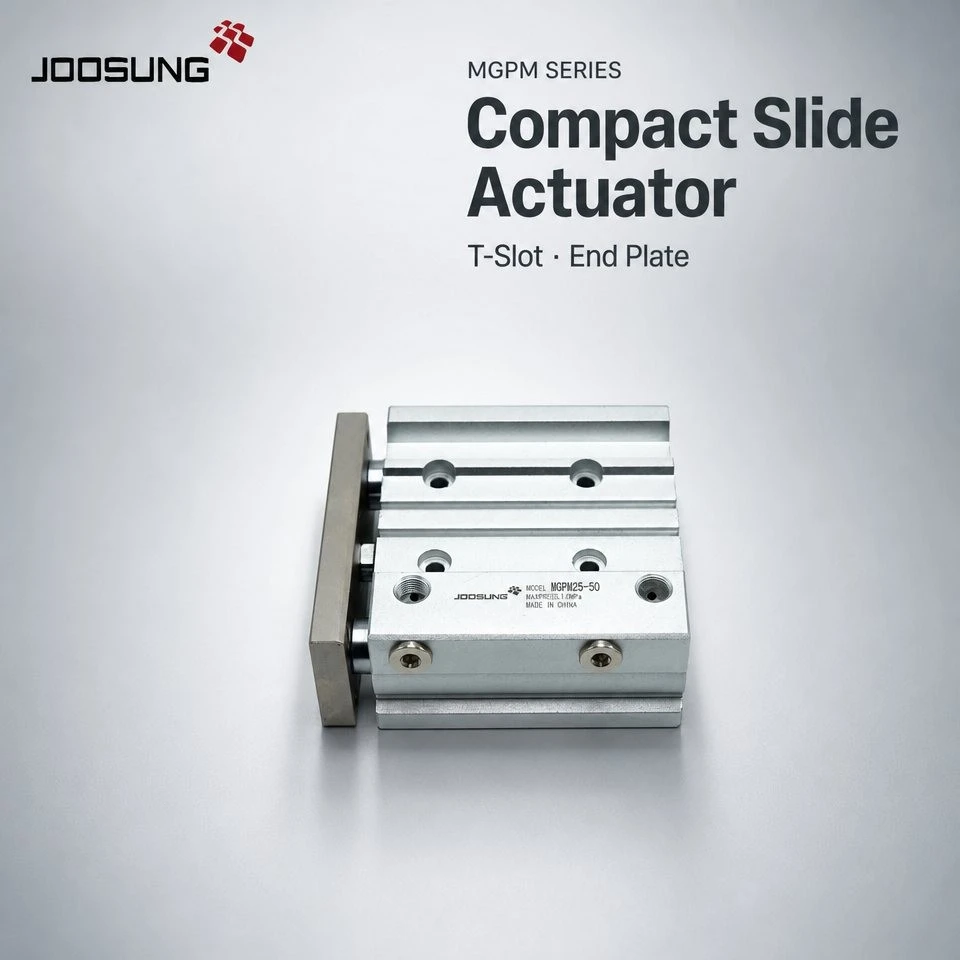

In pick-and-place and positioning stations the MGPM16-20 provides 20 mm of guided travel from a 16 mm bore, holding orientation precisely so downstream tooling lands where it should.

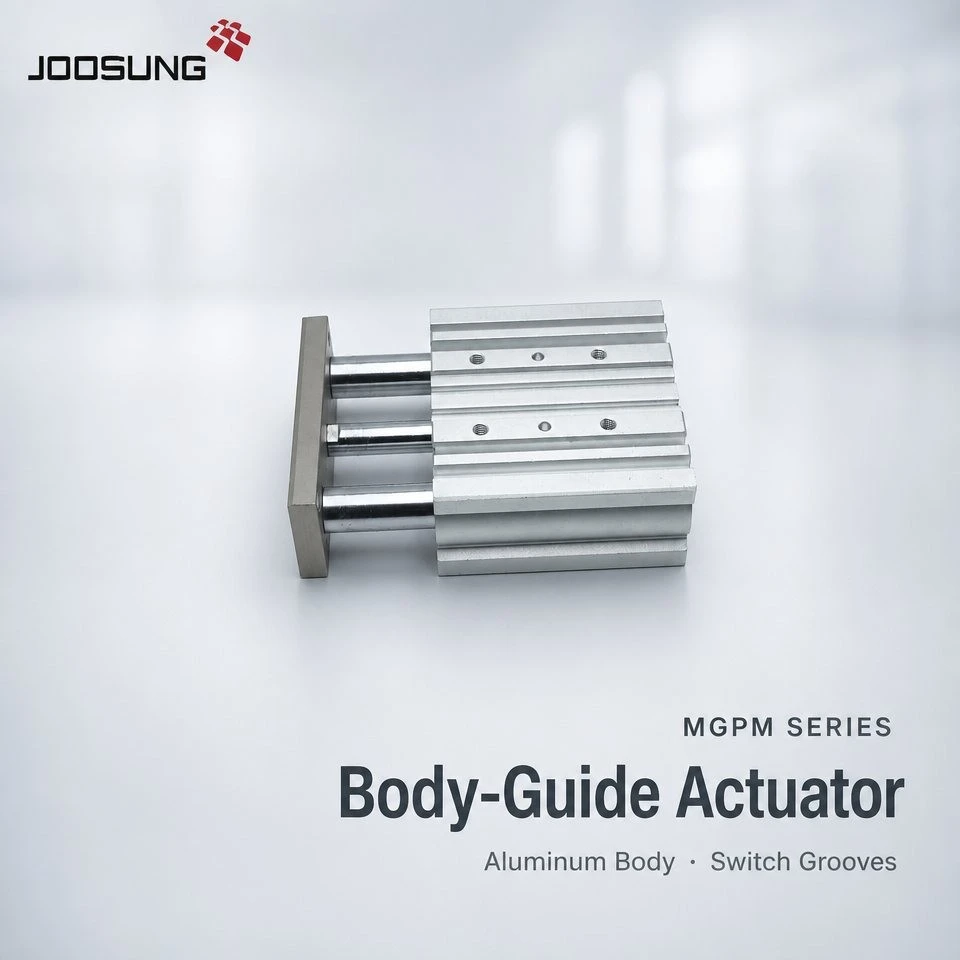

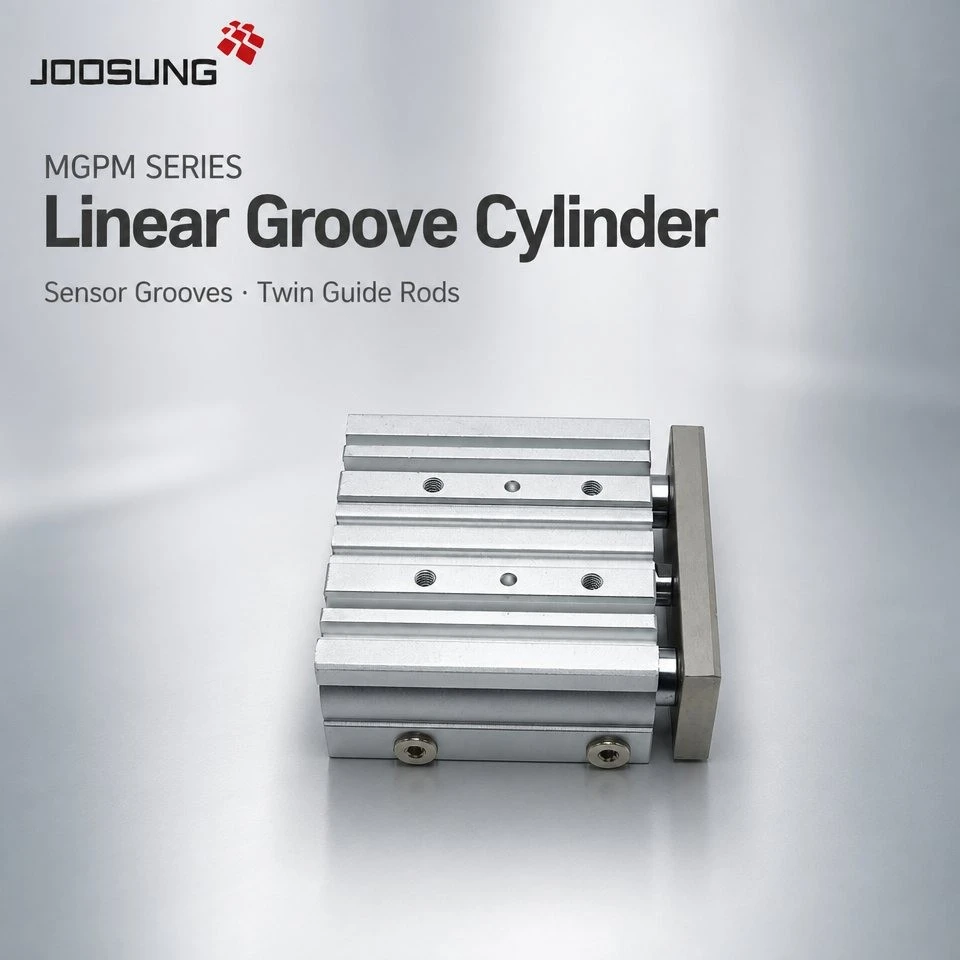

The slide-bearing guide rods restrain rotation of the moving plate, so tools, grippers and sensors mounted on it keep their orientation throughout the stroke.
At this bore size the cylinder suits electronics assembly fixtures, small pick-and-place heads and light positioning mechanisms where space is tight and travel is short.
Orders for the MGPM16-20 are produced at our factory with wholesale pricing, private label and custom stroke options available.
Key Features
- MGPM16-20 compact guide cylinder with 16 mm bore and 20 mm stroke

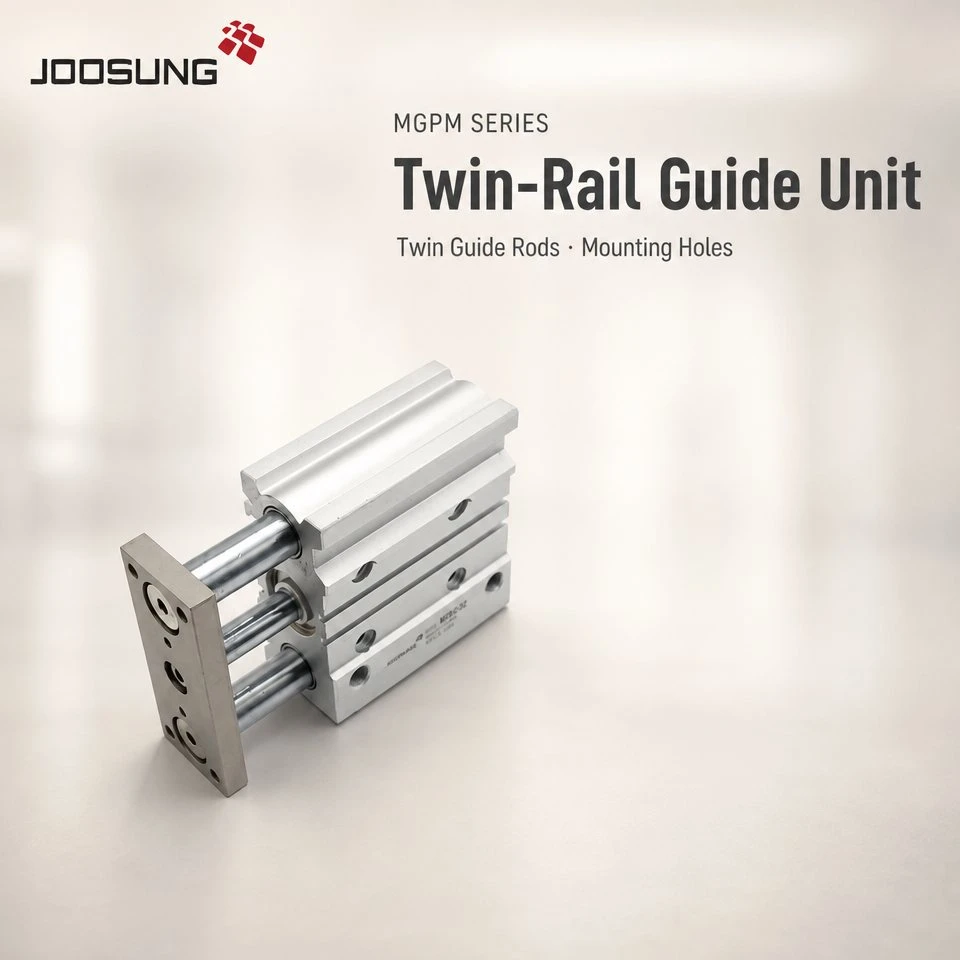

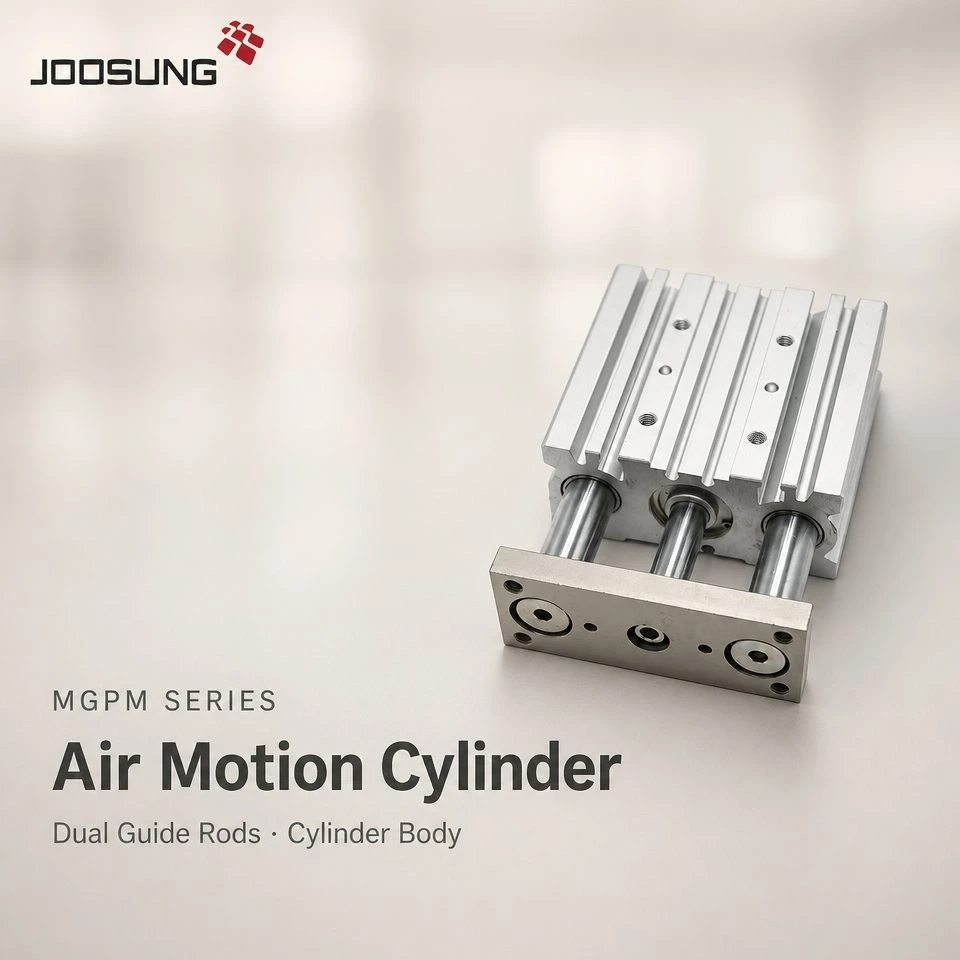

- Dual guide rods with slide bearings prevent rotation and resist lateral loads
- Thin, space-saving profile reduces the mounting envelope inside machines
- Port M5 x 0.8 and double-acting operation
- Four mounting styles and two-direction piping for flexible layouts
- Compact footprint suited to tight fixtures and small machines
- Manufactured on demand with wholesale and OEM/ODM support
Applications
- SMT and electronics handling fixtures
- Light assembly stations with guided parts transfer
- Automated test fixtures for small components
FAQ
Q: What is the MGPM16-20?
A: The MGPM16-20 is a 16 mm bore, 20 mm stroke compact guide pneumatic cylinder with dual guide rods, suitable for short-stroke non-rotating linear motion.
Q: What port size does the MGPM16-20 use?
A: The port size is M5 x 0.8, standard for 16 mm bore guide cylinders.
Q: What applications fit a 12-16 mm bore guide cylinder?
A: Guide cylinders in this size range are commonly used in electronics assembly, small pick-and-place heads and light positioning fixtures where space is limited.
Q: Can you manufacture the MGPM16-20 for our order?
A: Yes. The MGPM16-20 and other MGPM series models are produced on demand with factory-direct pricing, OEM/ODM support and wholesale packaging available.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MGPM16-20 |
|
Type |
Compact guide cylinder (dual guide rod, slide bearing) |
|
Bore size |
16 mm |
|
Stroke |
20 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.15 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Operating temperature |
-10 to 60 ℃ |
|
Port size |
M5 x 0.8 |
|
Guide bearing |
Slide bearing |
|
Magnetic switch |
Not included (standard) |
|
Mounting |
4 styles |
|
Piping |
2 directions |
Note: All technical figures are for reference only. Please confirm detailed data against the official product spec sheet before ordering.
