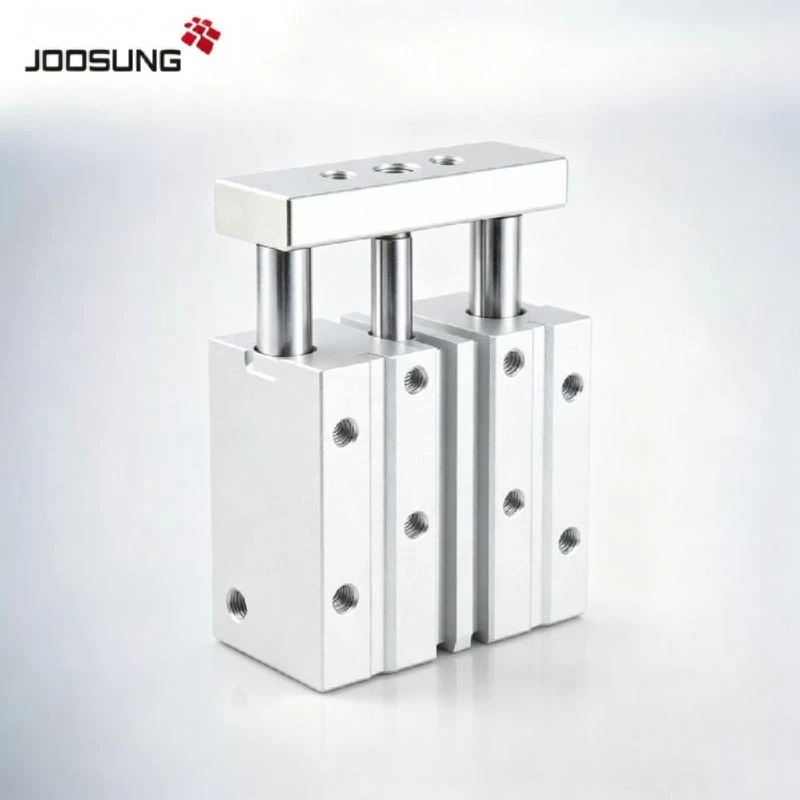

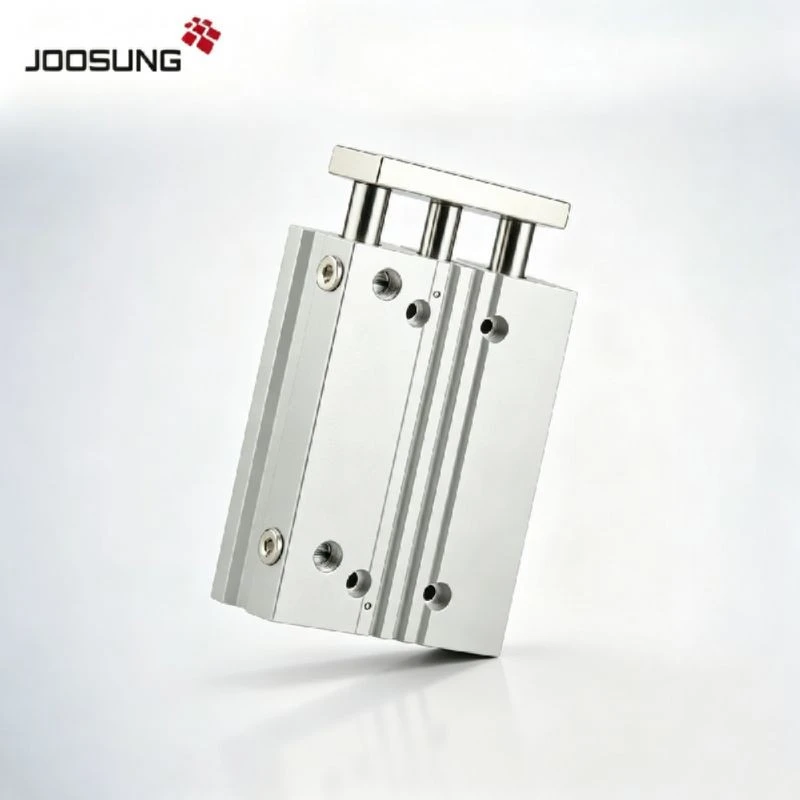

Key Features
• MCGB-03-32-125 32 mm bore, 125 mm stroke, double acting with NBR cushioning
• Typical installations include sorting conveyors at laboratory automation plants, where the 32 mm bore provides short indexing strokes over the 125 mm stroke with keeps the plate square under side load.
• Guide rods and piston move as one unit for stable travel
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Factory made on order with wholesale and private label support
Wide Application Scenarios
• Automotive component fixtures
• Cosmetic filling lines
• Electronics assembly lines
Common Inquiries
Q: What certificates do you hold?
A: Products follow CE and RoHS compliance; confirm per model before ordering.
Q: What warranty do you offer?
A: 12-month warranty against manufacturing defects.
Q: Do you provide samples before bulk orders?
A: Yes, samples are available first; sample cost is refundable against the bulk order.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-32-125 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
32 mm |
|
Stroke |
125 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
