Key Features

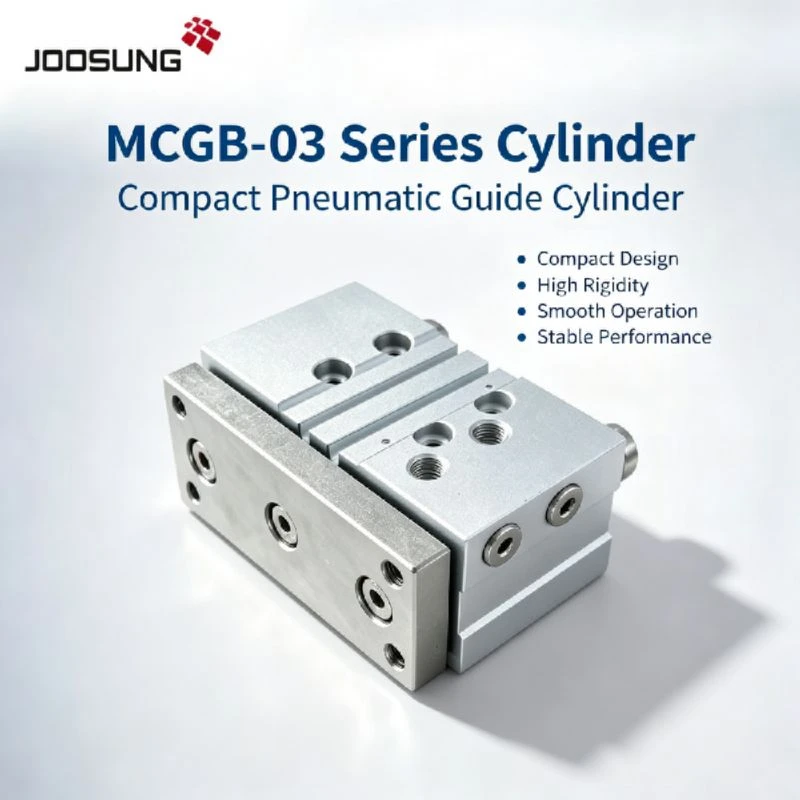

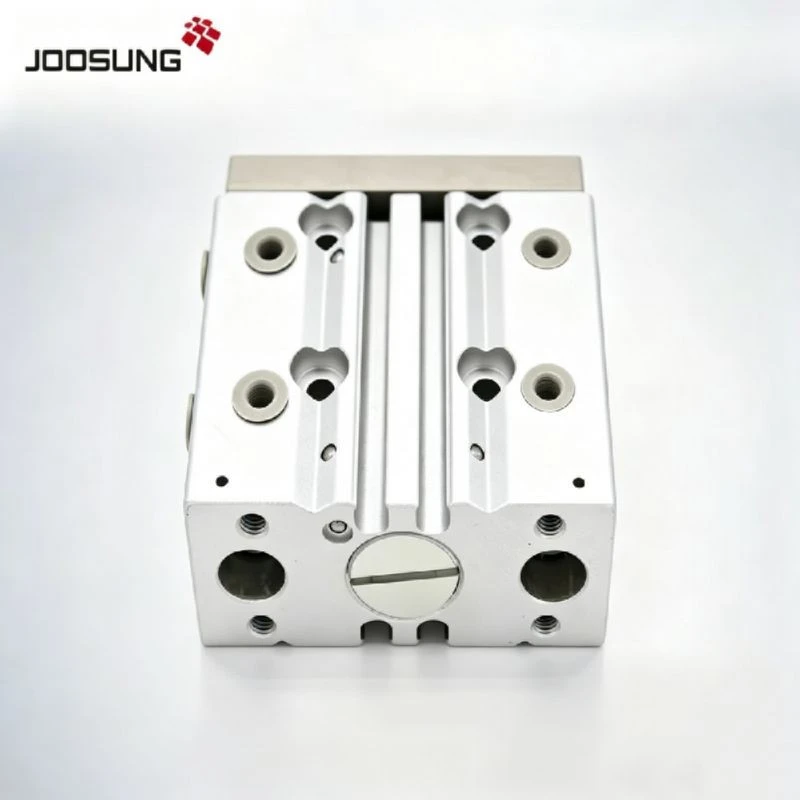

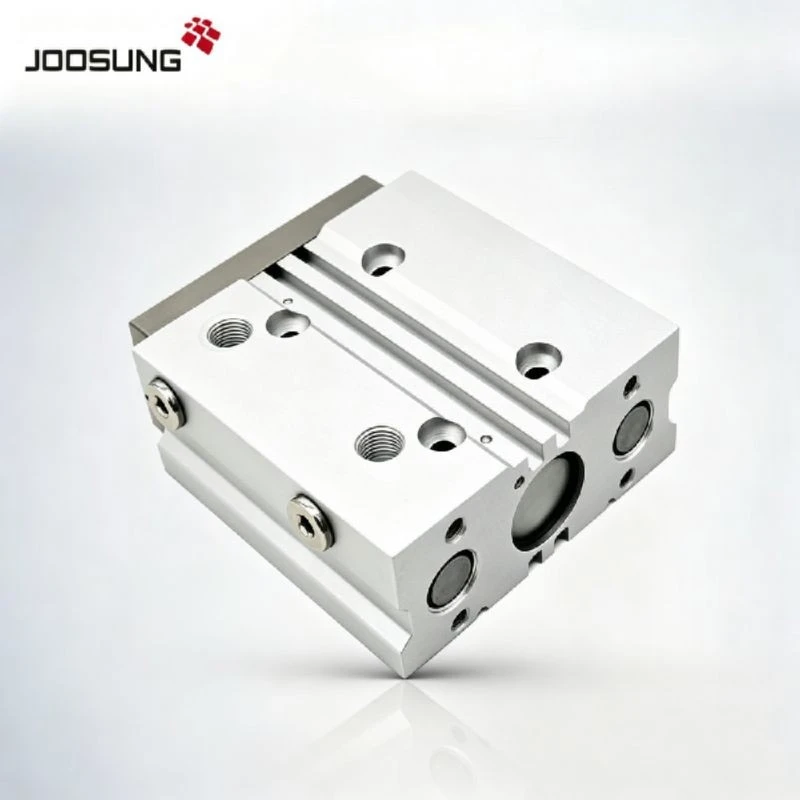

• MCGB-03-16-75 16 mm bore, 75 mm stroke, double acting with NBR cushioning
• The 75 mm stroke and 16 mm bore of this MCGB model suit benchtop machines where gentle lifting of tooling plates needs moves without stick-slip at low speeds.

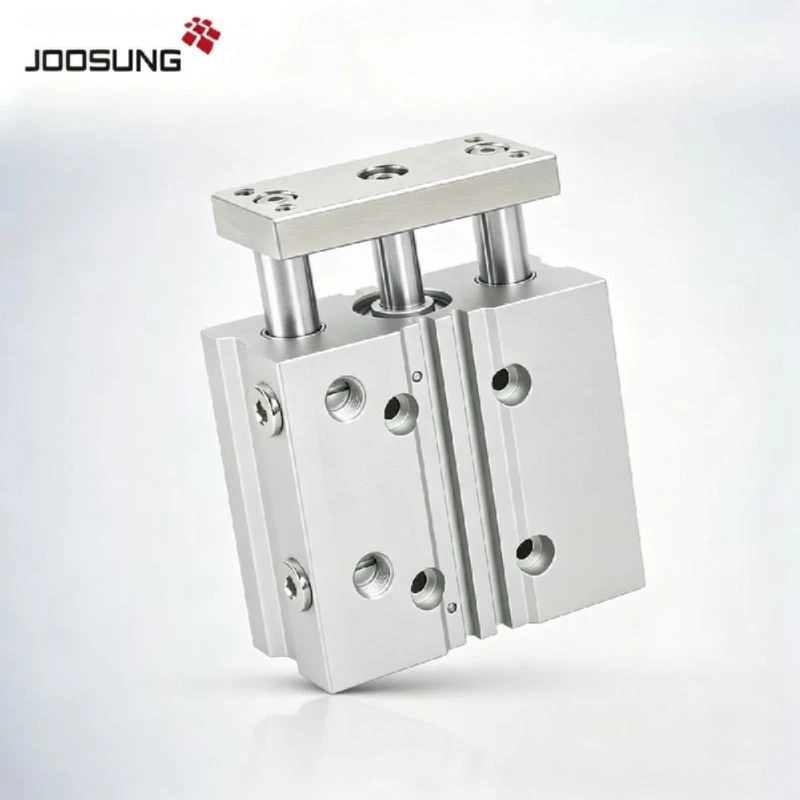

• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Factory made on order with wholesale and private label support
Wide Application Scenarios
• Textile machinery
• Electronics assembly lines
• Medical device assembly
Common Inquiries
Q: How are the cylinders packed?
A: Export cartons with foam protection; custom packaging available.
Q: Do you provide technical support?
A: Yes, drawing and application support before and after the order.
Q: What certificates do you hold?
A: Products follow CE and RoHS compliance; confirm per model before ordering.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-16-75 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
16 mm |
|
Stroke |
75 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
