Key Features

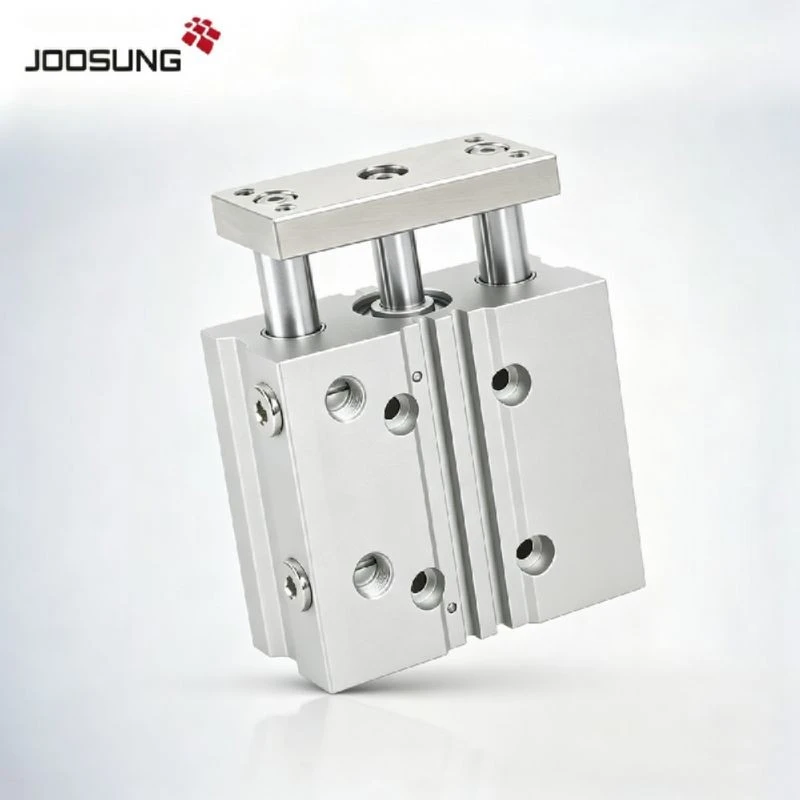

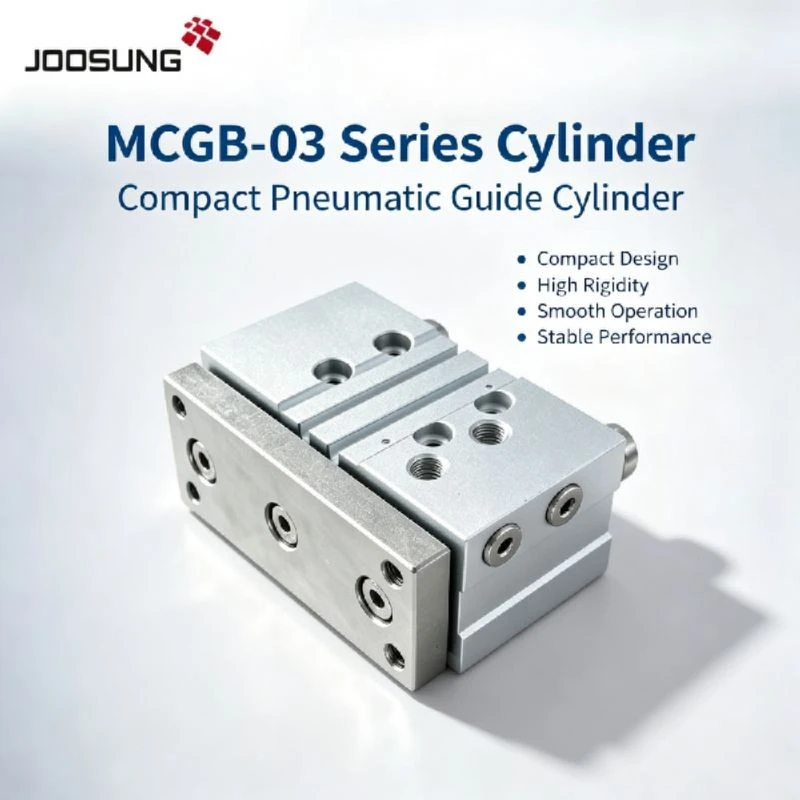

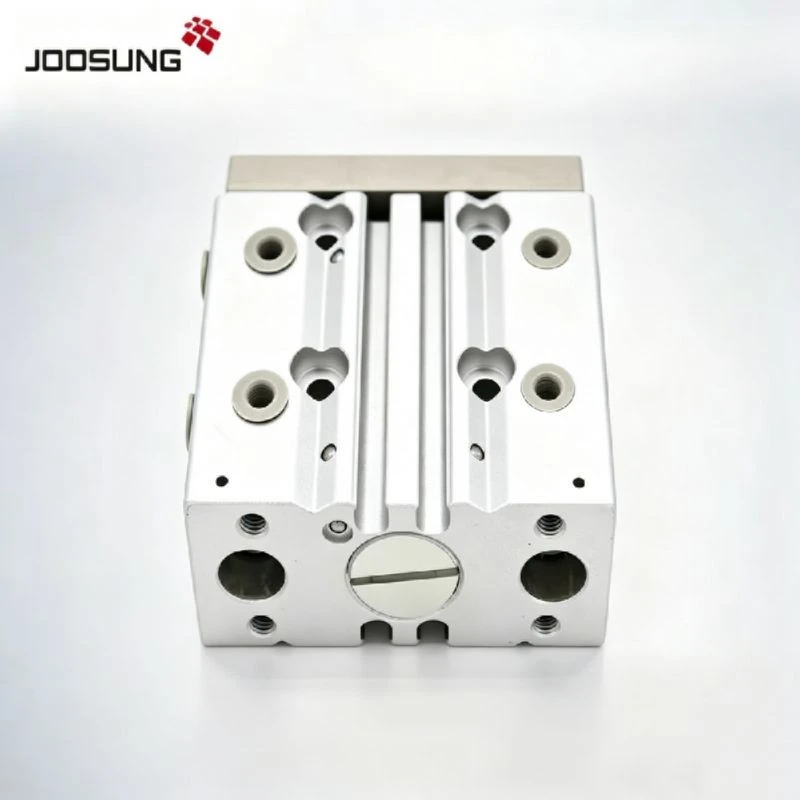

• MCGB-03-20-50 20 mm bore, 50 mm stroke, double acting with NBR cushioning
• Typical installations include robotic end-effector frames at cosmetic filling plants, where the 20 mm bore provides index-table positioning over the 50 mm stroke with holds repeatable position accuracy.
• Guide rods and piston move as one unit for stable travel
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Factory made on order with wholesale and private label support
Wide Application Scenarios
• Pharmaceutical packaging equipment
• Medical device assembly
• Logistics sorting systems
Common Inquiries
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Q: What certificates do you hold?
A: Products follow CE and RoHS compliance; confirm per model before ordering.
Q: Do you have a full series catalog?
A: The complete MCGB series catalog with drawings is available on request.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-20-50 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
20 mm |
|
Stroke |
50 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
