Key Features
• MCGB-03-32-100 32 mm bore, 100 mm stroke, double acting with NBR cushioning
• The 100 mm stroke and 32 mm bore of this MCGB model suit benchtop machines where pusher and ejector tasks needs moves without stick-slip at low speeds.

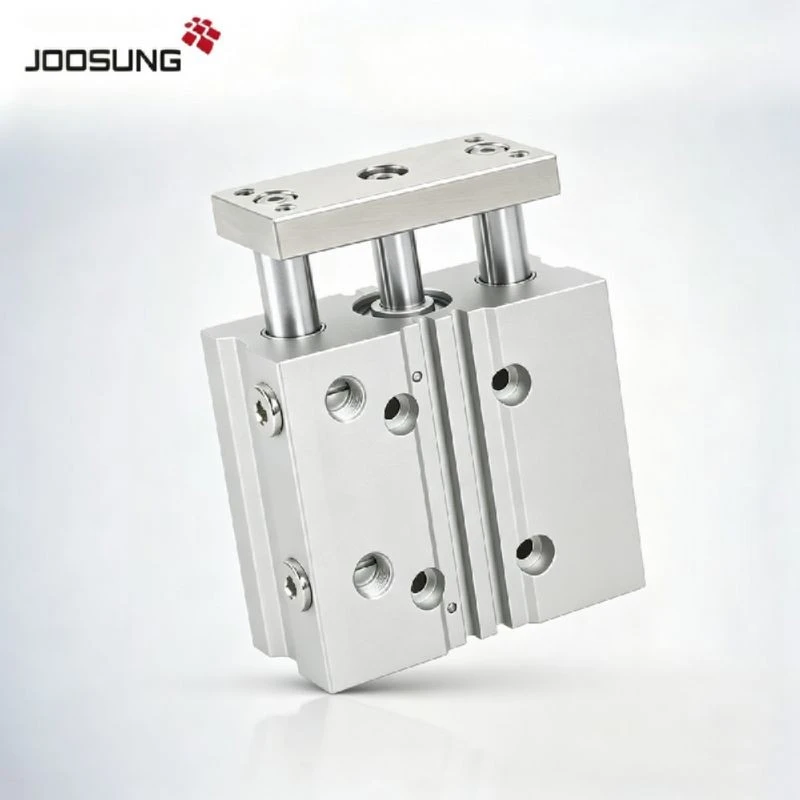

• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Manufactured on demand with wholesale and OEM/ODM support
Wide Application Scenarios
• Textile machinery
• Electronics assembly lines
• Medical device assembly
Common Inquiries
Q: Do you provide technical support?
A: Yes, drawing and application support before and after the order.
Q: Can the stroke or model be customized?
A: Custom strokes and OEM/ODM versions are available on request.
Q: What warranty do you offer?
A: 12-month warranty against manufacturing defects.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-32-100 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
32 mm |
|
Stroke |
100 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
