Key Features

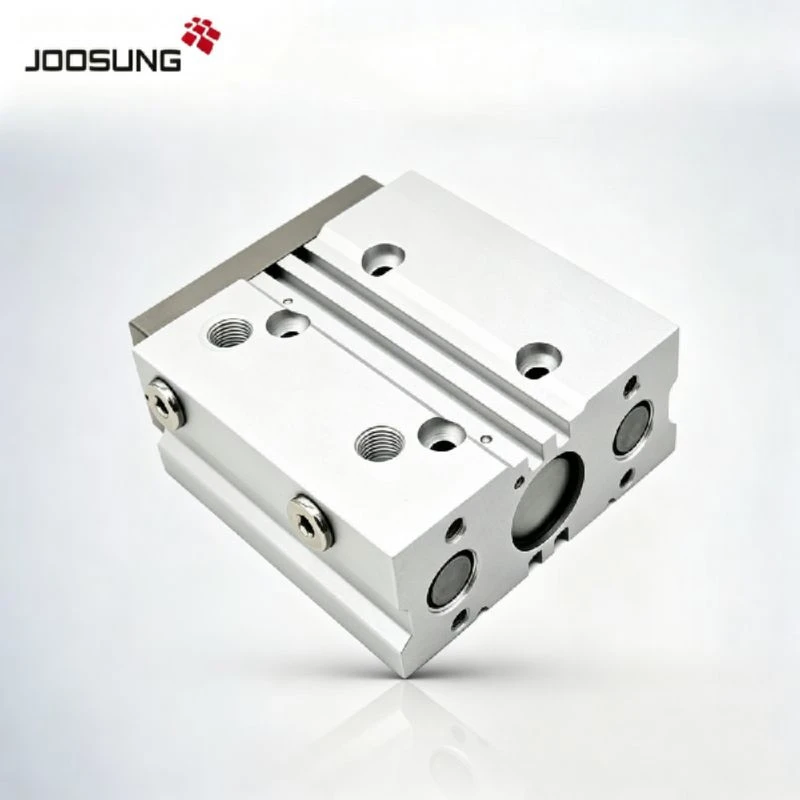

• MCGB-03-25-10 25 mm bore, 10 mm stroke, double acting with NBR cushioning
• Used mainly for guided sliding movements in pressing stations, the 25 mm bore, 10 mm stroke MCGB-03 keeps the plate square under side load.
• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Four grooves accept embedded reed or solid state switches; magnetic piston included
• Factory made on order with wholesale and private label support
Wide Application Scenarios
• Semiconductor handling equipment
• Logistics sorting systems
• Automotive component fixtures
Common Inquiries
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Q: Do you have a full series catalog?
A: The complete MCGB series catalog with drawings is available on request.
Q: What is the production lead time?
A: Standard models ship in 7-15 days depending on order quantity.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-25-10 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
25 mm |
|
Stroke |
10 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
