Key Features

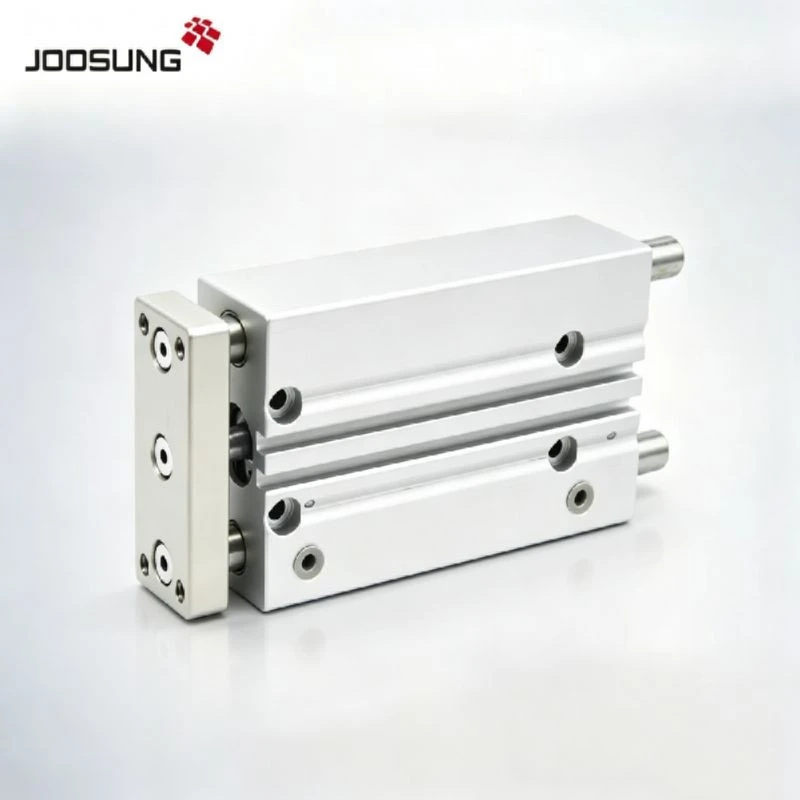

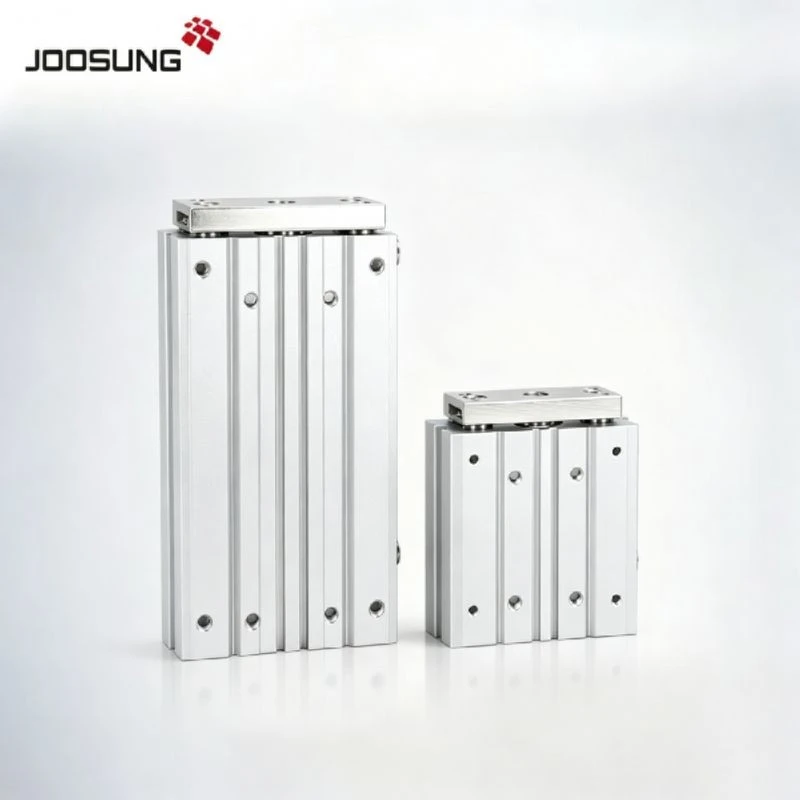

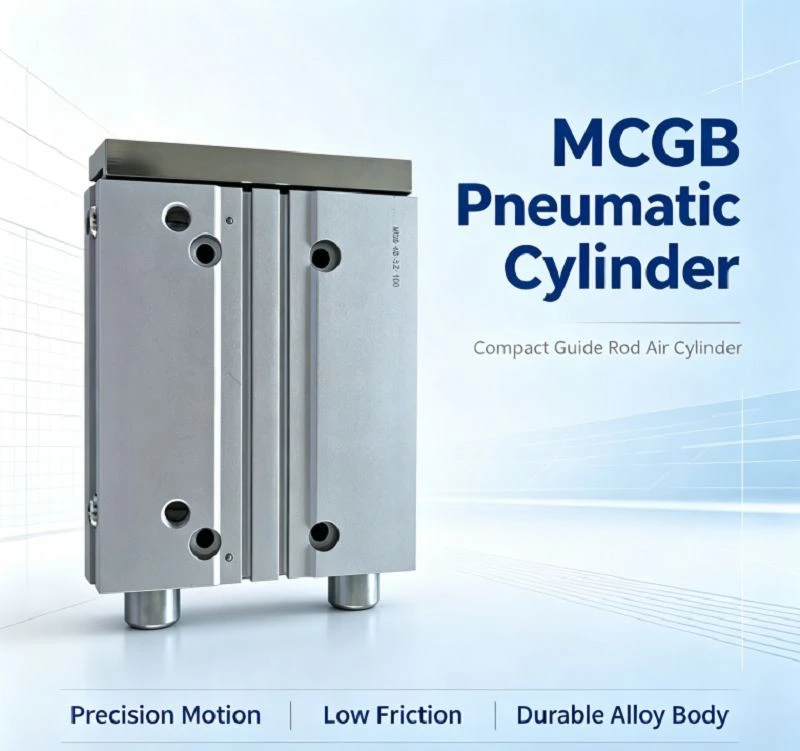

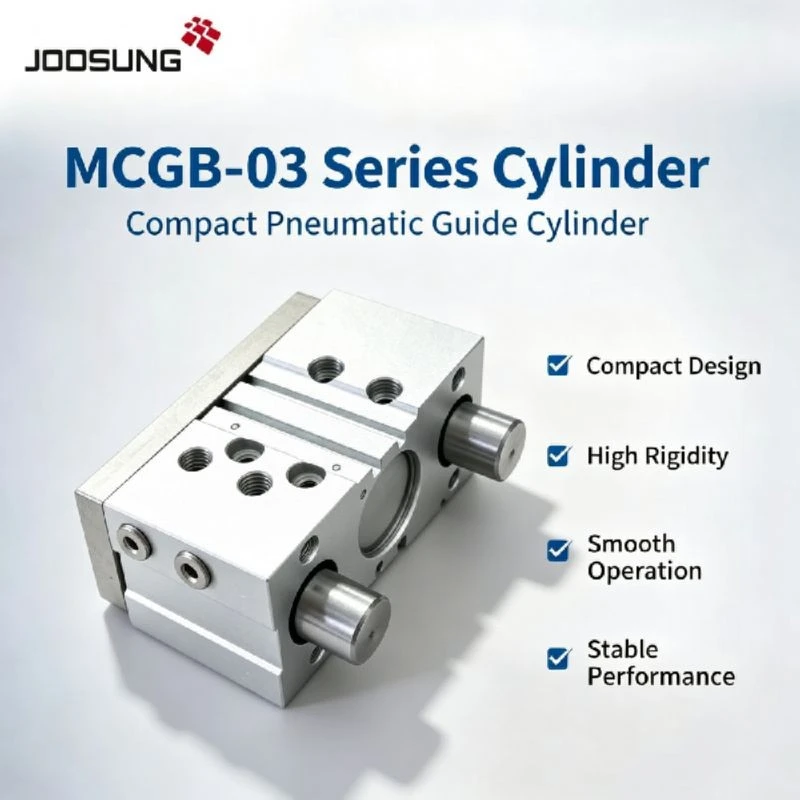

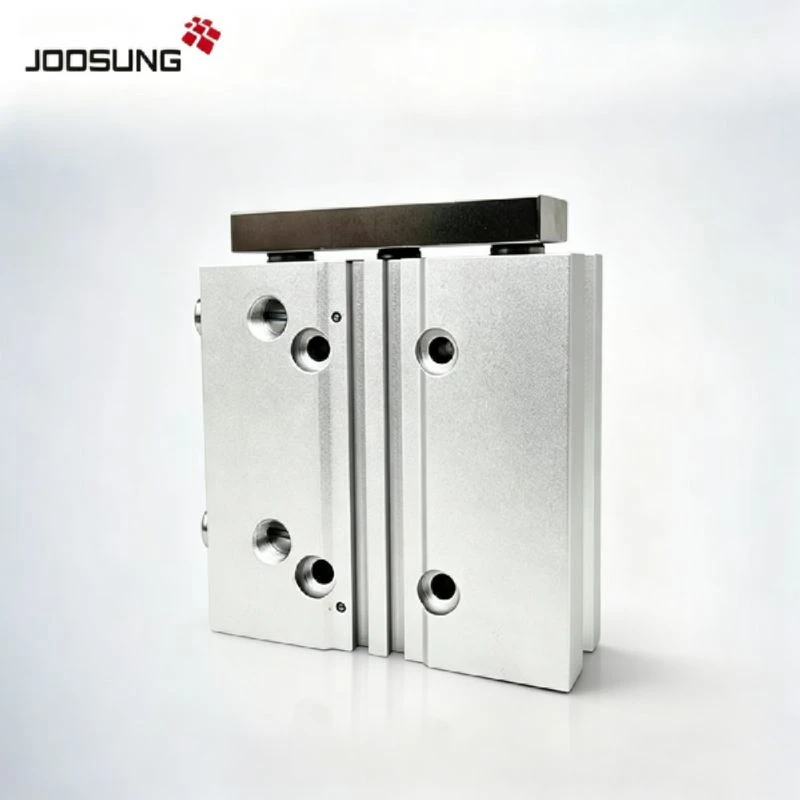

• MCGB-03-12-25 12 mm bore, 25 mm stroke, double acting with NBR cushioning
• Typical installations include inspection equipment at medical device plants, where the 12 mm bore provides guided sliding movements over the 25 mm stroke with moves without stick-slip at low speeds.
• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Short lead time on demand production, wholesale and OEM welcome
Wide Application Scenarios
• Food processing machinery
• Semiconductor handling equipment
• Laboratory automation instruments
Common Inquiries
Q: Are these direct replacements for standard MCGB-03 parts?
A: Yes, identical mounting dimensions and port layout for direct replacement.
Q: What is the production lead time?
A: Standard models ship in 7-15 days depending on order quantity.
Q: How are the cylinders packed?
A: Export cartons with foam protection; custom packaging available.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-12-25 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
12 mm |
|
Stroke |
25 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
M5 x 0.8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
