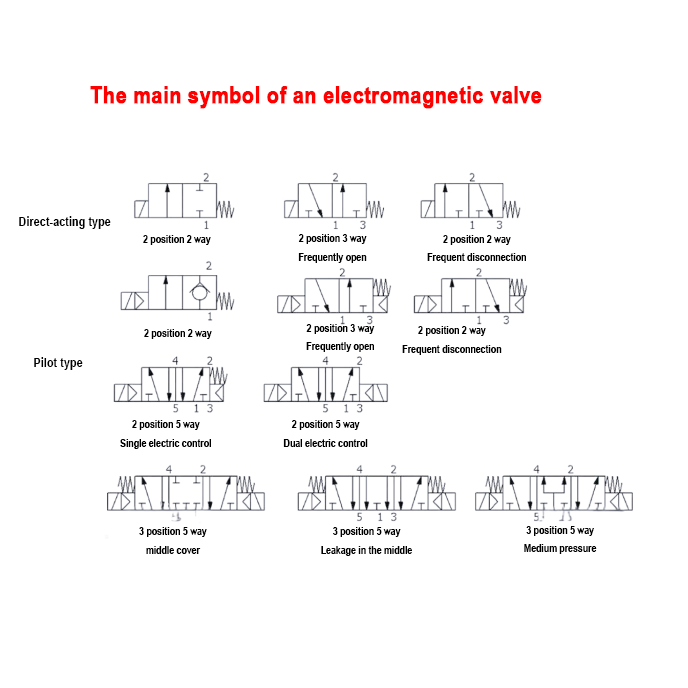

The main symbols used to representsolenoid valves in electrical and pneumatic/hydraulic diagrams typically include:
1. Basic Solenoid Valve Symbol: This symbol typically consists of a rectangle or square with an arrow pointing in or out of it, indicating the direction of fluid flow when the solenoid is energized. Sometimes, this symbol is accompanied by additional details, such as the number of ports (usually two or more).
2. Coil Symbol: This symbol represents the electrical coil of the solenoid valve. It is usually depicted as a coil of wire or a circle with a coil-like pattern inside, indicating where the electrical connections are made to energize the solenoid and actuate the valve.
3. Normally Open (NO) Solenoid Valve Symbol: This symbol indicates a solenoid valve that is normally open when not energized. It typically consists of the basic solenoid valve symbol with an additional line intersecting the arrow, indicating the default open position.
4. Normally Closed (NC) Solenoid Valve Symbol: This symbol represents a solenoid valve that is normally closed when not energized. It usually looks similar to the basic solenoid valve symbol, but with an additional line intersecting the arrow, indicating the default closed position.
5. 3-way Solenoid Valve Symbol: This symbol is used for solenoid valves with three ports, typically labeled as "In," "Out," and "Exhaust." It consists of the basic solenoid valve symbol with additional ports indicated by arrows or lines.
6. 4-way Solenoid Valve Symbol: This symbol represents solenoid valves with four ports, often used in applications requiring directional control. It typically consists of the basic solenoid valve symbol with two additional ports indicated by arrows or lines.
