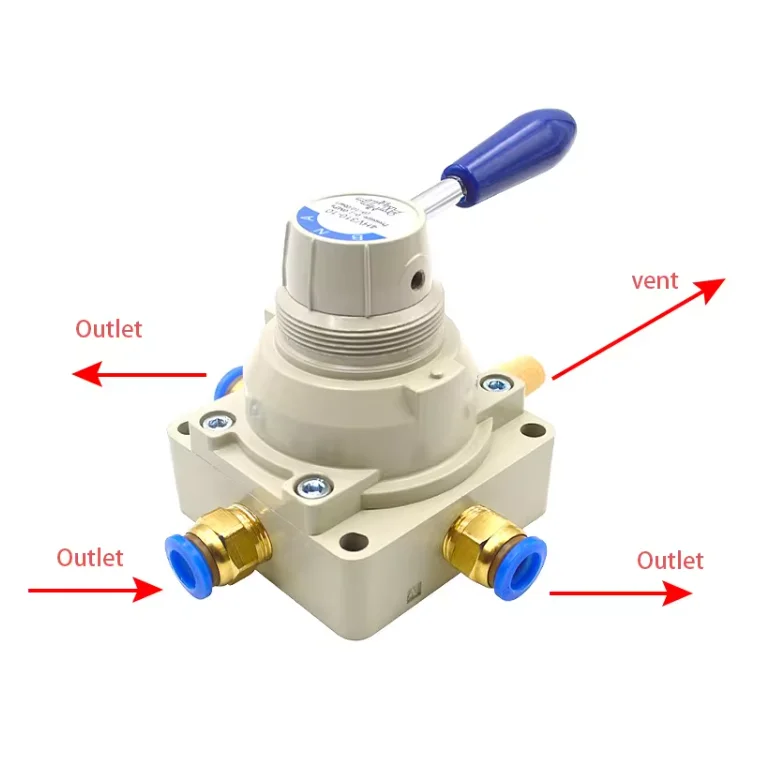

4HV310-10 4HV Series Hand Valve
|
Model
|
4HV2**-06
|
4HV2**-08
|
4HV3**-08
|
4HV3*-10
|
4HV4**-15
|
4HV4**-20
|
|
|
Working Media
|
Clean Air
|
||||||
|
Position
|
4/2 Port,4/3 Port
|
||||||
|
Port Size
|
G1/8
|
G1/4
|
G1/4
|
G3/8
|
G1/2
|
G3/4
|
|
|
Effective Sectional Area(mm²)
|
14(0.78)
|
16(0.89)
|
30(1.67)
|
33(1.83)
|
88(4.89)
|
95(5.27)
|
|
|
Working Pressure Range
|
1.0MPa
|
||||||
|
Proof Pressure
|
1.5MPa
|
||||||
|
Working Temperature Range
|
0~60℃
|
||||||
|
Operation Angle
|
90℃
|
||||||
|
Material
|
Body
|
Aluminum Alloy
|
|||||
|
|
Seal
|
Nylon
|
|||||
