Key Features

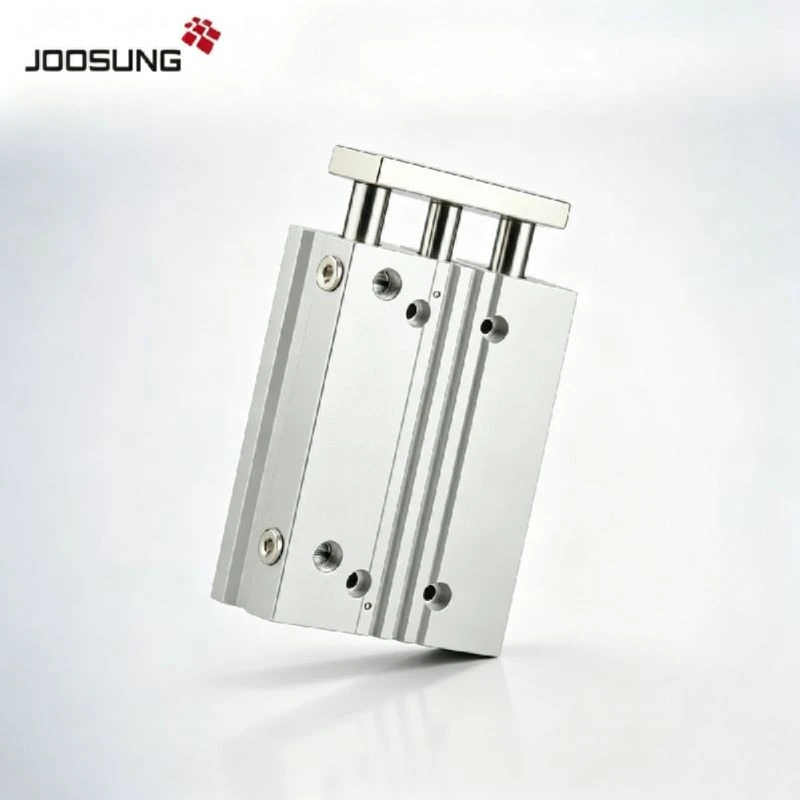

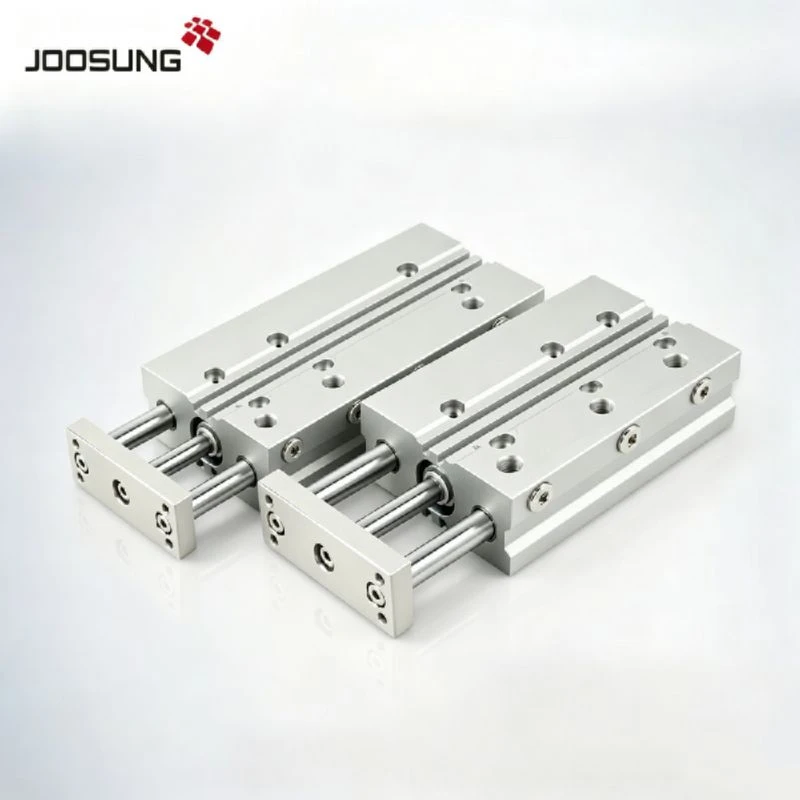

• MCGB-03-25-40 25 mm bore, 40 mm stroke, double acting with NBR cushioning
• For laboratory automation lines, the 25 mm bore MCGB cylinder handles pusher and ejector tasks, and its 40 mm stroke keeps the plate square under side load.
• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Magnetic piston as standard with four sensor grooves for position switches
• Bulk production available with OEM/ODM terms for distributors
Wide Application Scenarios
• Electronics assembly lines
• Battery manufacturing stations
• Printing and converting equipment
Common Inquiries
Q: What certificates do you hold?
A: Products follow CE and RoHS compliance; confirm per model before ordering.
Q: What warranty do you offer?
A: 12-month warranty against manufacturing defects.
Q: Do you provide samples before bulk orders?
A: Yes, samples are available first; sample cost is refundable against the bulk order.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-25-40 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
25 mm |
|
Stroke |
40 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
