Key Features
• MCGB-03-25-30 25 mm bore, 30 mm stroke, double acting with NBR cushioning
• Typical installations include sorting conveyors at automotive parts plants, where the 25 mm bore provides lowering and raising of light fixtures over the 30 mm stroke with keeps the plate square under side load.

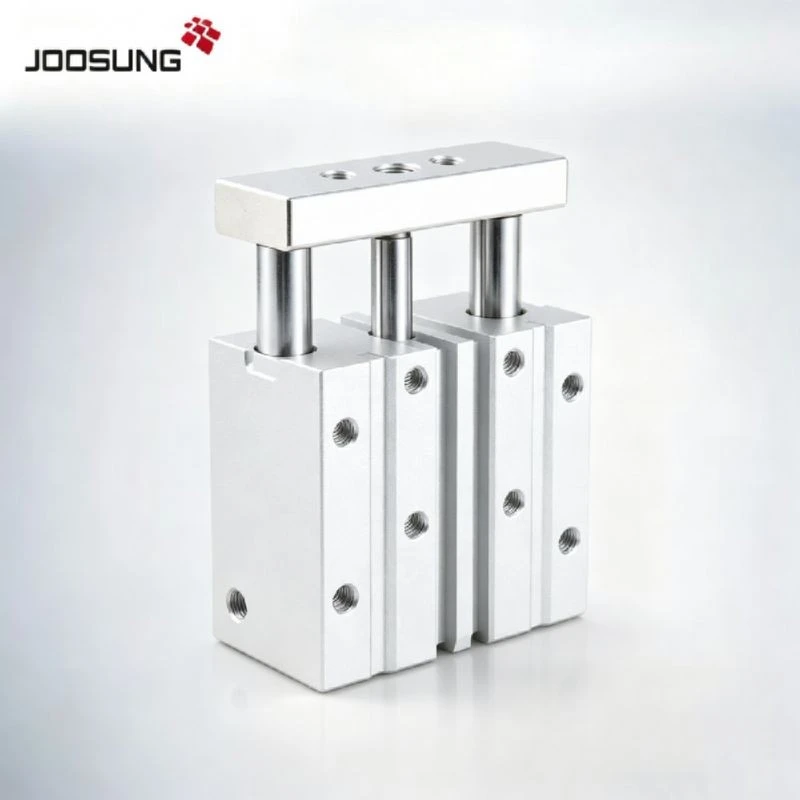

• Guide rods and piston move as one unit for stable travel
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Bulk production available with OEM/ODM terms for distributors
Wide Application Scenarios
• Automotive component fixtures
• Cosmetic filling lines
• Electronics assembly lines
Common Inquiries
Q: What warranty do you offer?
A: 12-month warranty against manufacturing defects.
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-25-30 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
25 mm |
|
Stroke |
30 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
