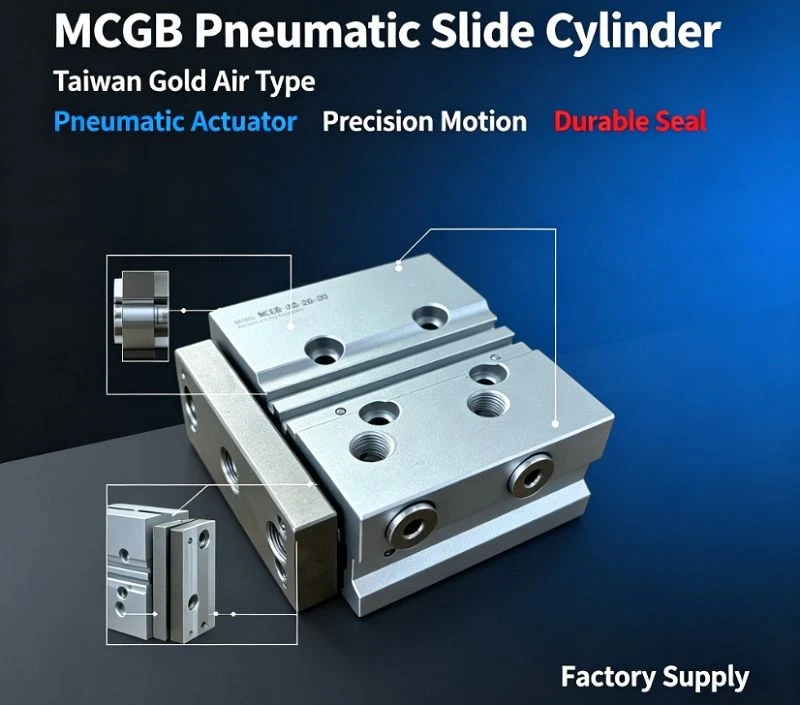

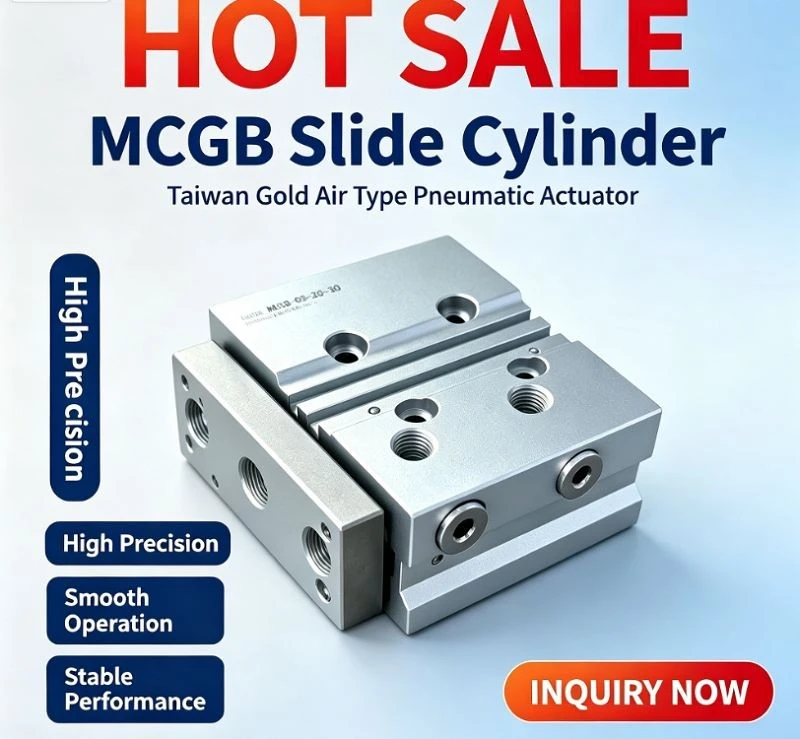

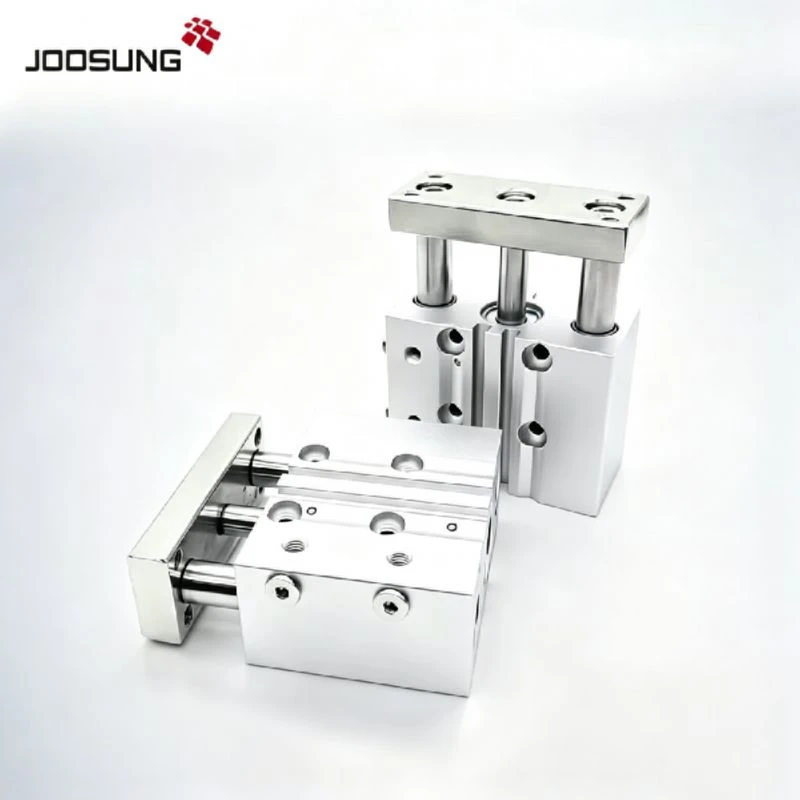

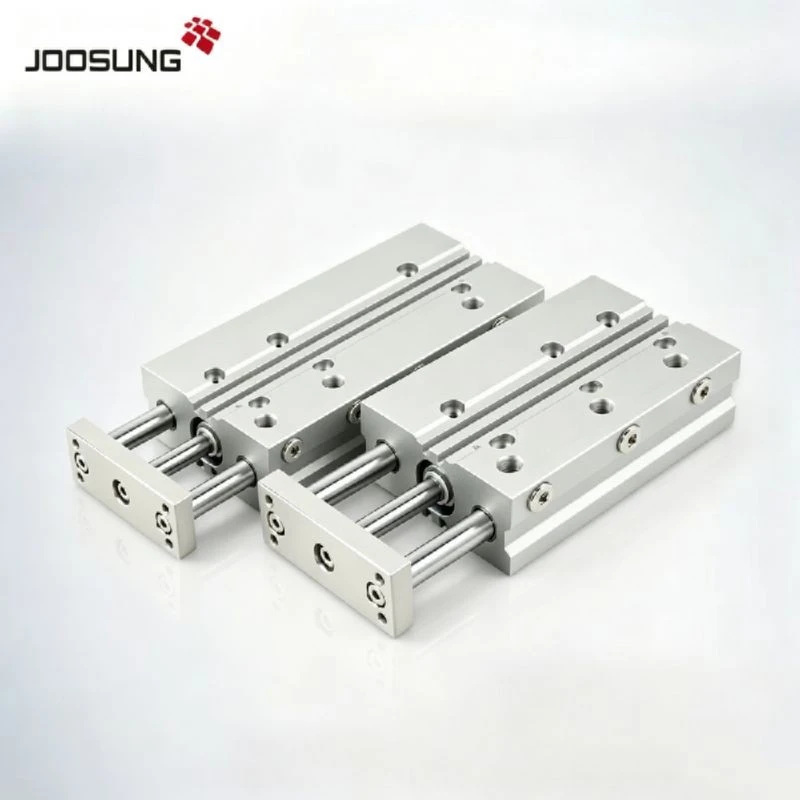

Key Features
• MCGB-03-25-150 25 mm bore, 150 mm stroke, double acting with NBR cushioning
• Typical installations include robotic end-effector frames at automotive parts plants, where the 25 mm bore provides lowering and raising of light fixtures over the 150 mm stroke with holds repeatable position accuracy.
• Guide rods and piston move as one unit for stable travel
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Produced on demand with OEM/ODM and wholesale packaging available
Wide Application Scenarios
• Pharmaceutical packaging equipment
• Medical device assembly
• Logistics sorting systems
Common Inquiries
Q: What warranty do you offer?
A: 12-month warranty against manufacturing defects.
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-25-150 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
25 mm |
|
Stroke |
150 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
