Key Features
• MCGB-03-25-125 25 mm bore, 125 mm stroke, double acting with NBR cushioning
• The 125 mm stroke and 25 mm bore of this MCGB model suit pressing stations where stable clamping moves needs keeps the plate square under side load.

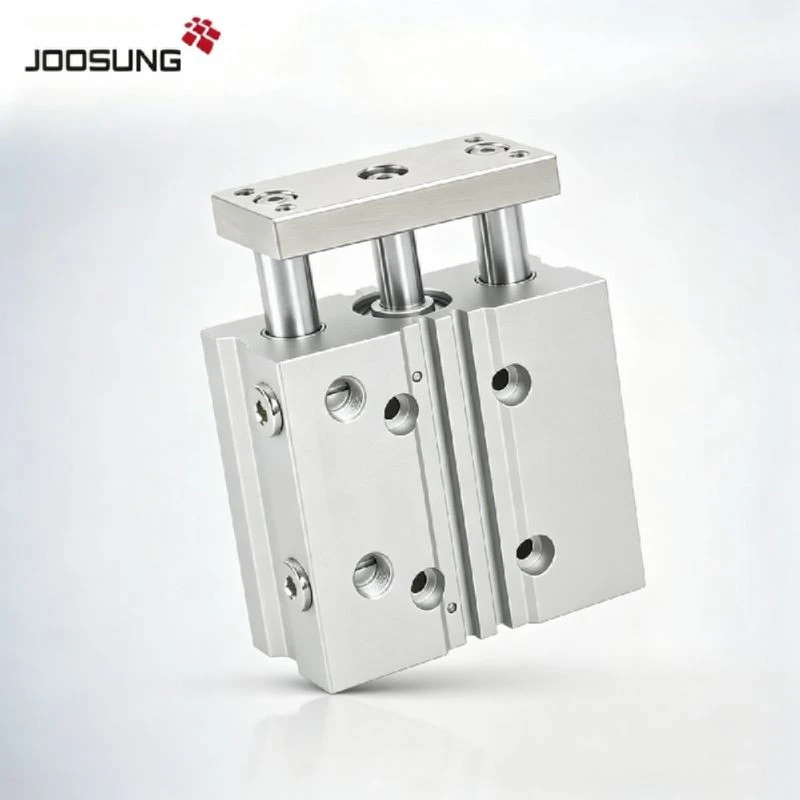

• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Short lead time on demand production, wholesale and OEM welcome
Wide Application Scenarios
• Semiconductor handling equipment
• Logistics sorting systems
• Automotive component fixtures
Common Inquiries
Q: Can the stroke or model be customized?
A: Custom strokes and OEM/ODM versions are available on request.
Q: How are the cylinders packed?
A: Export cartons with foam protection; custom packaging available.
Q: What is the minimum order quantity?
A: MOQ is flexible; typical first order 10-50 pieces and sample orders are welcome.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-25-125 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
25 mm |
|
Stroke |
125 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
