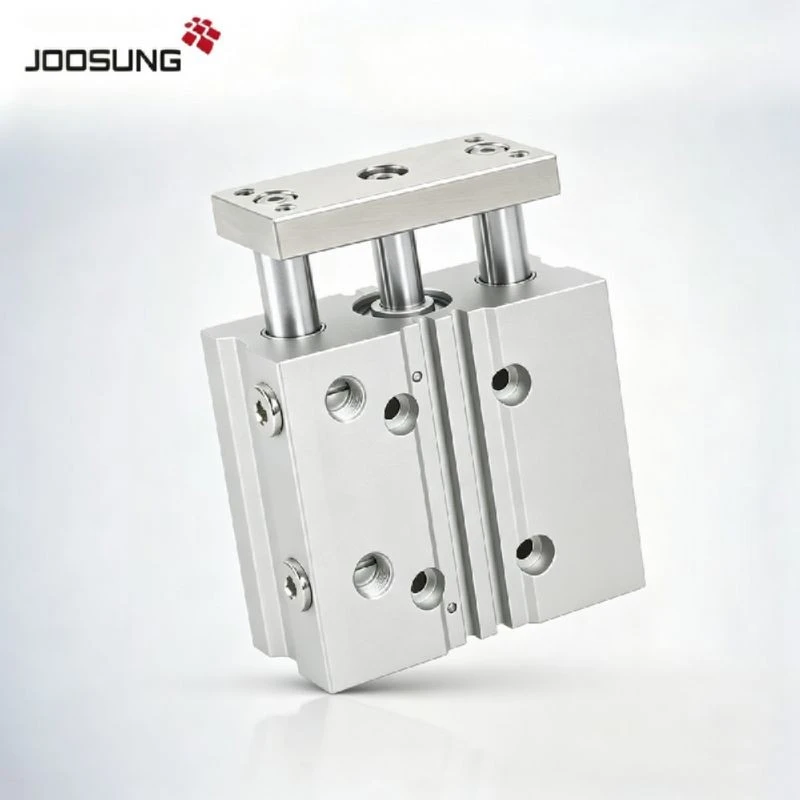

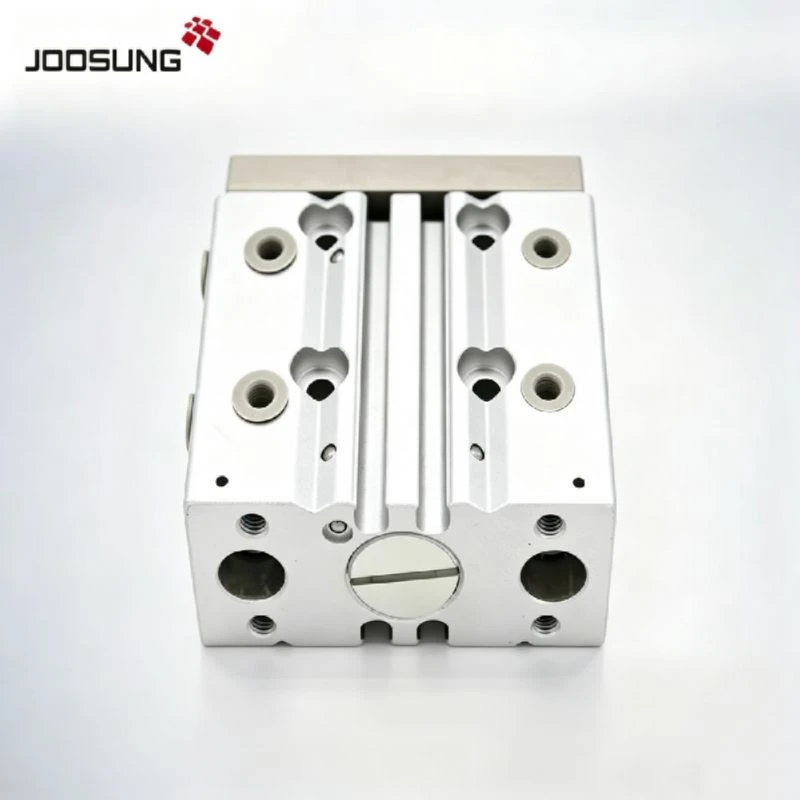

Key Features
• MCGB-03-32-20 32 mm bore, 20 mm stroke, double acting with NBR cushioning
• Typical installations include packaging stations at printing presses plants, where the 32 mm bore provides gentle lifting of tooling plates over the 20 mm stroke with keeps the plate square under side load.
• Slide-bearing guide rods hold the tooling plate square through the full stroke
• Position sensing ready: magnetic piston plus four sensor mounting grooves
• Manufactured on demand with wholesale and OEM/ODM support
Wide Application Scenarios
• Electronics assembly lines
• Battery manufacturing stations
• Printing and converting equipment
Common Inquiries
Q: What is the production lead time?
A: Standard models ship in 7-15 days depending on order quantity.
Q: How do you ship orders?
A: By sea, air or express (DHL/UPS/FedEx), freight prepaid or collect.
Q: Do you provide technical support?
A: Yes, drawing and application support before and after the order.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-32-20 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
32 mm |
|
Stroke |
20 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
