Key Features

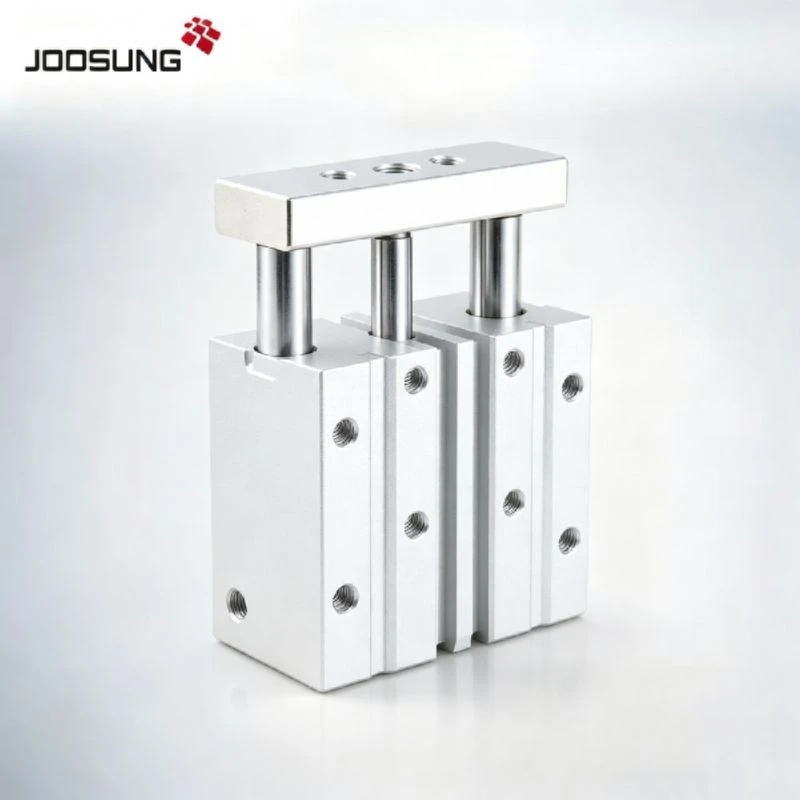

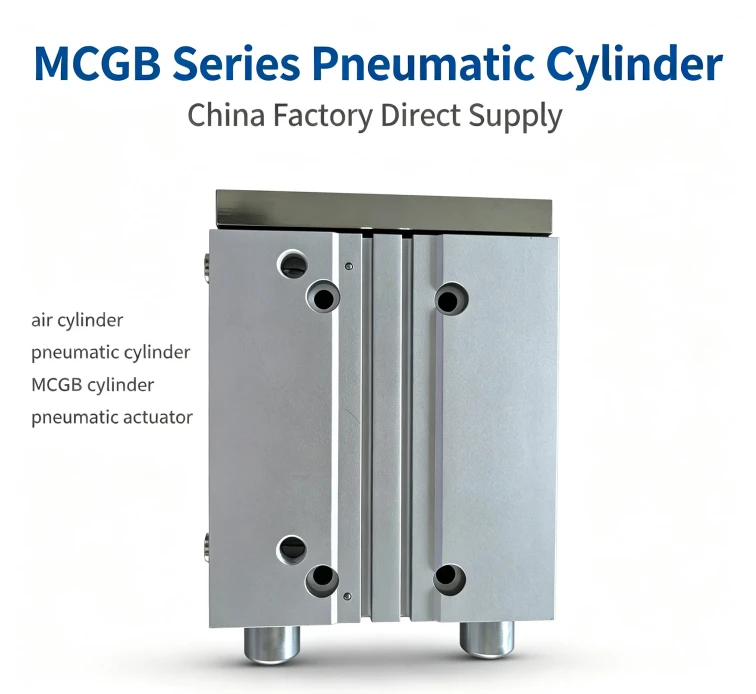

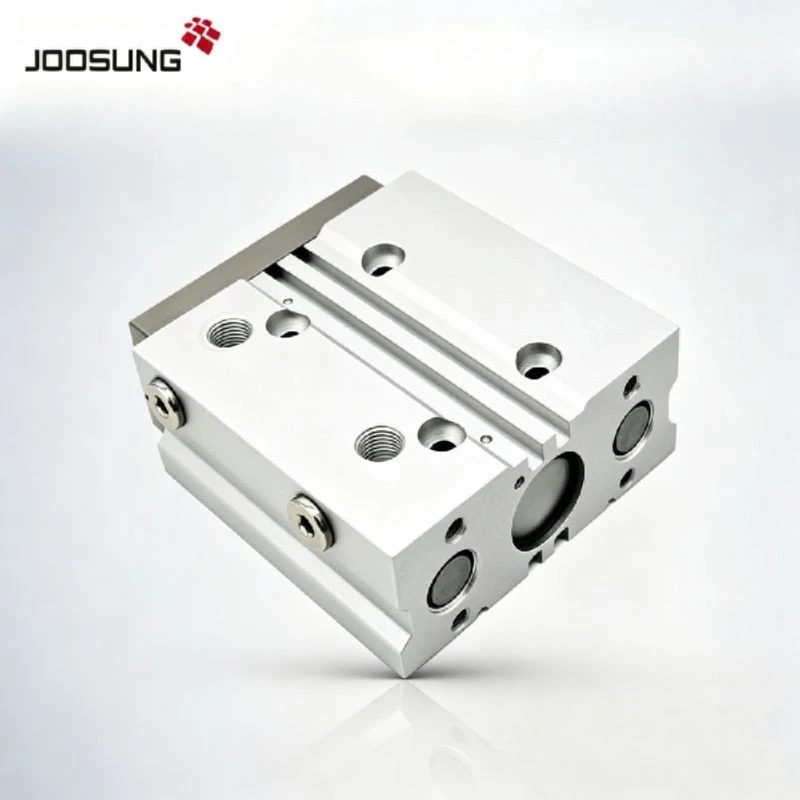

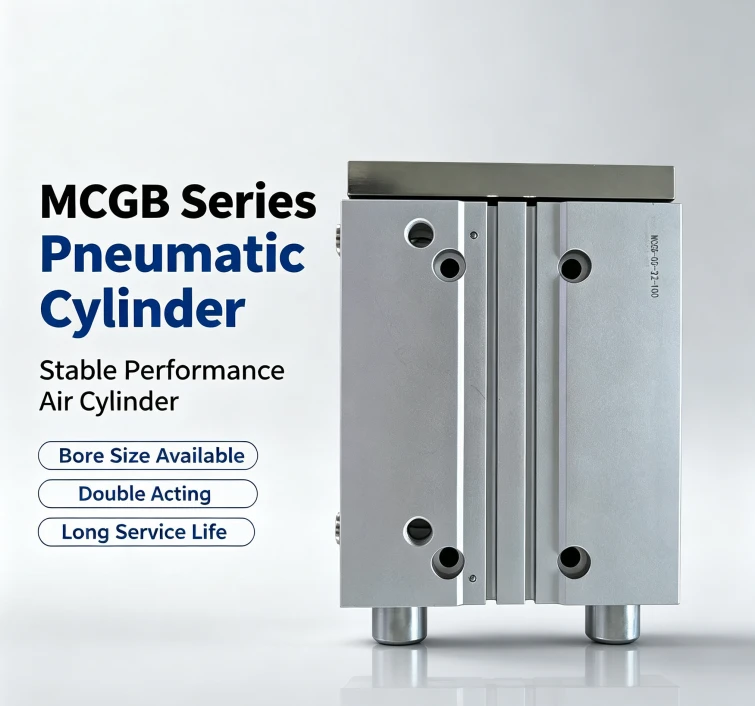

• MCGB-03-32-175 32 mm bore, 175 mm stroke, double acting with NBR cushioning
• The 175 mm stroke and 32 mm bore of this MCGB model suit automated work cells where guided transfer of small parts needs holds repeatable position accuracy.
• Guide rods and piston move as one unit for stable travel
• Magnetic piston standard; grooves suit RCE-type embedded switches
• Short lead time on demand production, wholesale and OEM welcome
Wide Application Scenarios
• Cosmetic filling lines
• Laboratory automation instruments
• Battery manufacturing stations
Common Inquiries
Q: What payment terms do you accept?
A: T/T, L/C and PayPal are accepted; terms negotiable for bulk orders.
Q: Do you have a full series catalog?
A: The complete MCGB series catalog with drawings is available on request.
Q: What is the production lead time?
A: Standard models ship in 7-15 days depending on order quantity.
Request a Quote - Factory direct wholesale and OEM/ODM orders welcome.
Technical Specification
|
Parameter |
Value |
|
Model |
MCGB-03-32-175 |
|
Type |
Mini twin-guide cylinder, slide bearing type (03) |
|
Bore size |
32 mm |
|
Stroke |
175 mm |
|
Action |
Double acting |
|
Working medium |
Filtered air |
|
Working pressure |
0.1 - 1.0 MPa |
|
Proof pressure |
1.5 MPa |
|
Ambient temperature |
-5 to 60 ℃ |
|
Operating speed |
50 - 500 mm/s |
|
Cushion |
NBR cushion pads |
|
Port size |
Rc 1/8 |
|
Magnetic piston |
Yes (standard) |
|
Sensor grooves |
4 (embedded type switches) |
