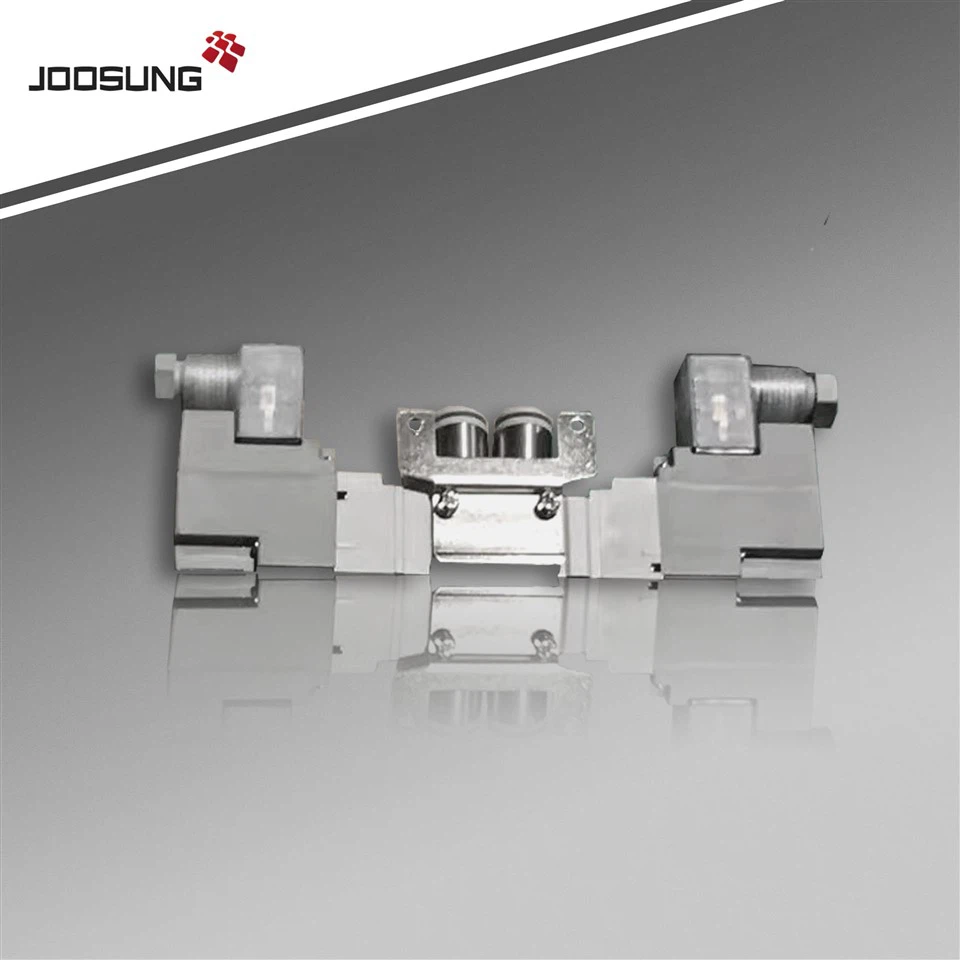

The SY5220-5DZE-C6 Solenoid Valve Manual Button Tests the Status of the Product, when It is Powered Up.two Air Intake Holes Cannot Be Used at the Same Time. when Using, You Need to Block One Side with a Plug
|
Series |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
|
|
Fluid |
Air |
||||
|
Internal pilot |
2 position single |
0.15 to 0.7 |
|||
|
2 position double |
0.1 to 0.7 |
||||
|
3 position |
0.2 to 0.7 |
||||
|
Ambient and fluid temperature (C) |
-10 to 50 (No freezing) |
||||
|
Max.operating |
2 position single,double |
10 |
5 |
5 |
5 |
|
3 position |
3 |
3 |
3 |
3 |
|
|
Manual override (Manual operation) |
Non-locking push type |
||||
|
Pilot exhaust method |
Common exhaust type for main and pilot valve |
||||
|
Lubrication |
Not required |
||||
|
Mounting orientation |
Unrestricted |
||||
|
Impact/Vibration resistance(m/s²)Note) |
150/30 |
||||
|
Enclosure |
Dust proof (*DIN terminal and M8 connector:IP65) |
||||
