Product Parameters

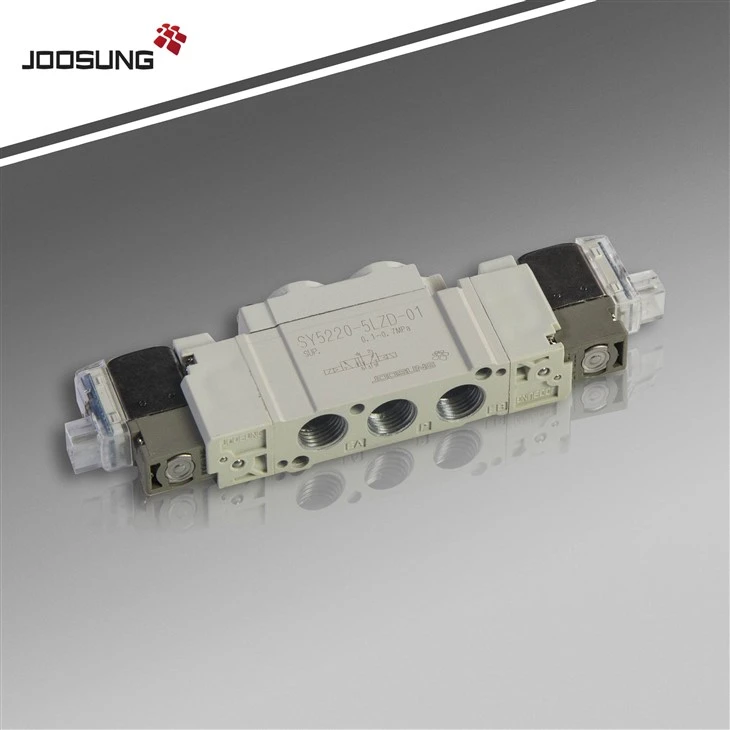

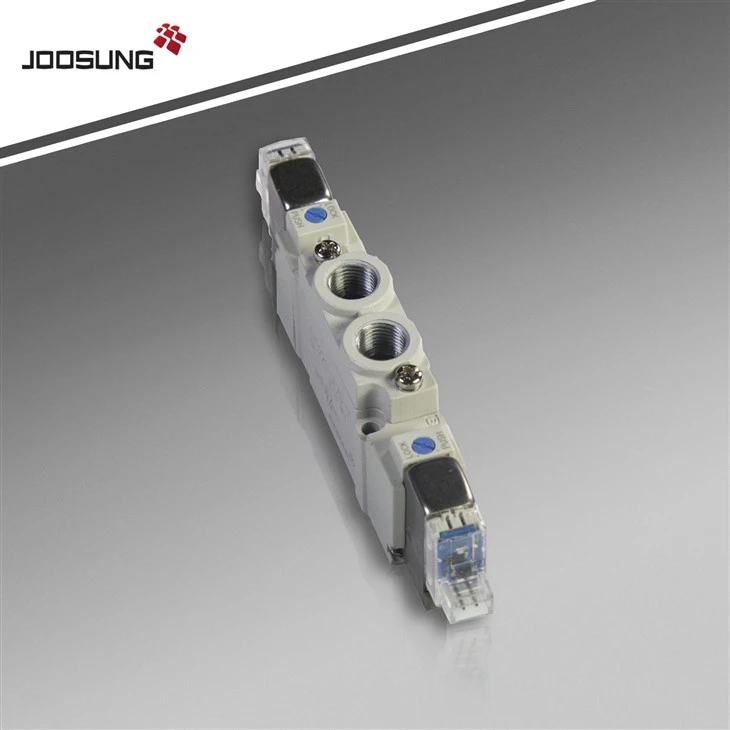

1.SY5220-5YO-01 Double coil pneumatic solenoid valve
2.1.2W low power coil-energy saving and environmental protection
3. Pneumatic solenoid valve SY5220-5YO-01 Enamelled wire is imported from ELEKTRISOLA
4.SY5220-5YO-01 with connector DC24V
|
Series |
Model |
Type of actuation |
For DC |
Port size |
||||||
|
SMC SY5000 |
SY5220-5YO-01 |
2 position double |
24 VDC |
1/8 |
||||||
|
Series |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
||||||
|
Fluid |
Air |
|||||||||
|
Internal pilot |
2 position single |
0.15 to 0.7 |
||||||||
|
2 position double |
0.1 to 0.7 |
|||||||||
|
3 position |
0.2 to 0.7 |
|||||||||
|
Ambient and fluid temperature (C) |
-10 to 50 (No freezing) |
|||||||||
|
Max. operating |
2 position single, double |
10 |
5 |
5 |
5 |
|||||
|
3 position |
3 |
3 |
3 |
3 |
||||||
|
Manual override (Manual operation) |
Non-locking push type |
|||||||||
|
Pilot exhaust method |
Common exhaust type for main and pilot valve |
|||||||||
|
Lubrication |
Not required |
|||||||||
|
Mounting orientation |
Unrestricted |
|||||||||
|
Impact/Vibration resistance(m/s²)Note) |
150/30 |
|||||||||
|
Enclosure |
Dustproof (*DIN terminal and M8 connector:IP65) |
|||||||||
