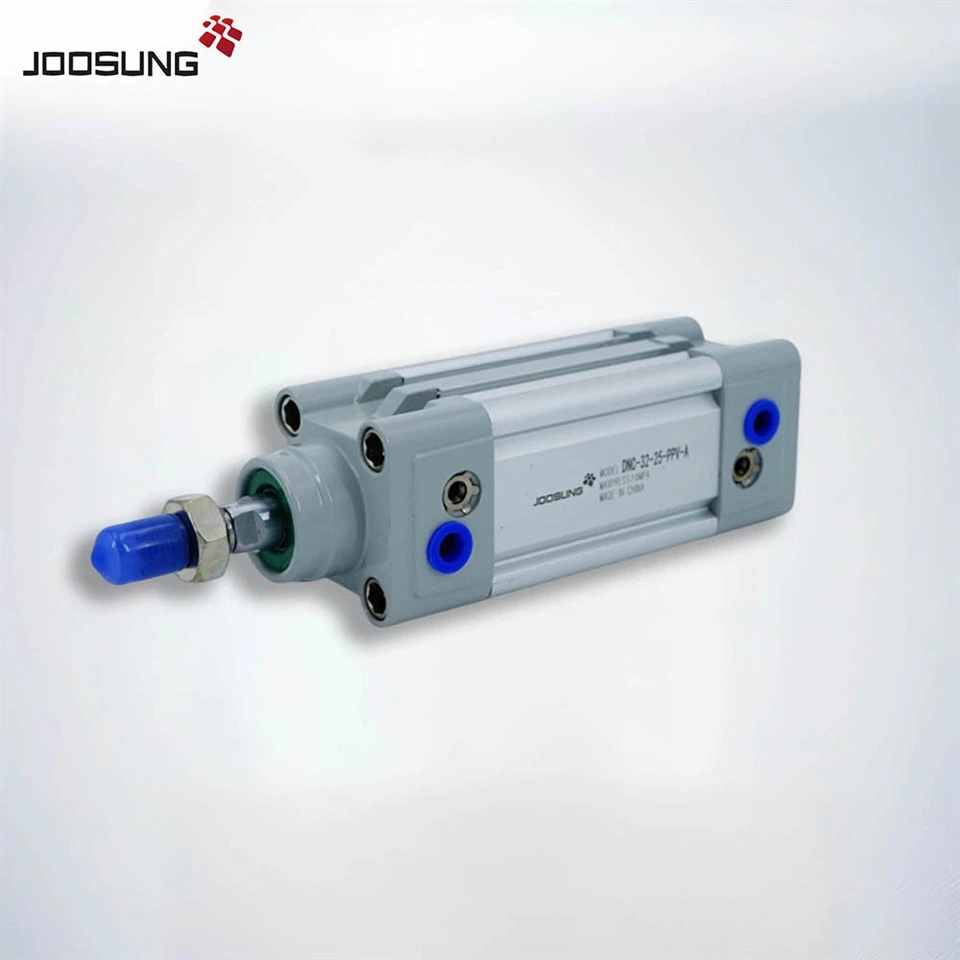

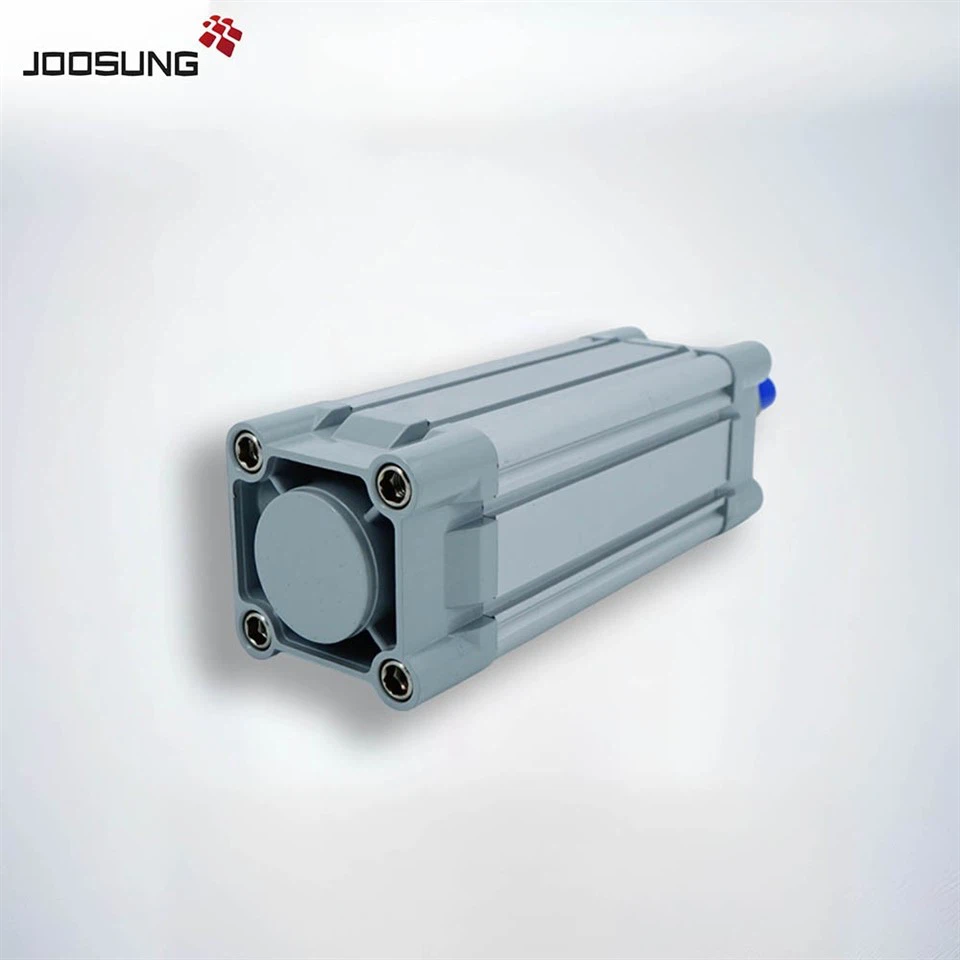

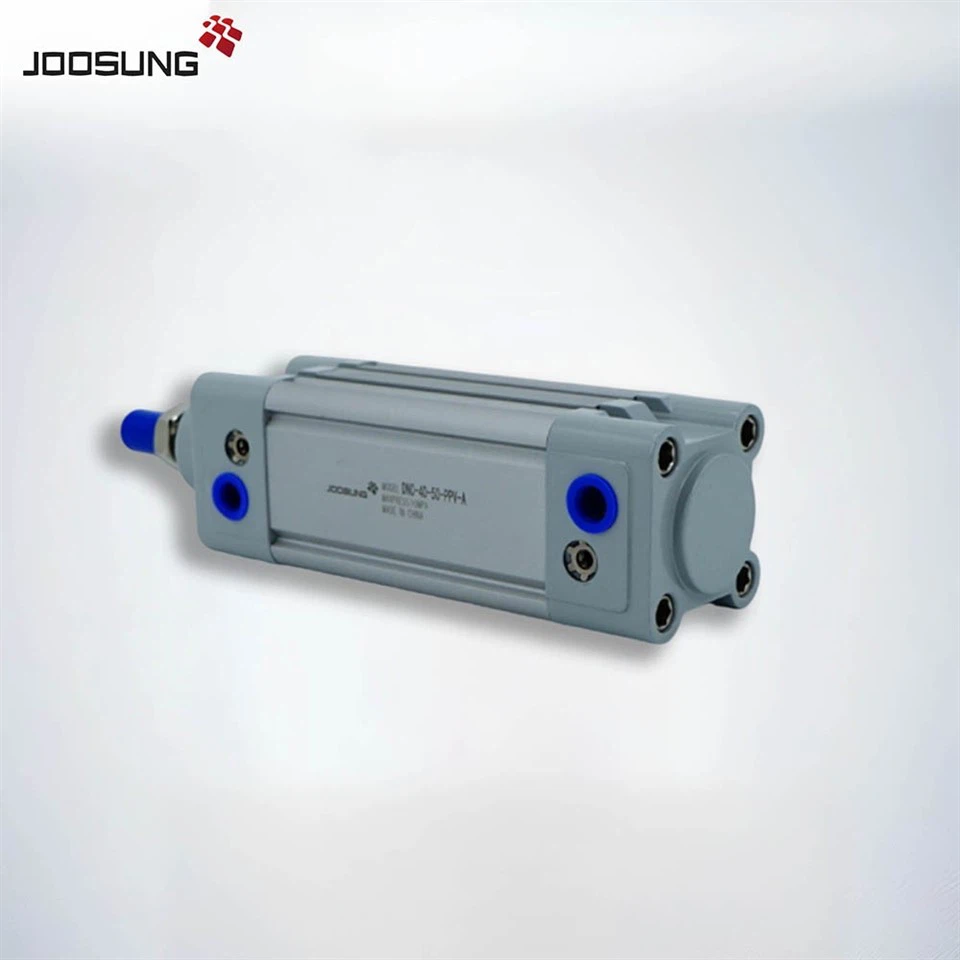

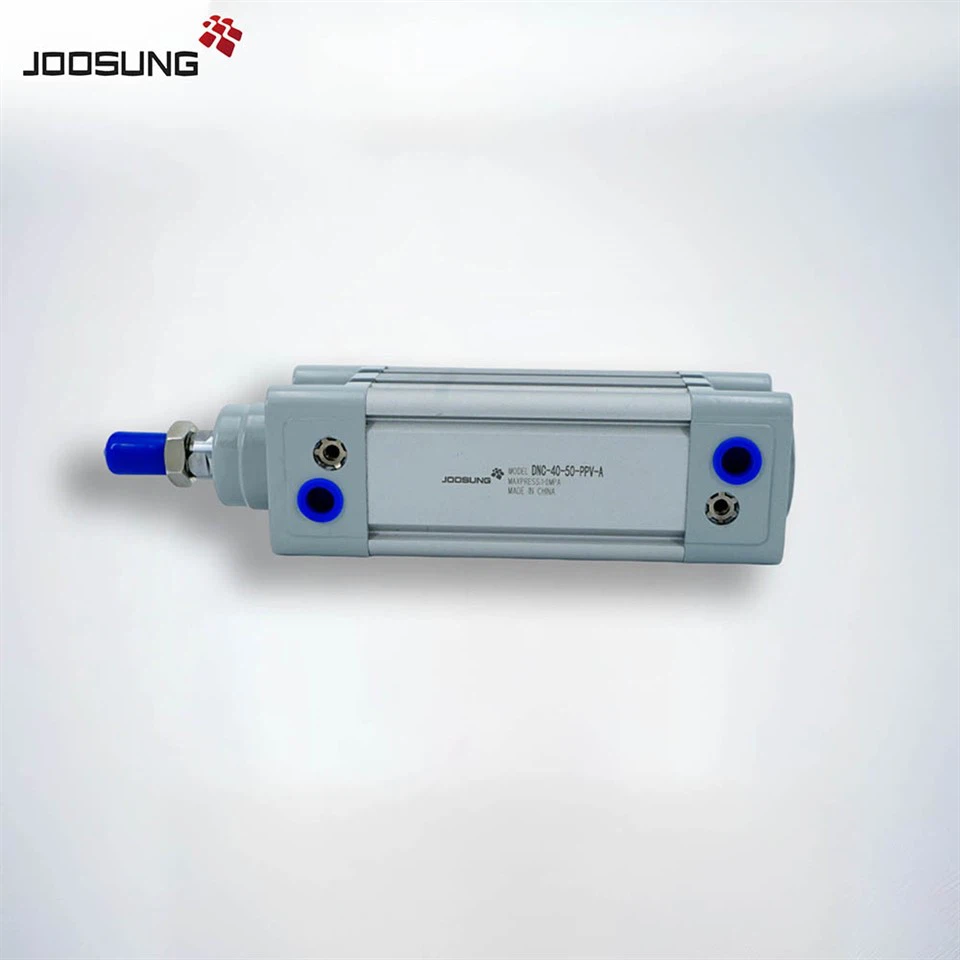

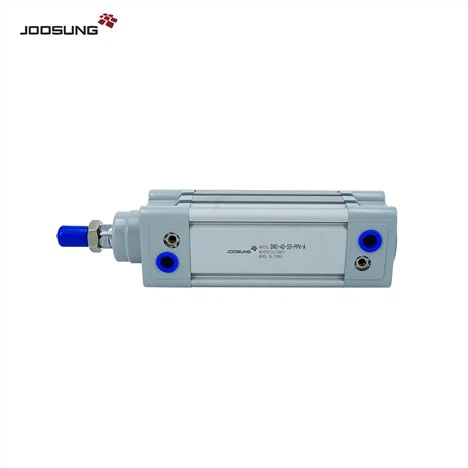

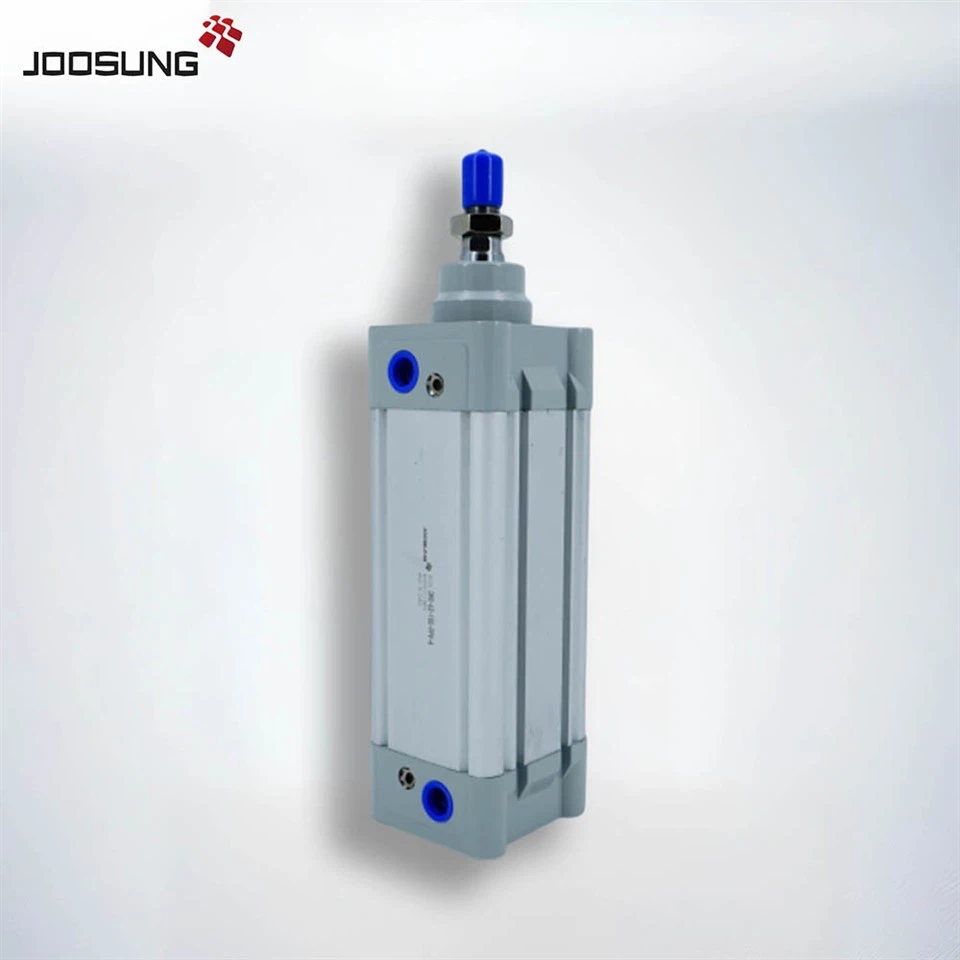

The DNC Series Pneumatic Cylinder is a standard profile air cylinder designed according to ISO 15552 (formerly ISO 6431) standards, widely used across automated industrial machinery, packaging lines, and material handling equipment. Its robust aluminum alloy body, high-precision piston rod, and adjustable air cushions make it a reliable choice for linear motion applications requiring repeatable performance and long service life.
Available in a broad range of bore sizes (Ø32–125mm) and strokes (customizable), the DNC cylinder supports various mounting accessories, including clevis, foot, flange, and trunnion, making it easy to integrate into both new and retrofit systems. The double-acting operation ensures smooth motion in both extension and retraction.
|
How to Order DNC Series Pneumatic Cylinder |
||||
|
DNC |
63 |
× 50 |
25 |
S |
|
Series |
Bore |
Stroke |
Adjustable Stroke |
Magnet |
|
DNC:ISO6431 Standard Double Action Type |
16 |
25mm |
S:With magnet |
|
|
DNCD:ISO6431 Standard Double-shaft,Double Acting |
20,25 |
50mm |
Blank:With out magnet |
|
|
DNCJ:ISO6431 Double-shaft With Adjusable Stroke |
32,40 |
75mm |
||
Looking for a durable and standardized air cylinder for your factory automation system?
The DNC Series ISO Air Cylinder offers excellent interchangeability, smooth motion, and adjustable cushioning for high-performance industrial actuation.
Large stock available | Custom sizes on request | Get a fast quote today!
Contact us for datasheets, 3D CAD, and technical support!
|
Specification |
|||||||
|
Bore ( m m ) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
Motion Pattern |
Double Action |
||||||
|
Working Medium |
Filtered Air |
||||||
|
Compression Pressure |
1.5MPa |
||||||
|
Max.Operating Pressure |
1.0MPa |
||||||
|
Min.Operating Pressure |
0.1MPa |
||||||
|
Buffer |
Air Buffer(Standard) |
||||||
|
Condition Temperature |
5-60℃ |
||||||
|
Operating Speed |
50-500mm/s |
||||||
|
Margin of Stroke Error(mm) |
0-250 251-1000 1001-1500 |
||||||
|
Operating Life |
Not Less Than 4000km |
||||||
|
Lubricate |
Not Necessary+1.0 |
||||||
|
Port Size |
G1/8 |
G1/4 |
G3/8 |
G1/2" |
|||
|
Available DNC Series Models |
||||
|
DNC32X25 |
DNC32X50 |
DNC32X75 |
DNC32X100 |
DNC32X125 |
|
DNC32X150 |
DNC40X50 |
DNC40X75 |
DNC40X100 |
DNC40X125 |
|
DNC40X150 |
DNC40X175 |
DNC40X200 |
DNC40X250 |
DNC50X50 |
|
DNC50X75 |
DNC50X80 |
DNC50X100 |
DNC50X125 |
DNC50X150 |
|
DNC50X160 |
DNC50X175 |
DNC50X200 |
DNC50X250 |
DNC50X300 |
|
DNC63X75 |
DNC63X80 |
DNC63X100 |
DNC63X125 |
DNC63X150 |
|
DNC63X200 |
DNC63X250 |
DNC63X300 |
DNC63X350 |
DNC80X80 |
|
DNC80X100 |
DNC80X125 |
DNC80X150 |
DNC80X175 |
DNC80X200 |
|
DNC80X250 |
DNC80X300 |
DNC80X350 |
DNC80X400 |
DNC80X450 |
