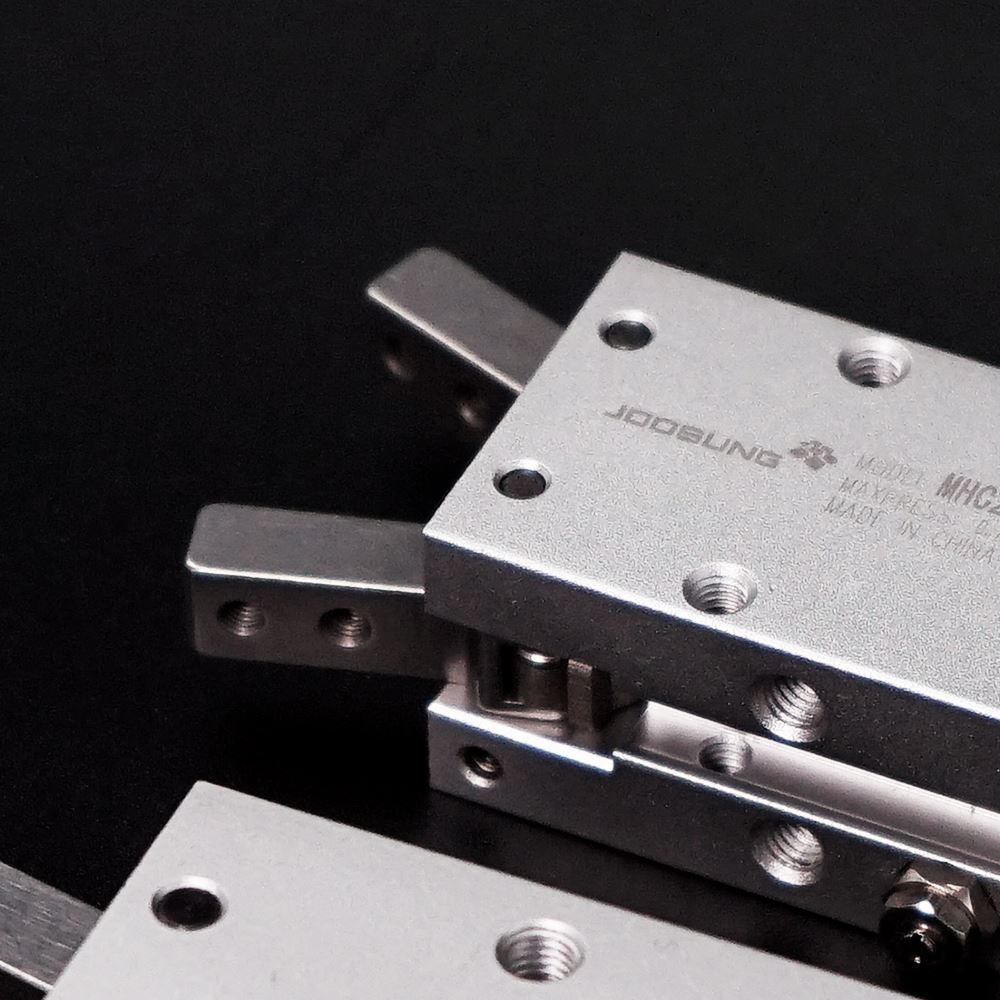

Cylinder, solenoid valve and its fittings are the most basic three components in the area of pneumatic.

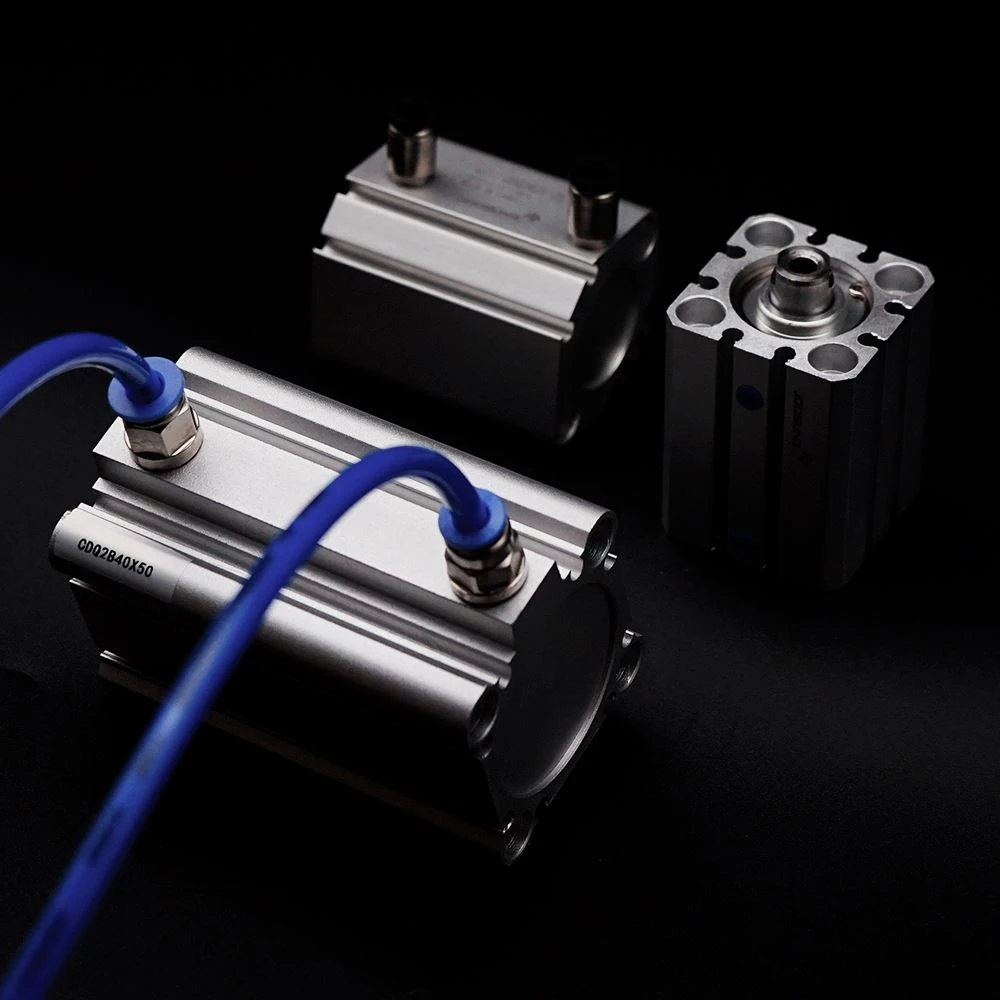

Double acting cylinder, is the need to choose two five - way solenoid valve.Connecting these components needs to use pneumatic joints, PU tubes (specific type of what to choose.It needs to be decided according to the threaded hole on the cylinder or solenoid valve.

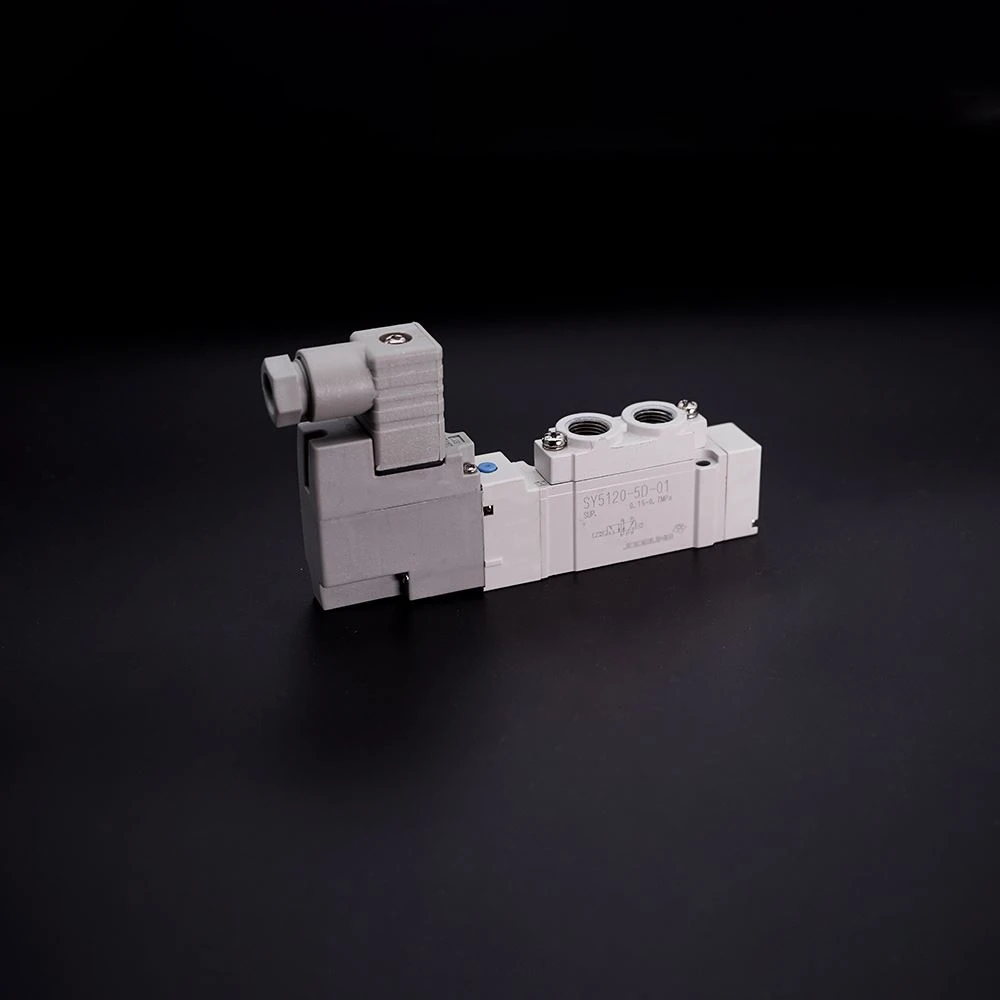

The solenoid valve has five threaded holes, three on one side and two on the other.The larger one in the middle of the side of the three holes is the air inlet, which is connected to the triplet (note that the triplet is directional) and the two next to it are the exhaust holes. The exhaust holes only need to be equipped with silencers.
The other side of the two holes, is the work hole, the two holes are connected with the cylinder before and after the end cover on the two holes, so basically assembled.Maintain the following airflow, the pressure regulating valve is generally adjusted 4-5Mpa pressure can be energized by the solenoid valve, power off, to control the reciprocating motion of the cylinder piston.
