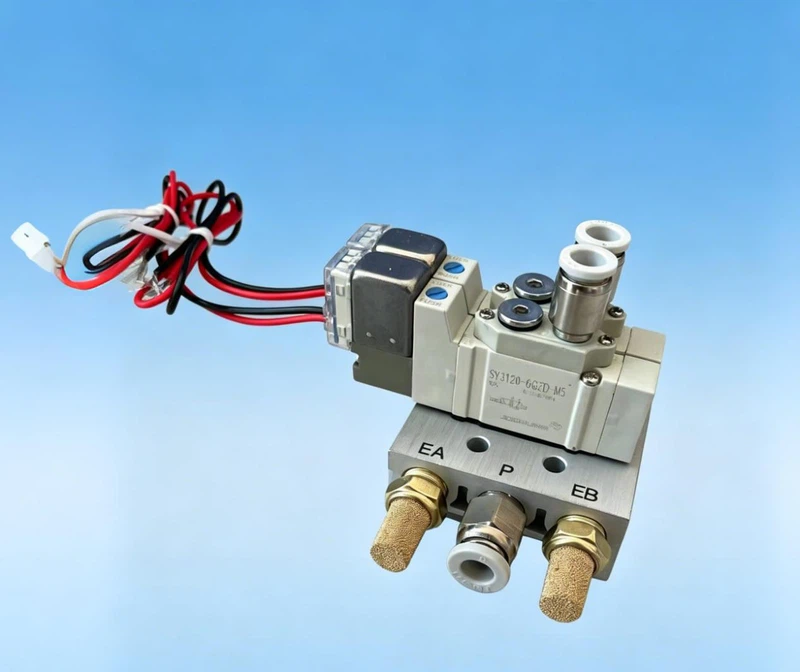

Solenoid valves are mainly divided into 3 types by working principle: direct acting, semi-direct, and pilot operated, with 6 subcategories based on structure and material.
1. Direct Acting Solenoid Valve
Principle:
Energized with power → magnetic force lifts closure member, valve opens;
De-energized without power→ spring resets, valve closes.
Features: Works for vacuum/negative/zero pressure; Nominal diameter ≤25mm.
2. Semi-Direct Acting Solenoid Valve
Principle: Combines direct & pilot principles. No pressure difference: direct magnetic force opens valve; With pressure difference: pressure differential pushes main valve open.
Features: Works for zero pressure/vacuum/high pressure; High power; Horizontal installation required.
3. Pilot Operated Solenoid Valve
Principle:
Energized → pilot orifice opens, pressure differential opens valve;
De-energized → pilot orifice closes, valve shuts.
Features: High pressure applicable; Customizable installation; Requires minimum pressure differential.
