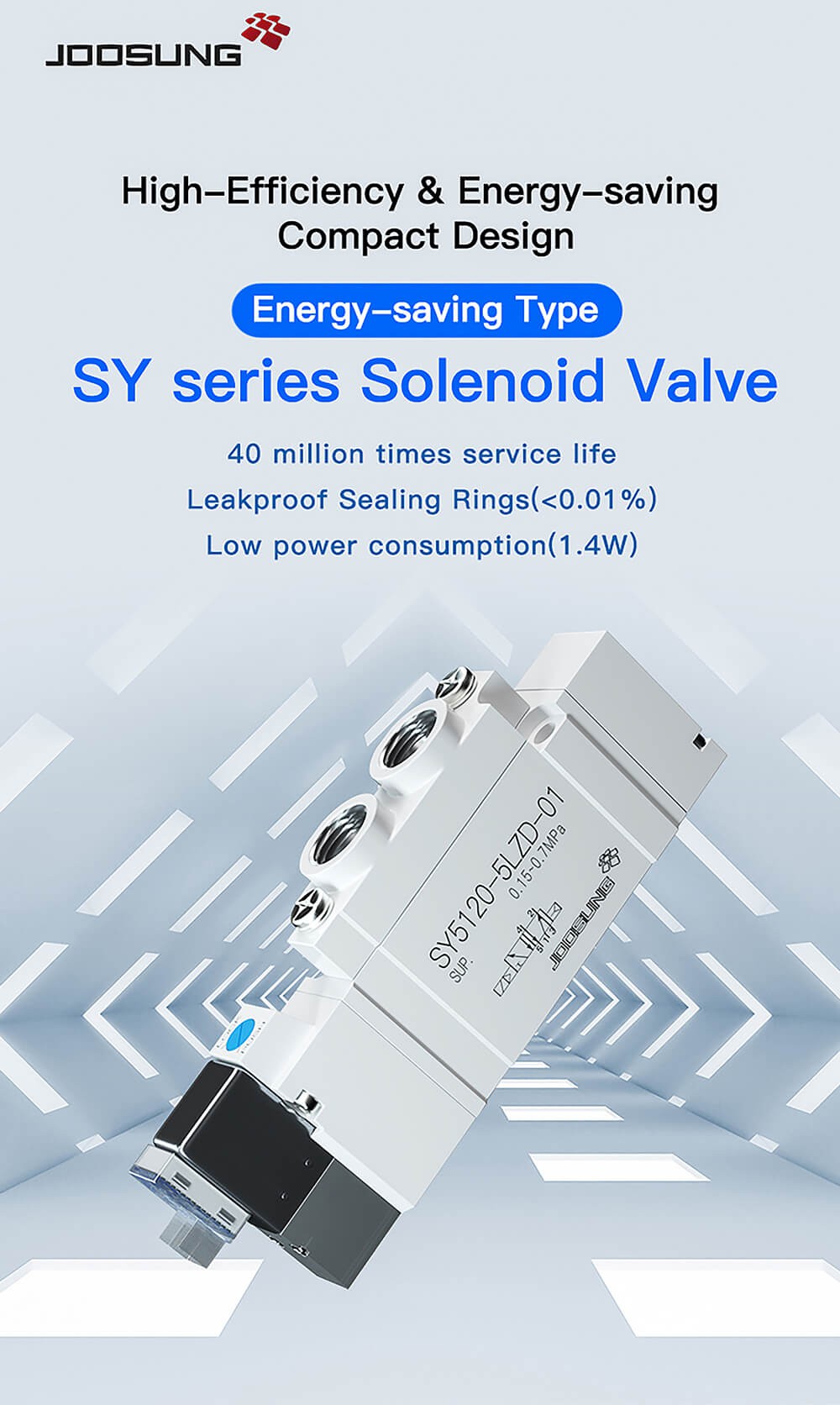

SY5220-5DZ-01 Pneumatic solenoid valve is a device that uses an electric current to control the flow of air or gas in a pneumatic system. It consists of a solenoid coil, a plunger, and a valve body with ports for the inlet and outlet of the fluid. Pneumatic solenoid valves are used to operate pneumatic actuators, such as cylinders, motors, or diaphragms, that perform various tasks in automation and control applications.
|
Series |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
|
|
Fluid |
Air |
||||
|
Internal pilot |
2 position single |
0.15 to 0.7 |
|||
|
2 position double |
0.1 to 0.7 |
||||
|
3 position |
0.2 to 0.7 |
||||
|
Ambient and fluid temperature (C) |
-10 to 50 (No freezing) |
||||
|
Max.operating |
2 position single,double |
10 |
5 |
5 |
5 |
|
3 position |
3 |
3 |
3 |
3 |
|
|
Manual override (Manual operation) |
Non-locking push type |
||||
|
Pilot exhaust method |
Common exhaust type for main and pilot valve |
||||
|
Lubrication |
Not required |
||||
|
Mounting orientation |
Unrestricted |
||||
|
Impact/Vibration resistance(m/s²)Note) |
150/30 |
||||
|
Enclosure |
Dust proof (*DIN terminal and M8 connector:IP65) |
||||
