Product Parameters

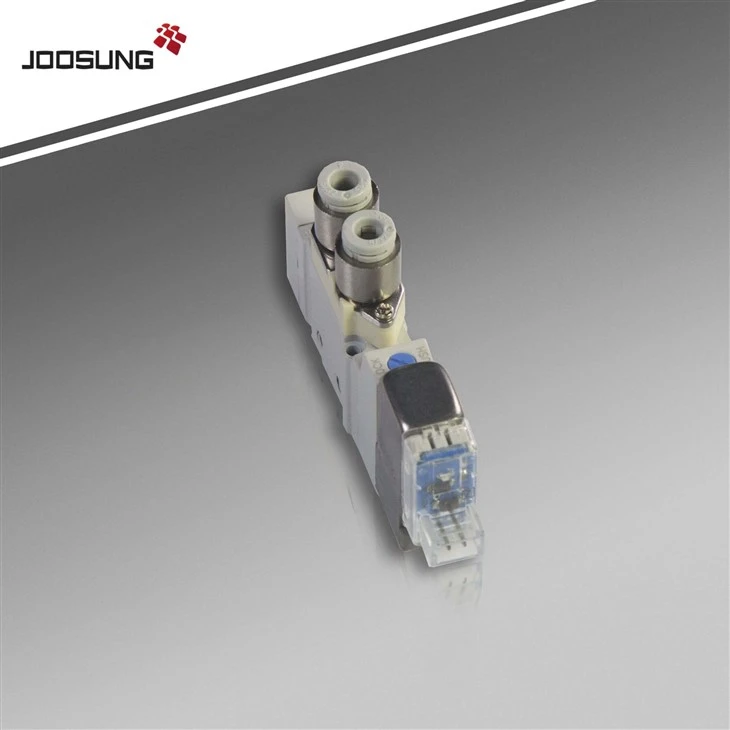

SY3120-5LZD-C4 Solenoid valve up to 80 million times of service life
SY3120-5LZD-C4 Solenoid valve in state 1, the supply airport connects to port 2, which pushes the piston of the cylinder to the right. Port 4 exhausts the air from the other side of the cylinder through port 5. In state 2, the supply airport connects to port 4, which pushes the piston of the cylinder to the left. Port 2 exhausts the air from the other side of the cylinder through port 3
|
Series |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
|
|
Fluid |
Air |
||||
|
Internal pilot |
2 position single |
0.15 to 0.7 |
|||
|
2 position double |
0.1 to 0.7 |
||||
|
3 position |
0.2 to 0.7 |
||||
|
Ambient and fluid temperature (C) |
-10 to 50 (No freezing) |
||||
|
Max. operating |
2 position single, double |
10 |
5 |
5 |
5 |
|
3 position |
3 |
3 |
3 |
3 |
|
|
Manual override (Manual operation) |
Non-locking push type |
||||
|
Pilot exhaust method |
Common exhaust type for main and pilot valve |
||||
|
Lubrication |
Not required |
||||
|
Mounting orientation |
Unrestricted |
||||
|
Impact/Vibration resistance(m/s²)Note) |
150/30 |
||||
|
Enclosure |
Dust proof (*DIN terminal and M8 connector:IP65) |
||||
