4V130C-M5 AC 220V AIRTEC 4V130 Pneumatic Solenoid Valve
Send Inquiry
Product Details of4V130C-M5 AC 220V AIRTEC 4V130 Pneumatic Solenoid Valve

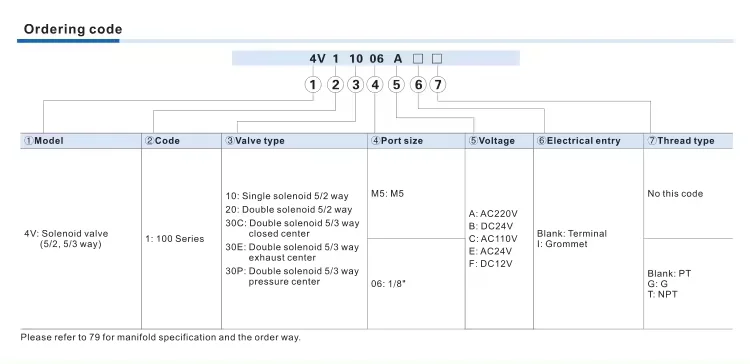

Ordering code
|
4V
|
1
|
10
|
/
|
06
|
AC110V
|
|
Specification model
|
Serial code
|
Coil and positions
|
|
Connect tube size
|
Voltage
|
|
5 way 2(3) positionsolenoid valve
|
1:100 series
|
10:2/5 single way 2 positions
|
|
M5:M5x0.8
|
DC12V
|
|
|
|
20:2/5 2 head 2 position
|
|
06:1/8"
|
DC24V
|
|
|
|
30C:3/5 2 head 3 position sealed type
|
|
|
AC24V50/60HZ
|
|
|
|
30E:3/5 2 head 3 position exhaust type
|
|
|
AC110V50/60Hz
|
|
|
|
30P:3/5 2 head 3 position pressure type
|
|
|
AC220V50/60Hz
|
|
|
|
|
|
|
AC380V50/60Hz
|
|
Model
|
4V130C-06 DC24V
|
4V130C-M5 DC24V
|
4V130C-06 AC 220V
|
4V130C-M5 AC 220V
|
|
|
4V130E-06 DC24V
|
4V130E-M5 DC24V
|
4V130E-06 AC 220V
|
4V130E-M5 AC 220V
|
||
|
4V130P-06 DC24V
|
4V130P-M5 DC24V
|
4V130P-06 AC 220V
|
4V130P-M5 AC 220V
|
||
|
Working medium
|
Air
|
||||
|
Action type
|
Internal pilot
|
||||
|
Positions
|
5 way 2 position
|
5 way 3 position
|
5 way 3 position
|
/
|
|
|
Effective cross- 10mm-(CV=0.56) 7mm2(CV=0.40) sectional area(mm²)
|
10mm-(CV=0.56)
|
7mm2(CV=0.40)
|
12mm-(CV=0.67)
|
/
|
|
|
lubricating oil
|
No need
|
||||
|
Pressure
|
1.5~8.0kgf/cm²
|
||||
|
Max pressureresistance
|
10.5kgf/cm2
|
||||
|
Working temperature
|
5~60℃
|
||||
|
Voltage range
|
+/-10%
|
||||
|
power consumption
|
AC:1.3W DC:1.5W
|
||||
|
Insulation
|
F level
|
||||
|
Protection level
|
IP65(DIN40050)
|
||||
|
Connection type
|
Direct outlet or terminal type
|
||||
|
Max operating frequency
|
5 times per second
|
||||
|
Shortest excitationtime
|
0.05 second
|
||||
|
Parts material
|
Body
|
Aluminum alloy
|
|||
|
Sealing NBR ring
|
NBR
|
||||
Features:
1. Efficient and durable , installation convenient, longer life
2. High quality aluminum valve core with good sealing material ,resistance in service life ,more than 30 millions,
3. these series air control valves are suitable for operating double or single acting cylinders in pneumatic control system.
4. Different colors are optional for body.
5. Precise dimensions and nice appearance
6. Available with single and dual coil versions
7. Coil & Connector Sold Separately 8. Customer specific labels available on request.
