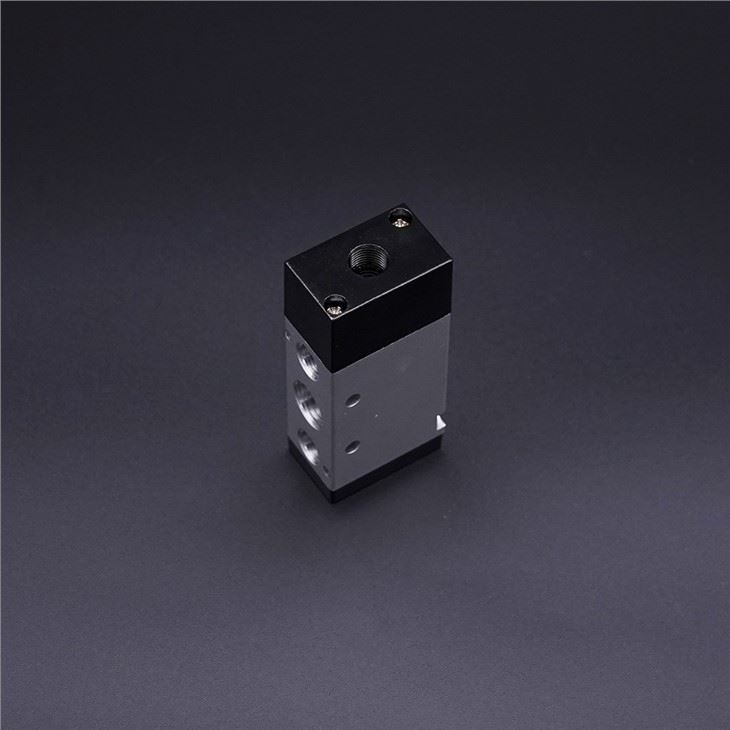

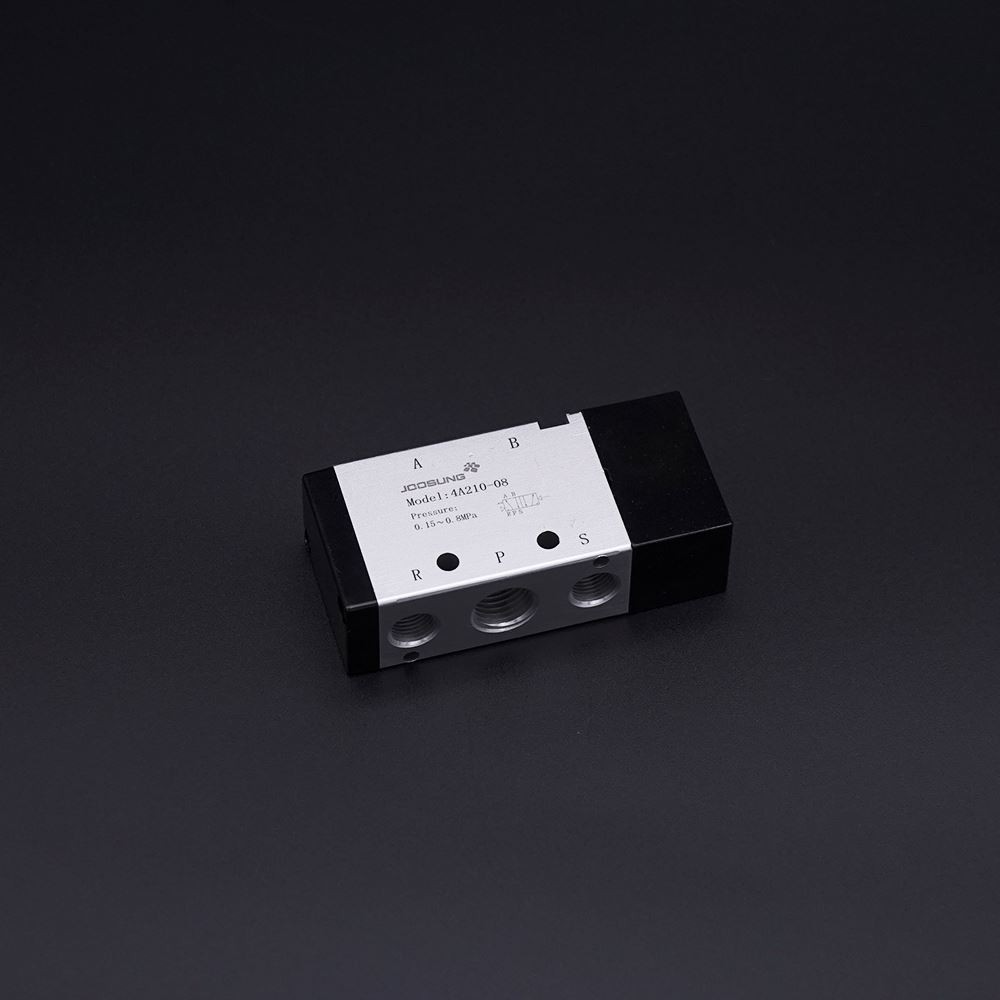

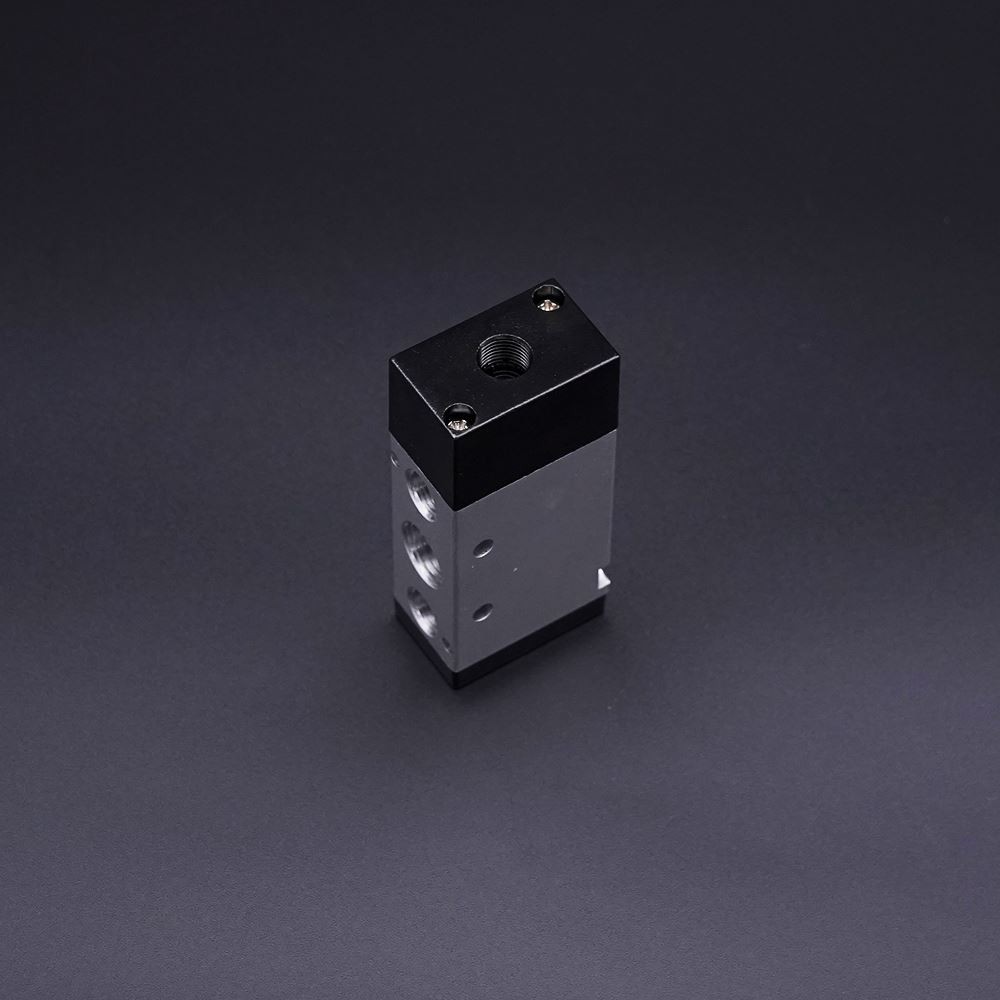

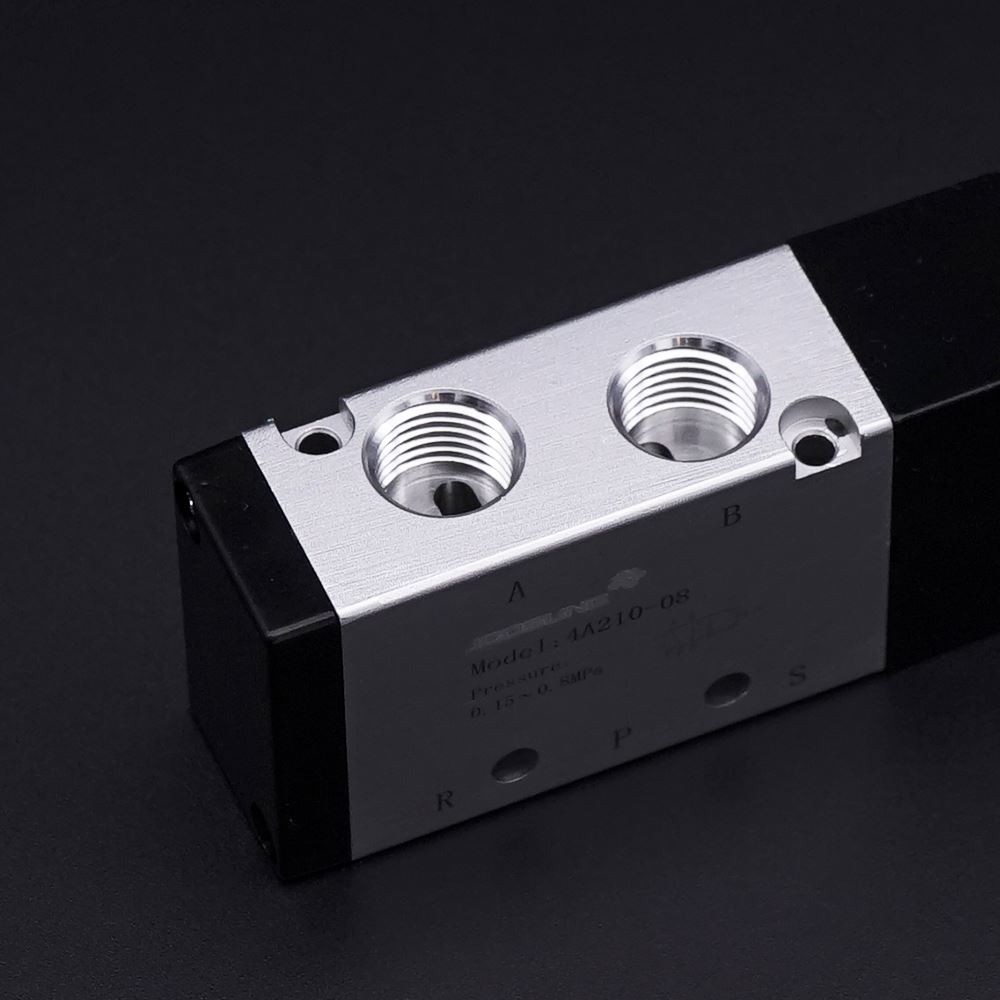

AirTAC 5/2 way Pneumatic Air Pilot Valve 4A210-08 4A210-1/4
Product Features
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.Double control solenoid valves have memory function.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.
6.It is available to form integrated valve group with the base to save installation space.

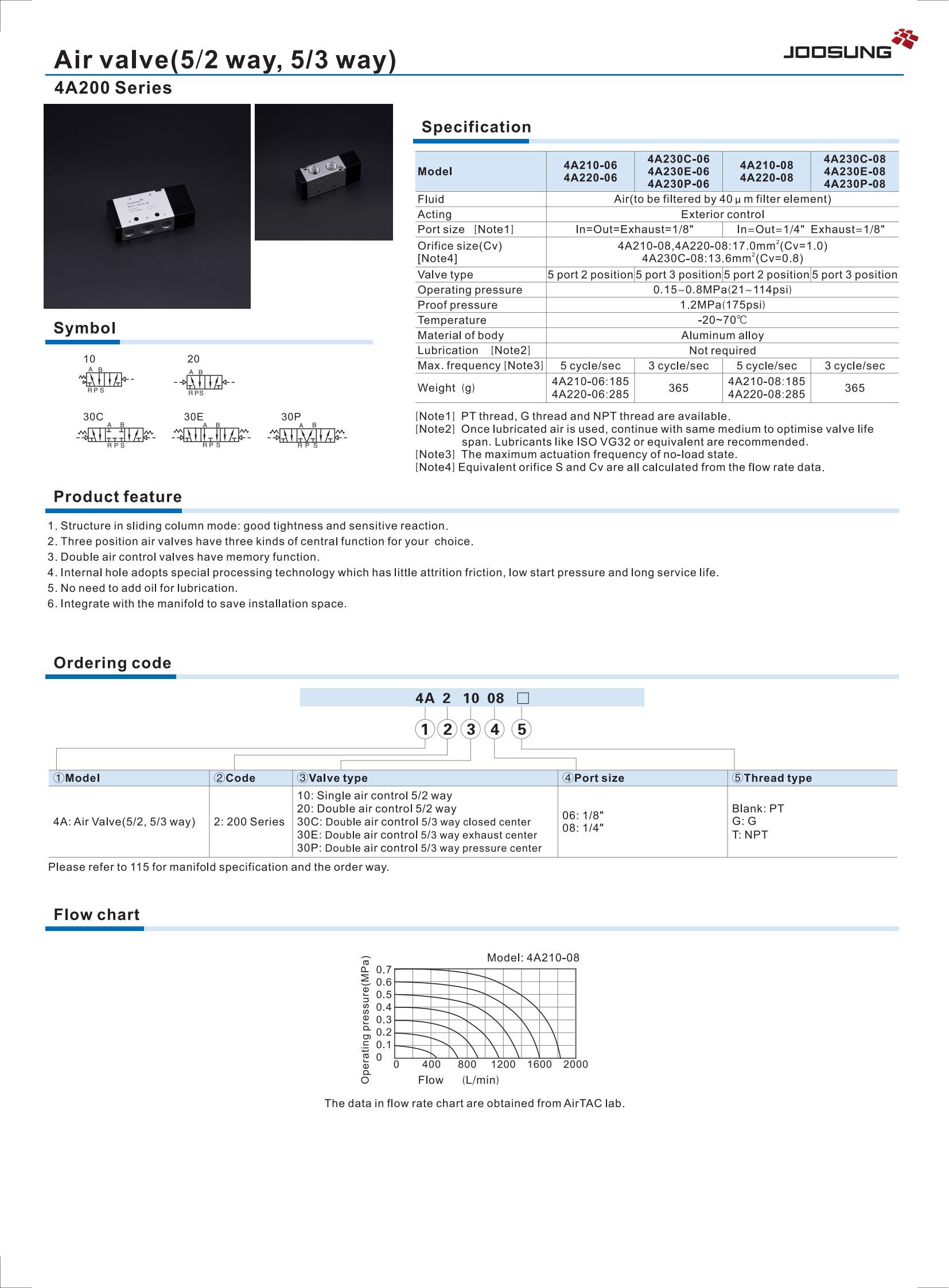

| Model | 4A210-08 |
| Fluid | Air(to be filtered by 40μm filter element) |
| Temperature | -20~70ºC |
| Proof Pressure | 1.5MPa |
| Orifice Size: | 16.0mm²(Cv=0.89) |
| Valve Type: | 5 Port 2 Position |
|  |
 |  |
Other Valves
 |  |  |  |
| 4V210 | 4V310 | 4V410 | 4V series pneumatic solenoid valve |
 |  |  |  |
| High precision thread | 3L series push pull valve | 4R series push pull valve | High precision pilot |
 |  |  |  |
| Valve lever by CNC | 4S series solenoid valve | 3V/3V1/2V series solenoid valve | C4/C6/C8 |
 |  |  |  |
| SY3000 series | 4A Series control valve | 4H series hand valve | SY5000 series |
 |  |  |  |
SY5000 series 2 position double C8 | SY5000 series 2 position double slotted type | SY7000 series DIN terminal type | SY5000 series 3 position closed center |
|
| ||
Q: Did you accept products customization? Do they need mould fee?
A:Yes, we accept products customization. Need mould fee, because products usually need extra mould cost. But we can return the mould fee when you reach a specific quantity.
Q: Can we get free samples?
A: The sample expense and freight expense will be borne by the buyers, and will be returned in the following orders.
Q: How long is the normal production period for a 20-foot shipping container?
A: According to the current productive capacity, usually needs 3-14 days from producing to delivery.
