Products Description

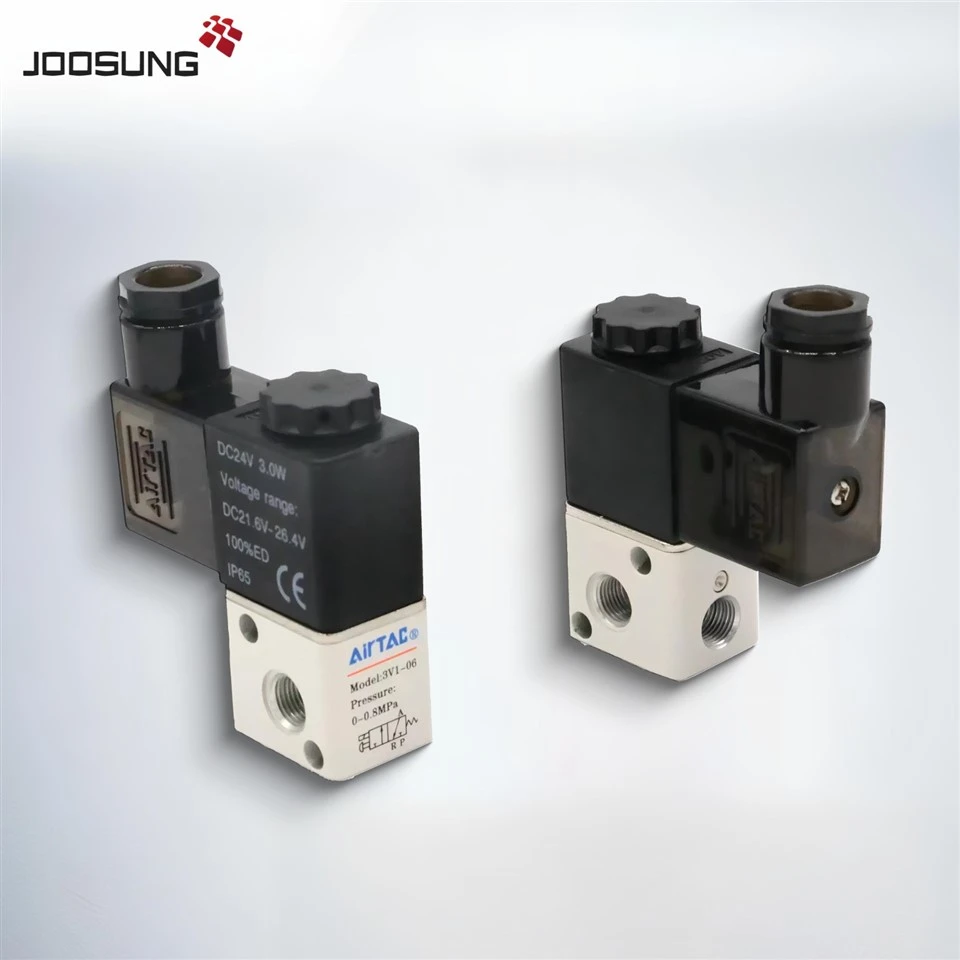

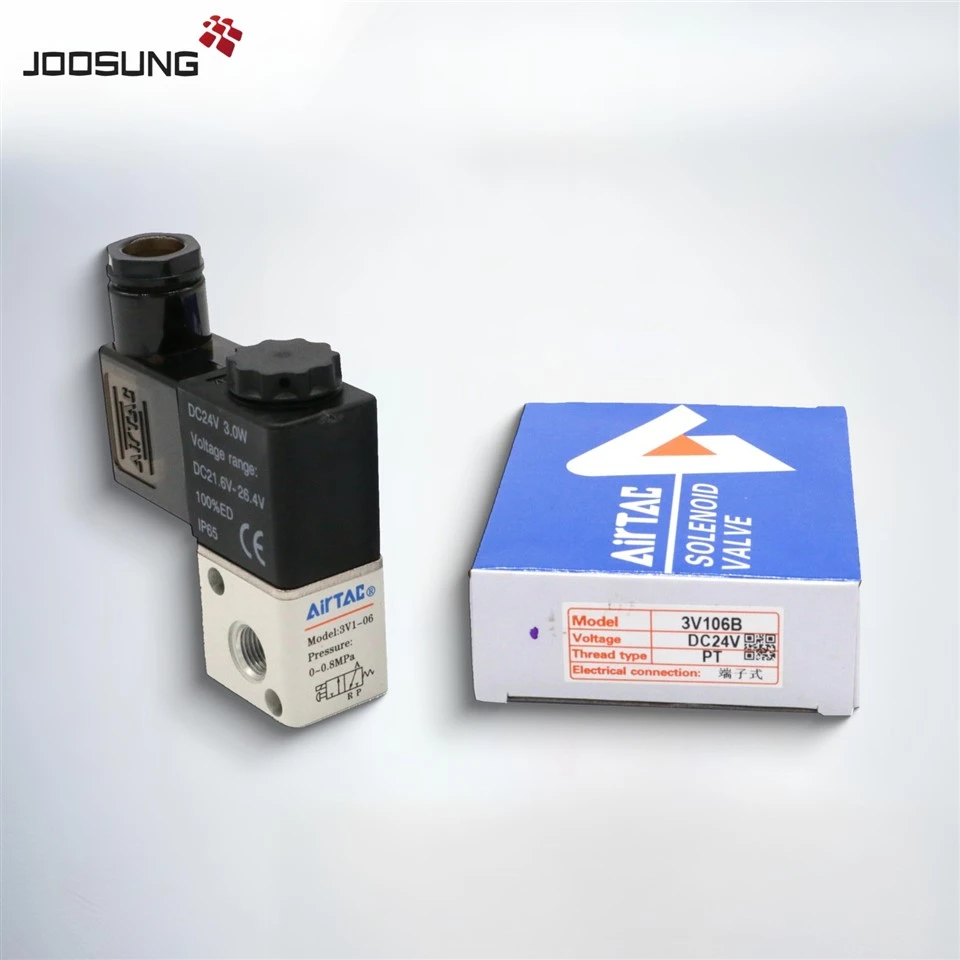

The 3V1 series pneumatic solenoid valves are designed for applications requiring precise air flow control within extremely limited installation spaces. Featuring a miniature body and 3/2 way configuration, these valves provide reliable switching performance for small pneumatic cylinders and actuators. They are widely used in automation systems, testing equipment, and laboratory devices where compact size and lightweight design are essential. As a professional pneumatic supplier in China, we offer 3V1 series solenoid valves at competitive prices with stable availability to support your projects worldwide.
|
How to Order 3V1 Series Solenoid Valve |
|||||
|
3V 1 06 A □ □ |
|||||
|
① ② ③ ④ ⑤ ⑥ |
|||||
|
①Model |
②Code |
③Port size |
④Standard voltage |
⑤Electricalentry |
⑥Thread type |
|
3V:Solenoid valve |
1:1 Series |
M5:M5 |
A:AC220V |
Blank:Terminal |
No this code |
|
06:1/8" |
Blank:PT |
||||
Get in touch with us now to receive full technical details, comprehensive datasheets, and the best quotes for 3V1 series miniature solenoid valves to enhance your compact automation projects.
3V1 Series Solenoid Valve Technical Parameters
|
3V1 Series Solenoid Valve Key Specifications |
||
|
Model |
3V1-M5 |
3V1-06 |
|
Fluid |
Air(to be filtered by 40μm filter element) |
|
|
Acting |
Direct acting |
|
|
Port size [Note1] |
M5 |
1/8" |
|
Valve type |
3 port 2 position |
|
|
Lubrication |
Not required |
|
|
Operating pressure |
0~0.8MPa(0~114psi) |
|
|
Proof pressure |
1.2MPa(175psi) |
|
|
Temperature |
-20~70℃ |
|
|
Orifice size |
Φ1.2mm |
|
|
Material of body |
Aluminum alloy |
|
