Products Description

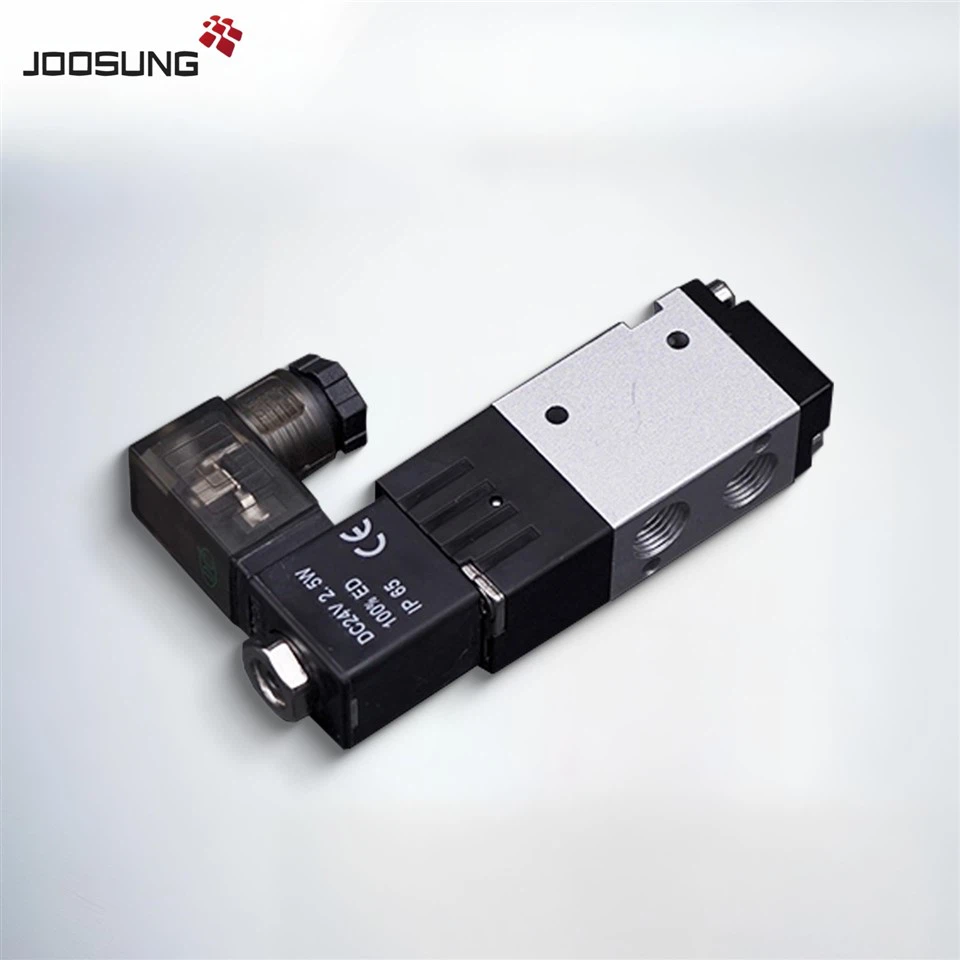

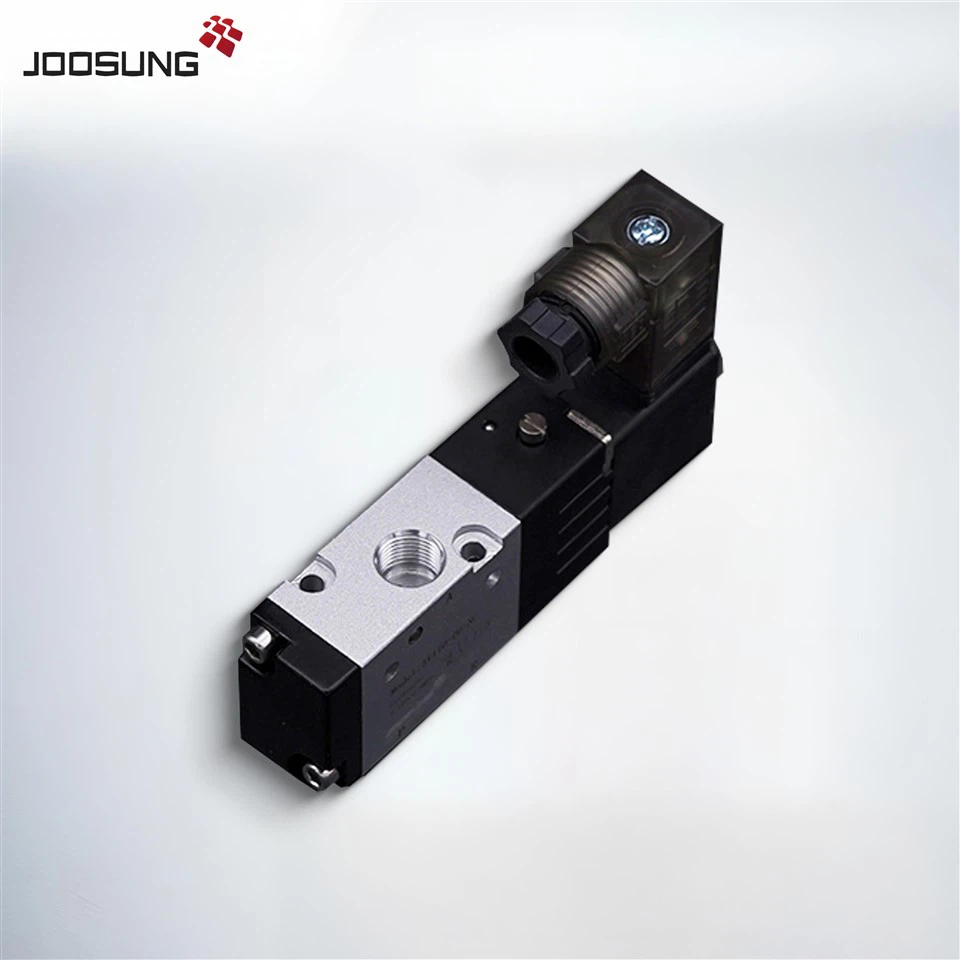

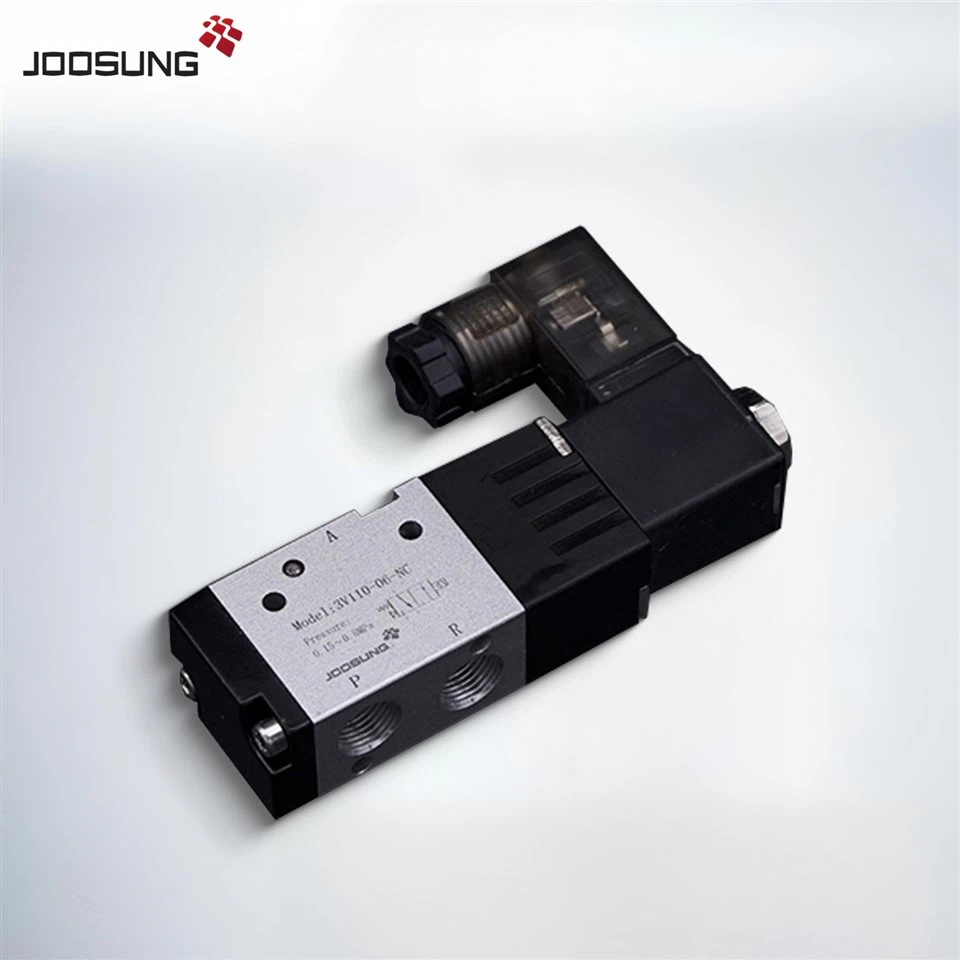

3V100 series pneumatic solenoid valves are widely used for precise control of air flow in pneumatic automation systems. Featuring a compact body and 3/2 way design, these valves are ideal for space-saving applications where reliable switching and quick response are required. As a professional pneumatic supplier in China, we offer original AIRTAC 3V100 series valves with competitive local prices and stable sourcing channels to support your automation projects worldwide.
|
How to Order 3V100 Series Pneumatic Solenoid Valve |
||||||||
|
3V 1 10 06 NO A □ □ |
||||||||
|
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ |
||||||||
|
①Model |
②Code |
③Type |
④Port size |
⑤Acting type |
⑥Standard voltage |
⑦Electrical entry |
⑧Thread type |
|
|
3V:Solenoid |
1:100 Series |
10:Single solenoid |
M5:M5 |
NC:Normally |
A:AC220V |
Blank:Terminal |
M5 |
1/8" |
|
一 |
Blank:PT |
|||||||
|
20:Double solenoid |
No this code |
|||||||
Please contact us today for full product specifications, technical documentation, and competitive quotes on 3V100 series solenoid valves to enhance your automation systems.
3V100 Series Pneumatic Solenoid Valve Technical Parameters
|
3V100 Series Pneumatic Solenoid Valve Key Specifications |
||||
|
Model |
3V110-M5 |
3V120-M5 |
3V110-06 |
3V120-06 |
|
Fluid |
Air(to be filtered by 40μm filter element) |
|||
|
Acting |
lnternalpilot or external pilot |
|||
|
Port size [Note1] |
M5 |
1/8" |
||
|
Orifice size(Cv)[Note3] |
3V110-06,3V120-06:10.2mm²(Cv=0.6) |
|||
|
Valve type |
3 port2 position |
|||
|
Lubrication [Note2] |
Not required |
|||
|
Operating pressure |
0.15~0.8MPa(21~114psi) |
|||
|
Proof pressure |
1.2MPa(175psi) |
|||
|
Temperature |
-20~70℃ |
|||
|
Material of body |
Aluminum alloy |
|||
