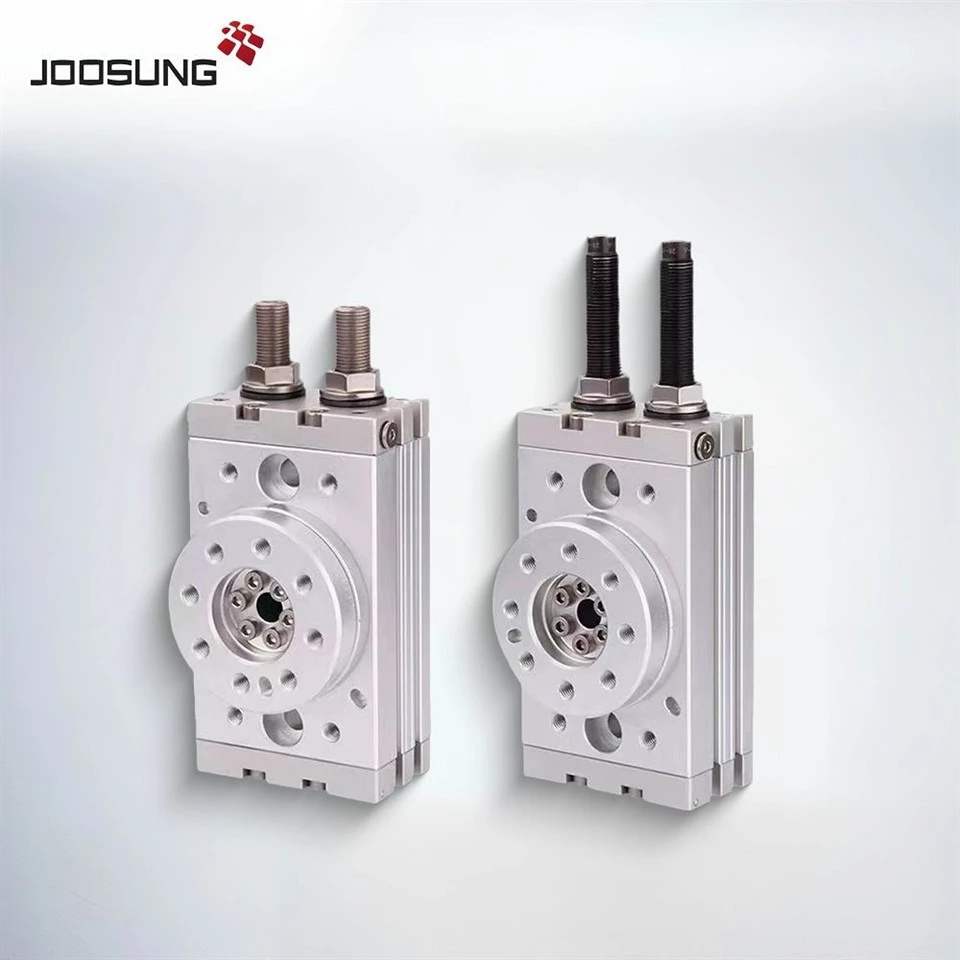

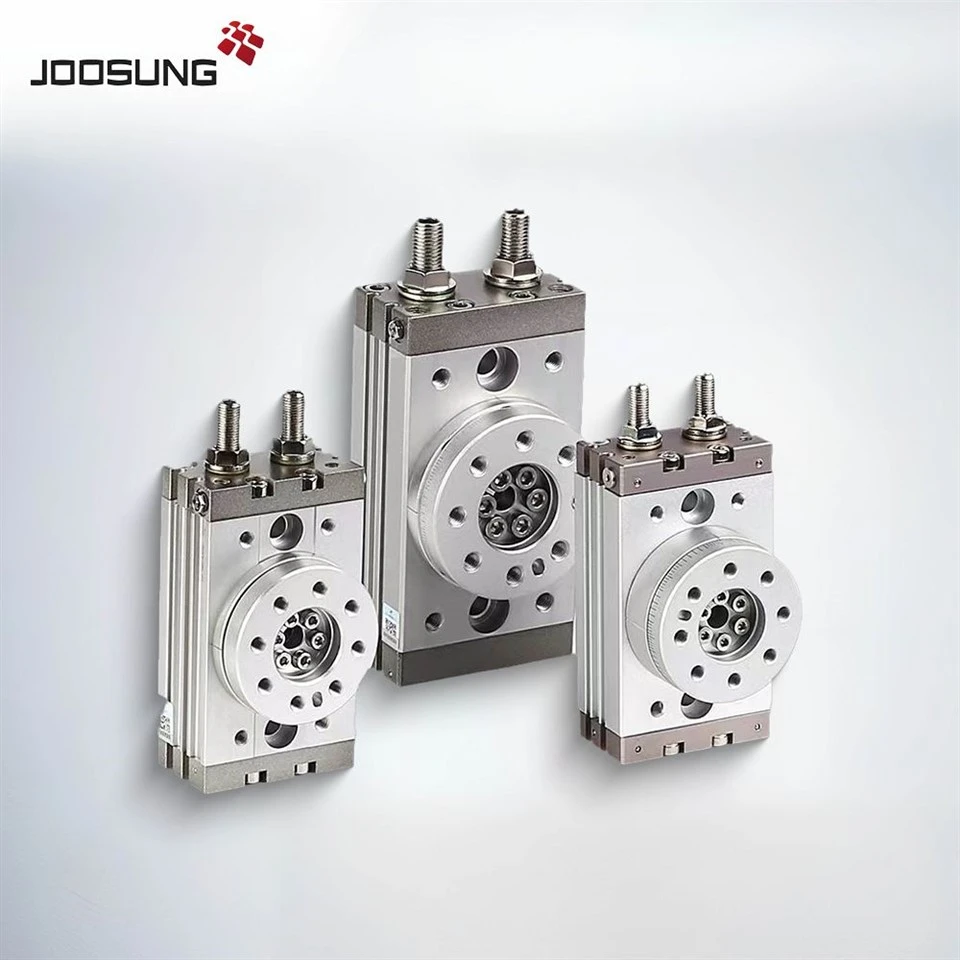

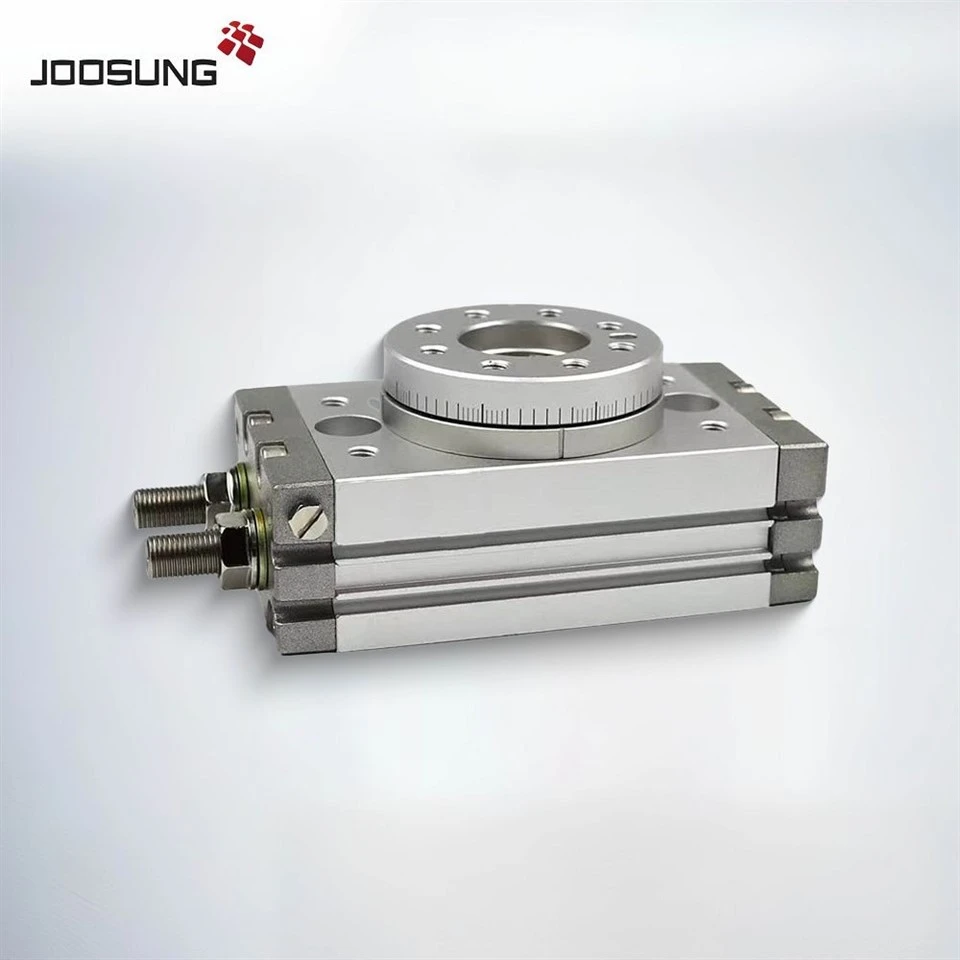

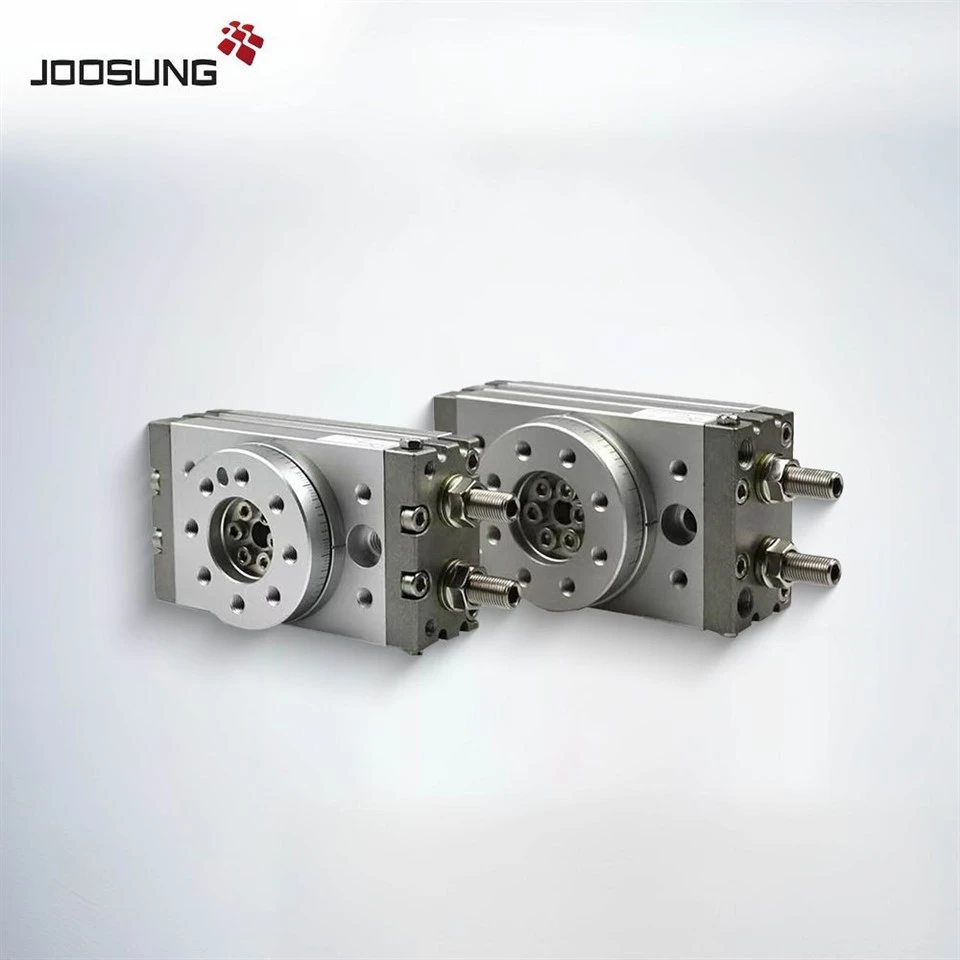

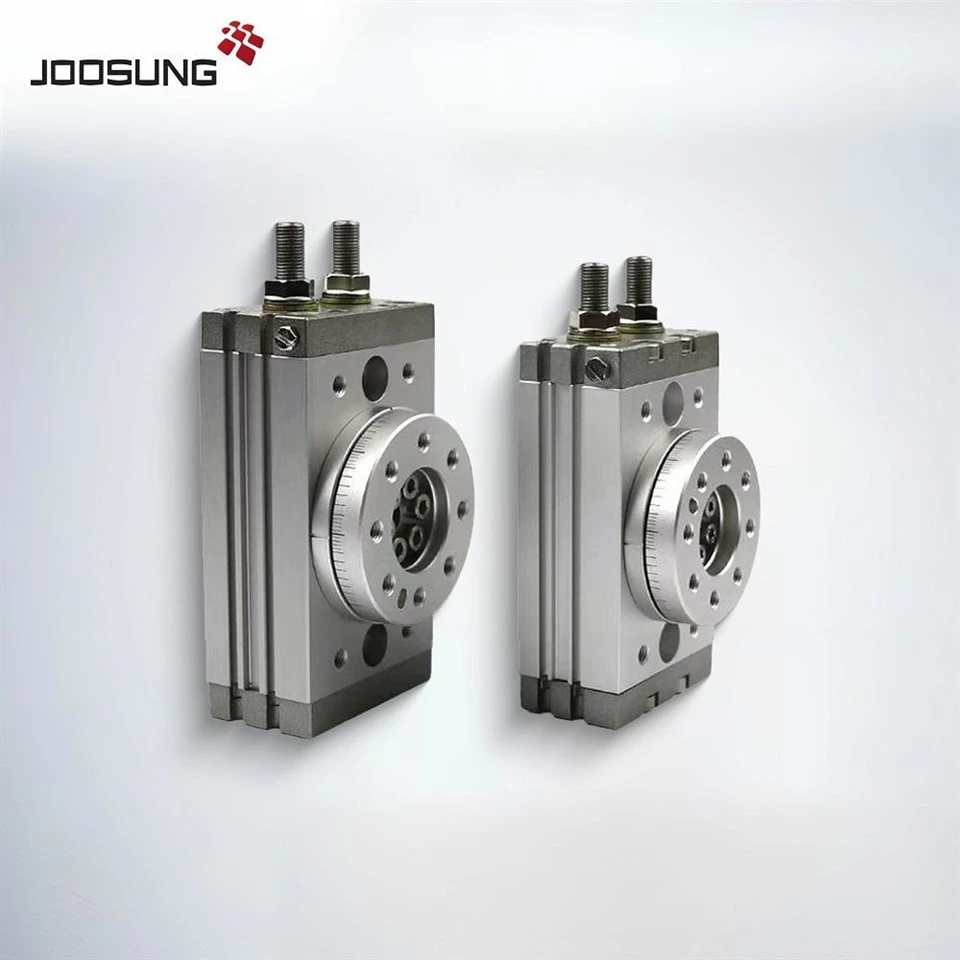

The MSQ series rotary table cylinder is a compact, precision-engineered pneumatic rotary actuator designed for indexing, pick-and-place, turning, and rotating applications in space-constrained automation environments. It utilizes a rack-and-pinion gear mechanism with dual guide bearings to ensure accurate rotation, high torque, and excellent load capacity.
Built with integrated angle adjustment stops (0° to 190° adjustable), the MSQ series supports precise rotation control without the need for external stoppers. The hollow shaft design enables wire or tubing passthrough, ideal for gripper-mounted end effectors in robotics or linear-motion systems.
|
How to Order MSQB Series Pneumatic Cylinder |
||
|
MSQB |
10 |
A |
|
Type |
Size |
|
|
MSQA:High precision type |
1,2,3,7,10,20,30,50 |
A:With adjustment bolt |
|
MSQB:Basic type |
1,2,3,7,10,20,30,50,70,100,200 |
R:With internal shock absorber |
Get a Quote for MSQB Series Now
Upgrade your automation system with the MSQB Series Rotating Pneumatic Cylinder - engineered for smooth, accurate rotation and compact performance.
OEM service, fast delivery, and full technical support available for global customers.
Visit our website:
www.joosungauto.com
Email: carson@joosungauto.com
WhatsApp: +86 153 9708 8192
#MSQB #RotaryActuator #RotatingPneumaticCylinder #CompactRotaryCylinder #IndustrialAutomation #JoosungAuto #OEMPneumatics
|
Specification |
||||||||
|
Bore(mm) |
10 |
20 |
30 |
50 |
70 |
100 |
200 |
|
|
Operation Fulid |
Air(Non-lub) |
|||||||
|
Operation |
Double Acting |
|||||||
|
Max.Operation |
With ange adjustng screw |
1MPa |
||||||
|
With hydralicCushion |
0.6MPa |
|||||||
|
Min.Operation Pressure |
0.1MPa |
|||||||
|
Ambient and fluid temperature |
0~60℃ |
|||||||
|
Cushion |
Rubber Buffer(Standard)/Hydralic Cushion device(Optional) |
|||||||
|
Function |
With angle adjusting screw |
0.007J |
0.025J |
0.048J |
0.081J |
0.24J |
0.32J |
0.56J |
|
With hydralicCushion |
0.039J |
0.116J |
0.294J |
1.1J |
1.6J |
2.9J |
||
|
Angle adjusting range |
0~190° |
|||||||
|
Max.rotating angle |
190° |
|||||||
|
Steady rotating |
With angle adjustng screw |
0.2~1.0s/90° |
0.2~1.5s/90° |
0.2~2.0s/90° |
0.2~2.5s/90° |
|||
|
With hydralicCushion |
0.2~0.7s/90° |
0.2~1.0s/90° |
||||||
|
Bore |
φ15 |
φ18 |
φ21 |
φ25 |
φ28 |
φ32 |
φ40 |
|
|
Port Size |
M5×0.8 |
Rc1/8 |
||||||
|
Max.operation pressure is subject to the Max.load of hydraulic Cushion device. |
||||||||
Key Advantages of MSQB Series Rotating Pneumatic Cylinder
The MSQB Series Rotating Pneumatic Cylinder provides smooth and precise rotary motion, suitable for automated positioning tasks.
Compact and lightweight design makes the MSQB Series Rotating Pneumatic Cylinder easy to integrate into space-constrained equipment.
Adjustable rotation angles (e.g., 90°, 180°, 270°) allow flexible motion control with high repeatability.
The MSQB Series Rotating Pneumatic Cylinder offers direct load mounting with high torsional rigidity.
Low-maintenance, long-life rotary actuator ideal for continuous operation environments.
Available Models：
MSQB-10A, MSQB-20A, MSQB-30A, MSQB-50A, MSQB-70A, MSQB-100A, MSQB-200A
MSQB-10R, MSQB-20R, MSQB-30R, MSQB-50R,MSQB-70R, MSQB-100R, MSQB-200R
Hot Tags: msq series rotary table pneumatic cylinder, China, suppliers, manufacturers, factory, custom, wholesale
