Why CQ2 Defines Compact Automation?

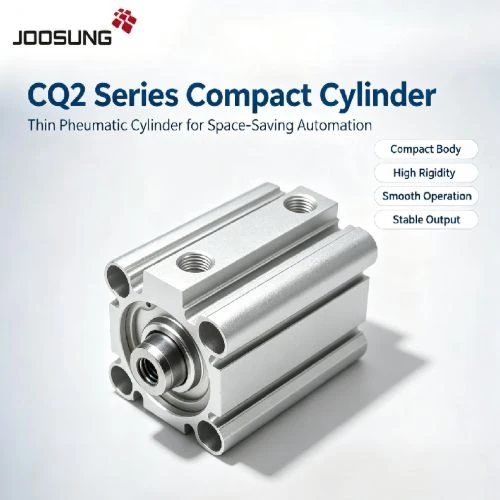

Regarding to industrial automation, space is a premium commodity. The CQ2 Series Compact Cylinder stands as the industry standard for applications where high performance must meet a minimal footprint. As a cornerstone of pneumatic systems, the CQ2 series is engineered to provide reliable linear motion in the most restricted environments, making it the top choice for automated jigs, compact modules, and precision machinery.
The primary advantage of the CQ2 series is its ultra-compact profile. Compared to traditional tie-rod cylinders, the overall length of the CQ2 is reduced by over 30%, and its weight is decreased by 5% to 13%. This allows engineers to achieve extreme light-weighting and miniaturization in equipment design.
Meanwhile, the CQ2 cylinders feature an integrated body design where auto-switches (magnetic sensors) can be mounted on all four sides (depending on the model). The sensors are recessed into the body, ensuring zero protrusion from the cylinder's outer profile. This enables side-by-side mounting without interference, further compressing the machine size.
Moreover, the cylinder body is treated with hard anodic oxidation for superior wear and corrosion resistance. The piston rod is hard-chrome plated and ground to a mirror finish to ensure smooth operation and long seal life. And also standard internal bumpers absorb kinetic energy at the end of the stroke, reducing noise and impact vibration.
Wenzhou Qiaosen Pneumatic Co., Ltd. is a professional manufacturer and solution provider in the field of high-quality pneumatic components. With decades of expertise in the R&D and production of air cylinders, solenoid valves, and air preparation units, Joosung is committed to delivering precision-engineered products that meet international standards. Please contact Wenzhou Qiaosen Pneumatic Co., Ltd. today for professional technical support and competitive wholesale pricing.
